Replacement
Adjustment
LASER UNIT
SM 3-19 B039/B040/B043

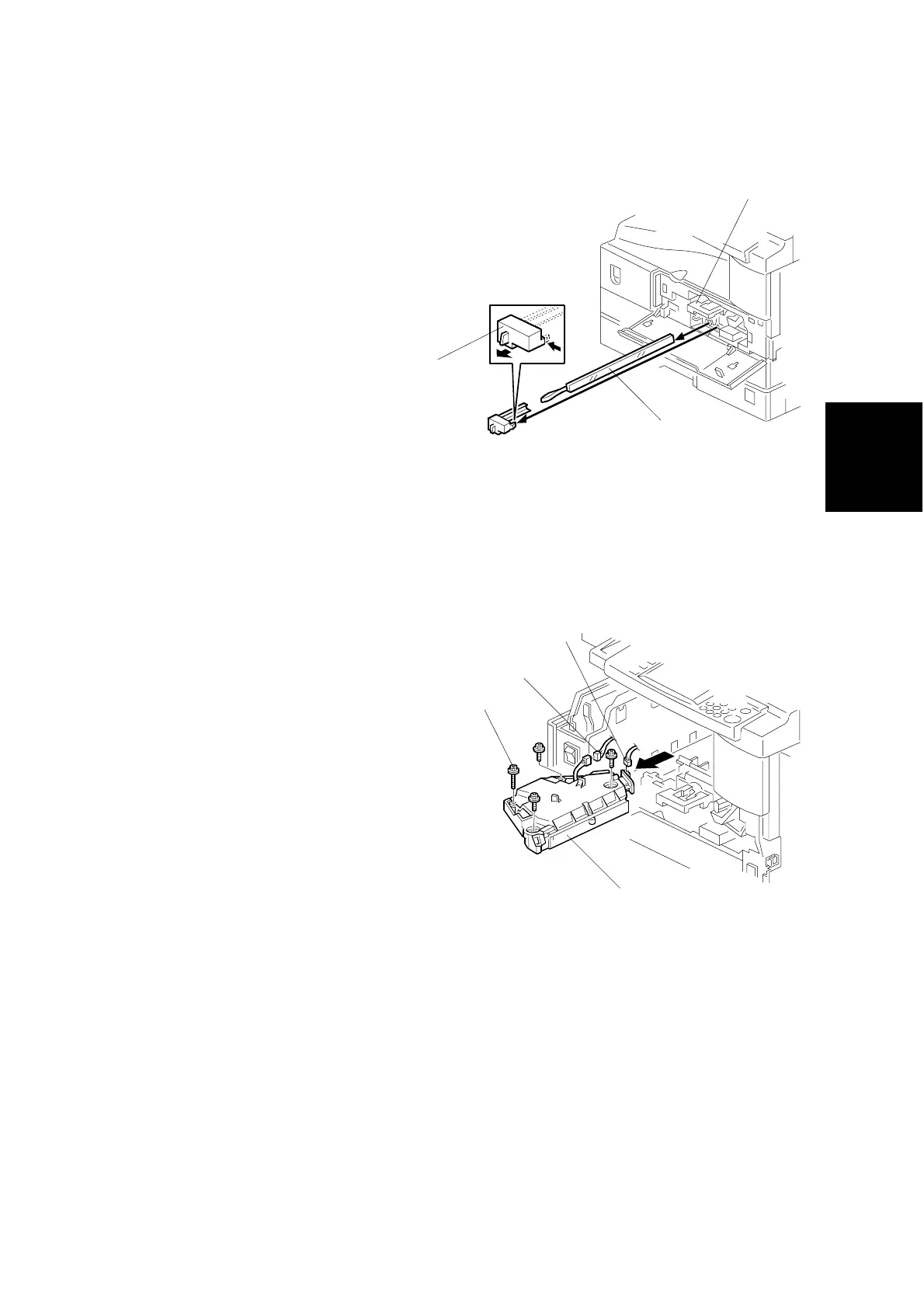

3.5.2 TONER SHIELD GLASS
1. Open the front door.
2. Lift the toner cartridge latch [A].
3. Press the toner shield glass cover [B]
to the left and pull it out.
4. Pull out the toner shield glass [C].
3.5.3 LASER UNIT
1. Toner shield glass. (☛ 3.5.2)
2. Copy tray (☛ 3.3.3)
3. Pull out the (upper) paper tray.
4. Front long cover (☛ 3.3.9)
5. Disconnect the harness [D, E].
6. Laser unit [F] (! x 4)
NOTE: The screw at the left front
position [G] is longer than the
others.
B039R151.WMF
B039R153.WMF
[B]
[C]
[A]
[F]
[G]
[D]
[E]
