Ricoh B039 - By-Pass Tray

Detailed
Descriptions
PAPER FEED
SM 6-55 B039/B040/B043
By-pass Tray

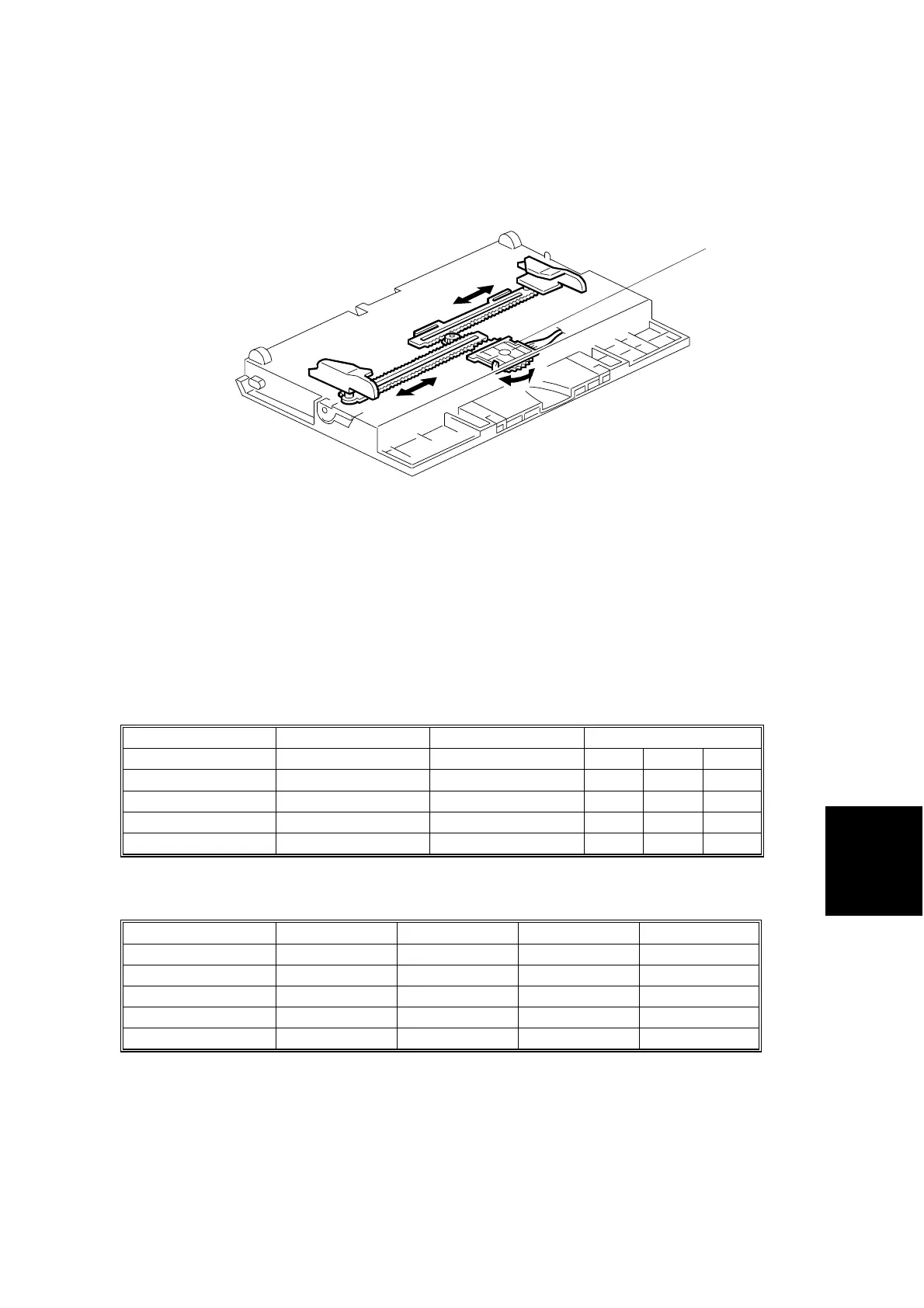

The by-pass feed paper width sensor [A] monitors the paper width. The side fence
is connected to the terminal plate gear. When the side fences move to match the
paper width, the circular terminal plate rotates over the wiring patterns on the
rectangular part of the width sensor. The patterns for each paper width on the
paper width detection sensor are unique.
North America
CN No. (IOB) 11" x 17" 8
1/2
" x 11" 5
1/2
" x 8
1/2
"
CN311-1 ON/OFF OFF OFF OFF OFF
CN311-2 OFF OFF OFF ON OFF
CN311-3 (GND) OFF OFF OFF OFF OFF
CN311-4 OFF ON OFF OFF ON
CN311-5 ON ON OFF OFF OFF
Europe/Asia
CN No. (IOB) A3 A4 SEF 8" x 13" A5 SEF
CN311-1 ON/OFF OFF OFF OFF
CN311-2 OFF OFF OFF ON/OFF
CN311-3 (GND) OFF OFF OFF OFF
CN311-4 OFF ON ON OFF
CN311-5 ON ON OFF OFF
B039D710.WMF
[A]
