Ricoh B039 - Registration Roller

Replacement
Adjustment
PAPER FEED SECTION
SM 3-31 B039/B040/B043
3.8.6 REGISTRATION ROLLER
1. PCU (☛ 3.6.1)
2. Front long cover (☛ 3.3.9)
3. Right door (☛ 3.3.12)
4. Rear cover (☛ 3.3.1)
5. High-voltage power supply (☛ 3.12.2)
6. Registration clutch (☛ 3.8.8)

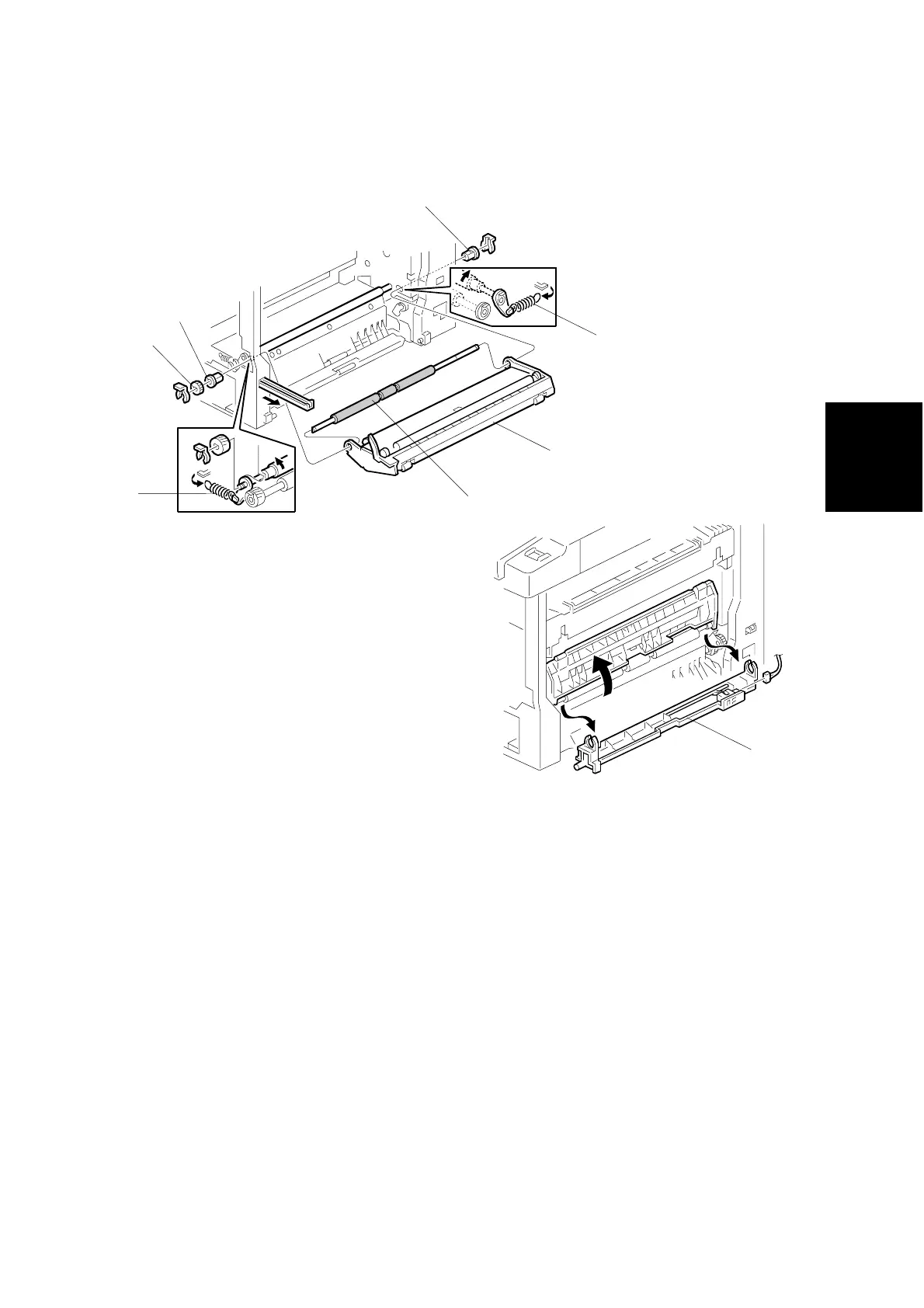

7. Unhook the springs [A] and [B] at the rear and front sides.
8. Guide [C] (! x 1, " x 1)
9. Bushing [D] (# x 1)
10. Gear [E] and bushing [F] (# x 1)
11. Registration roller [G] with the image transfer unit [H]
B039R951.WMF
B039R950.WMF
[A]
[B]
[D]
[H]
[G]
[C]
[E]
[F]
