Installation
ANTI-CONDENSATION HEATER INSTALLATION
SM 1-21 B039/B040/B043
1.10 ANTI-CONDENSATION HEATER INSTALLATION
1. Remove the exposure glass (☛ 3.4.1).
2. Remove the left cover (☛ 3.3.8).
3. Pass the connector [A] through the opening [B].
4. Install the anti-condensation heater [C], as shown.
5. Join the connectors [A, D].
6. Clamp the harness with the clamp [E].
7. Reinstall the left cover and exposure glass.

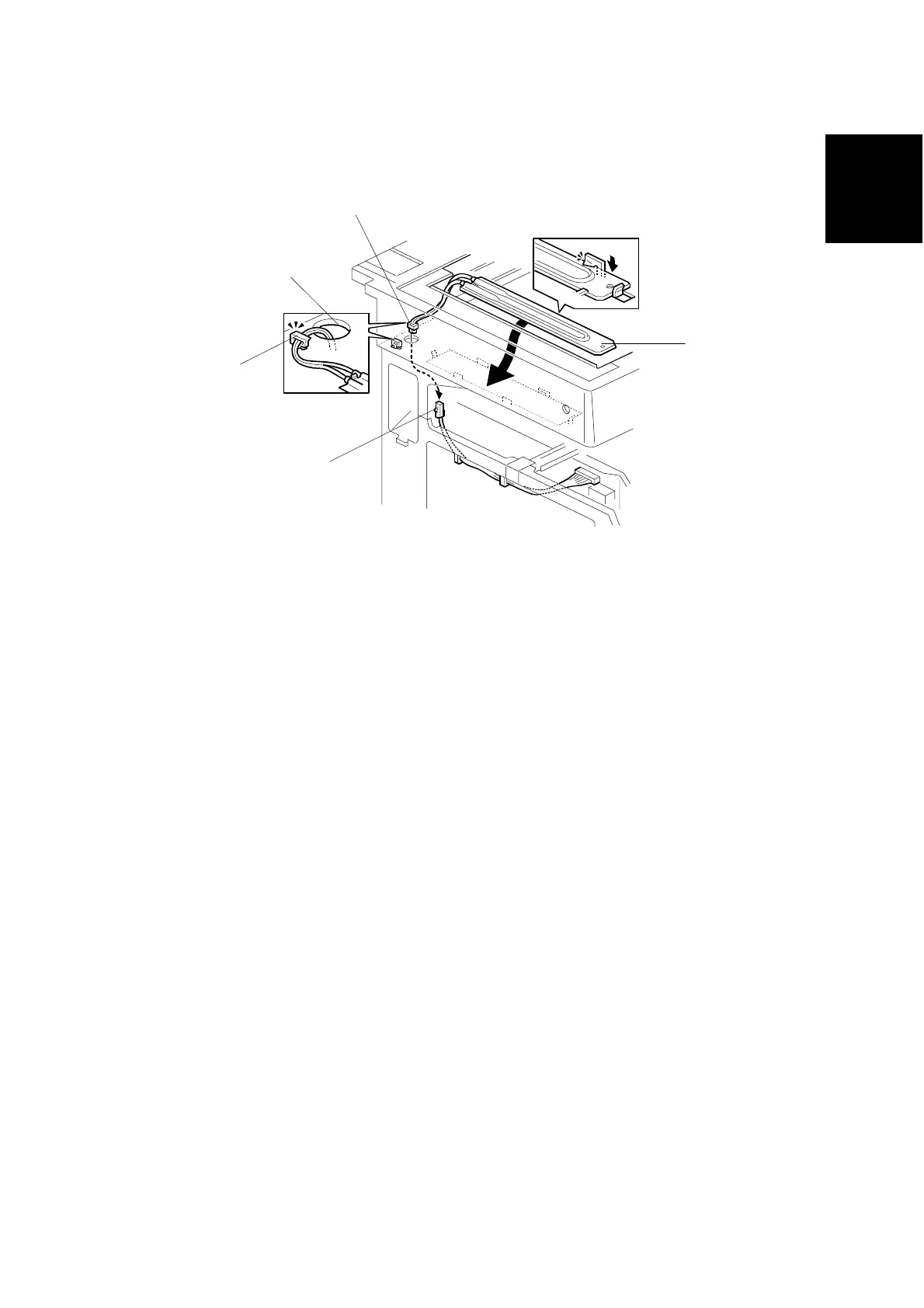

B039I127.WMF
