EXTERIOR COVERS
B387 8-14 SM
3. REPLACEMENT AND ADJUSTMENT
3.1 EXTERIOR COVERS
3.1.1 REAR COVER
1. Lift the DF.

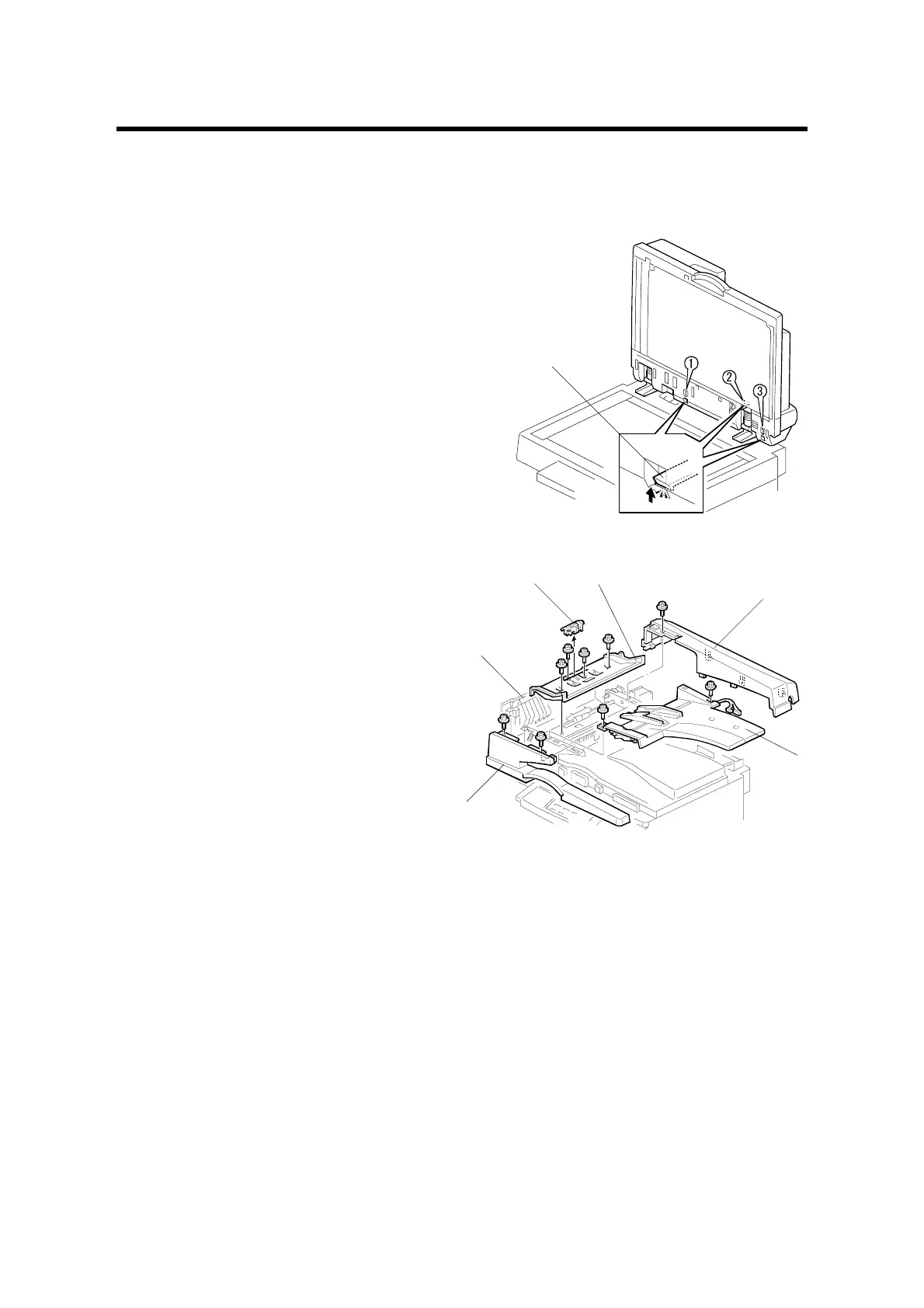

2. Unhook the three latches [A] in the
order marked on the DF body.
3. Close the DF.
4. Open the DF feed cover [B].
5. Rear cover [C] (! x 1)
1.1.2 ORIGINAL TABLE
1. Rear cover (☛ 3.1.1)
2. Original table [D] (! x 2, " x 2)
1.1.3 FRONT COVER
1. Open the DF feed cover [B].
2. Original table. (☛ 1.1.2)
3. Front cover [E] (! x 2)
1.1.4 ORIGINAL ENTRANCE GUIDE
1. Feed unit (☛ 1.2)
2. Original table (☛ 1.1.2)
3. Roller cover [F]
4. Original entrance guide [G] (! x 4)
B387R120.WMF
B387R106.WMF
[A]
[F]
[E]
[D]
[C]
[B]
[G]
