Ricoh B039 - Paper End Sensor Replacement; Paper Size Switch Replacement

Paper Tray
Unit
B385
PAPER END SENSOR REPLACEMENT
SM 10-15 B385

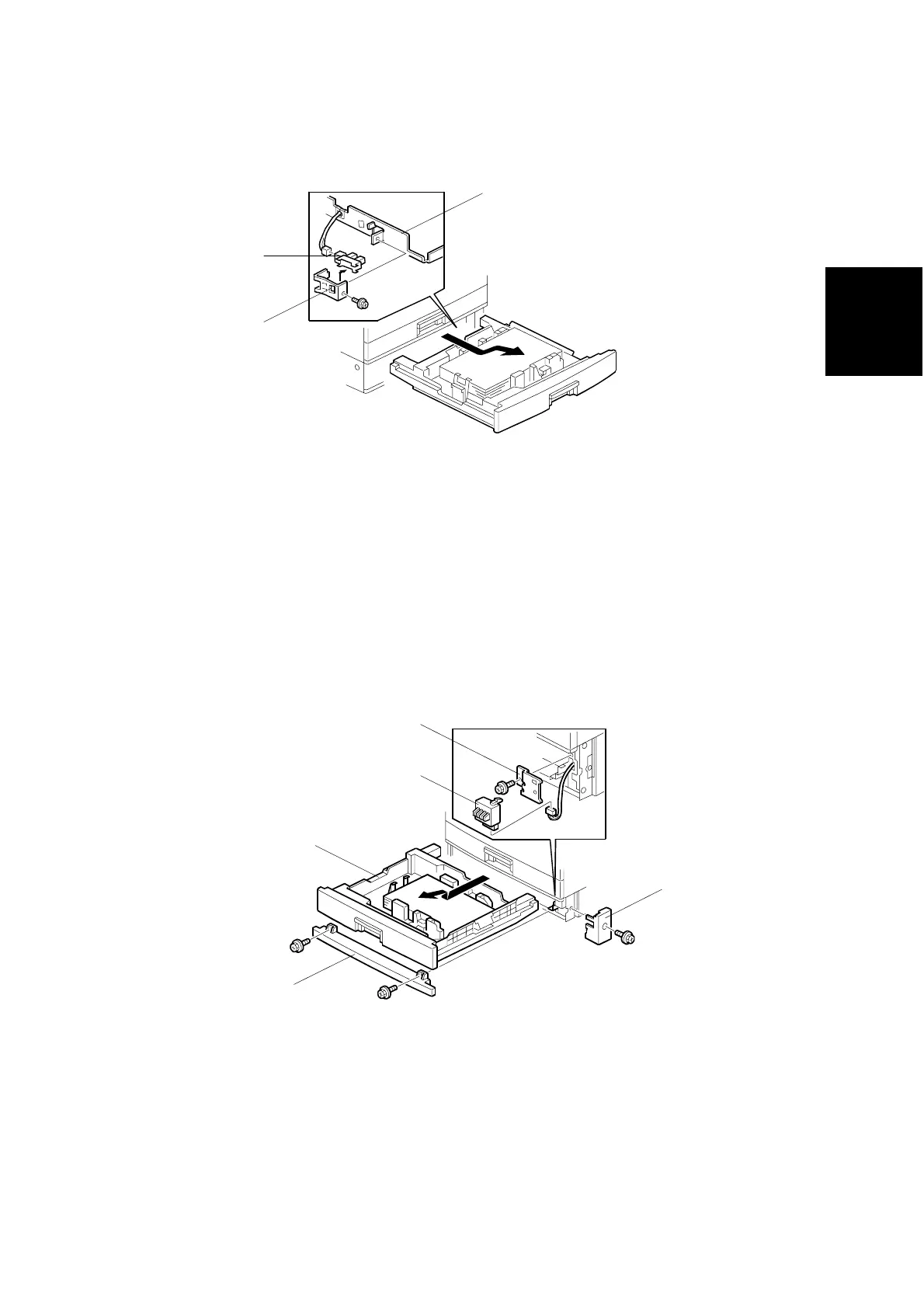

3.5 PAPER END SENSOR REPLACEMENT
1. Paper tray
2. [A] Paper end sensor bracket (! x 1, " x 1)
3. [B] Paper end sensor
NOTE: After replacing the sensor, pull the sensor cable to the right side of the
frame [C] so that the cable does not touch the paper in the tray.
3.6 PAPER SIZE SWITCH REPLACEMENT
1. [A] Lower tray cover (! x 2)
2. [B] Paper tray
3. [C] Right front cover (! x 1)
4. [D] Paper size switch bracket (! x 1)
5. [E] Paper size switch (" x 1)
B385R106.WMF
B385R101.WMF
[C]
[A]
[B]
[C]
[D]
[E]
[B]
[A]
