Ricoh B039 - Duplex Transport Motor; Duplex Inverter Motor; Duplex Control Board

Replacement
Adjustment
DUPLEX UNIT (DUPLEX MODELS ONLY)
SM 3-43 B039/B040/B043

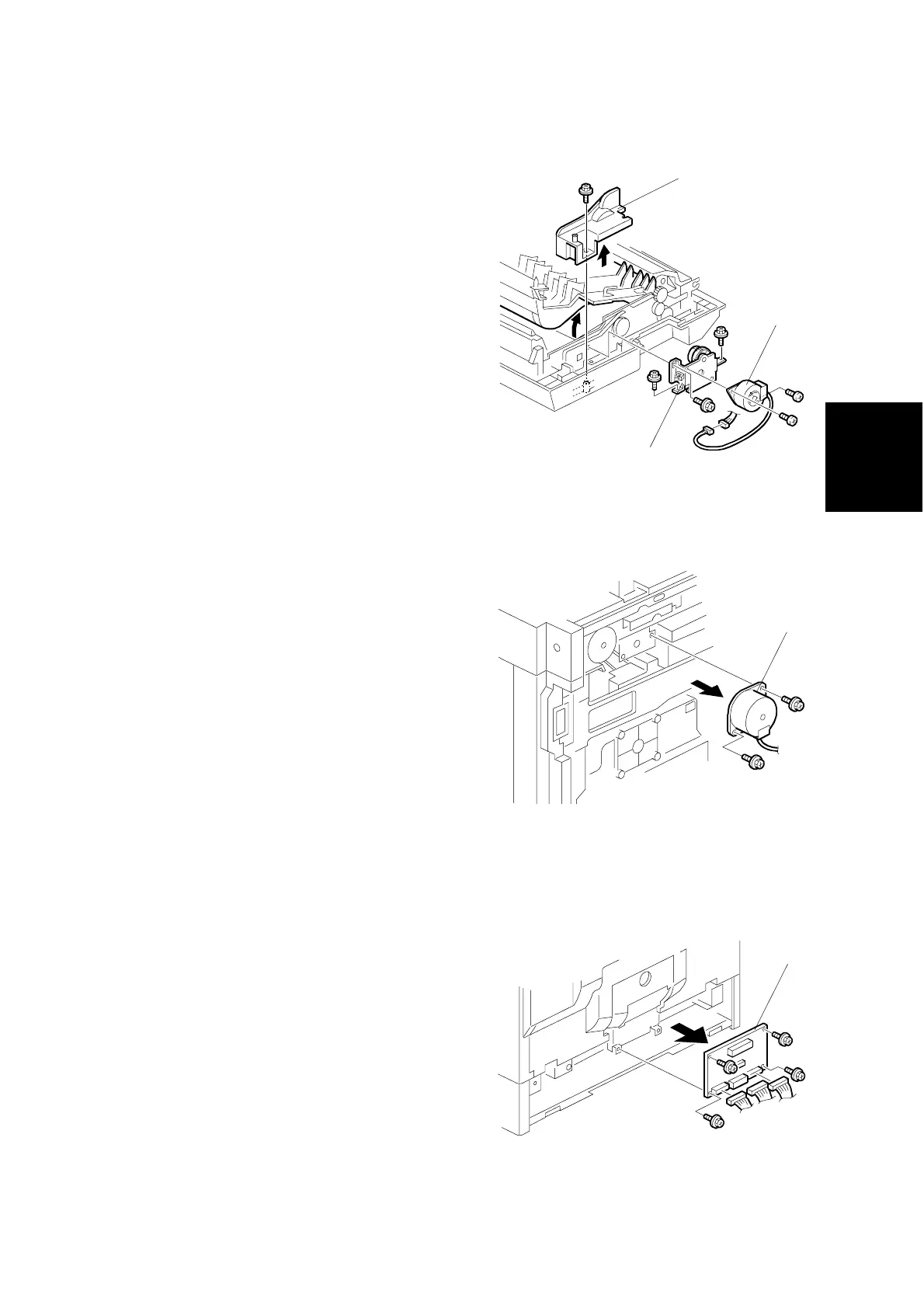

3.11.4 DUPLEX TRANSPORT MOTOR
1. Open the right door, detach the strap
from the main body ( x 1), and lower
the door.
2. Cover [A] ( x 1)
3. Open the two clamps securing the
motor cable, and remove the motor
bracket [B] ( x 3,  x 1).
4. Remove the duplex transport motor [C]
( x 2).
3.11.5 DUPLEX INVERTER MOTOR
1. Rear cover
2. Exhaust fan (☛ 3.12.7)
3. Duplex inverter motor [D] ( x 2,
 x 1)
3.11.6 DUPLEX CONTROL BOARD
1. Rear lower cover (☛3.3.2)
2. Duplex control board [E] ( x 4 , all
connectors)
B039R946.WMF
B039R941.WMF
B039R132.WMF
[D]
[E]
[A]
[C]
[B]
