PAPER SIZE SWITCH REPLACEMENT

B384 9-18 SM

3.10 PAPER SIZE SWITCH REPLACEMENT

1. Upper and lower paper trays

2. [A] Inner cover (! x 2)

3. [B] Paper size switch (" x 1)

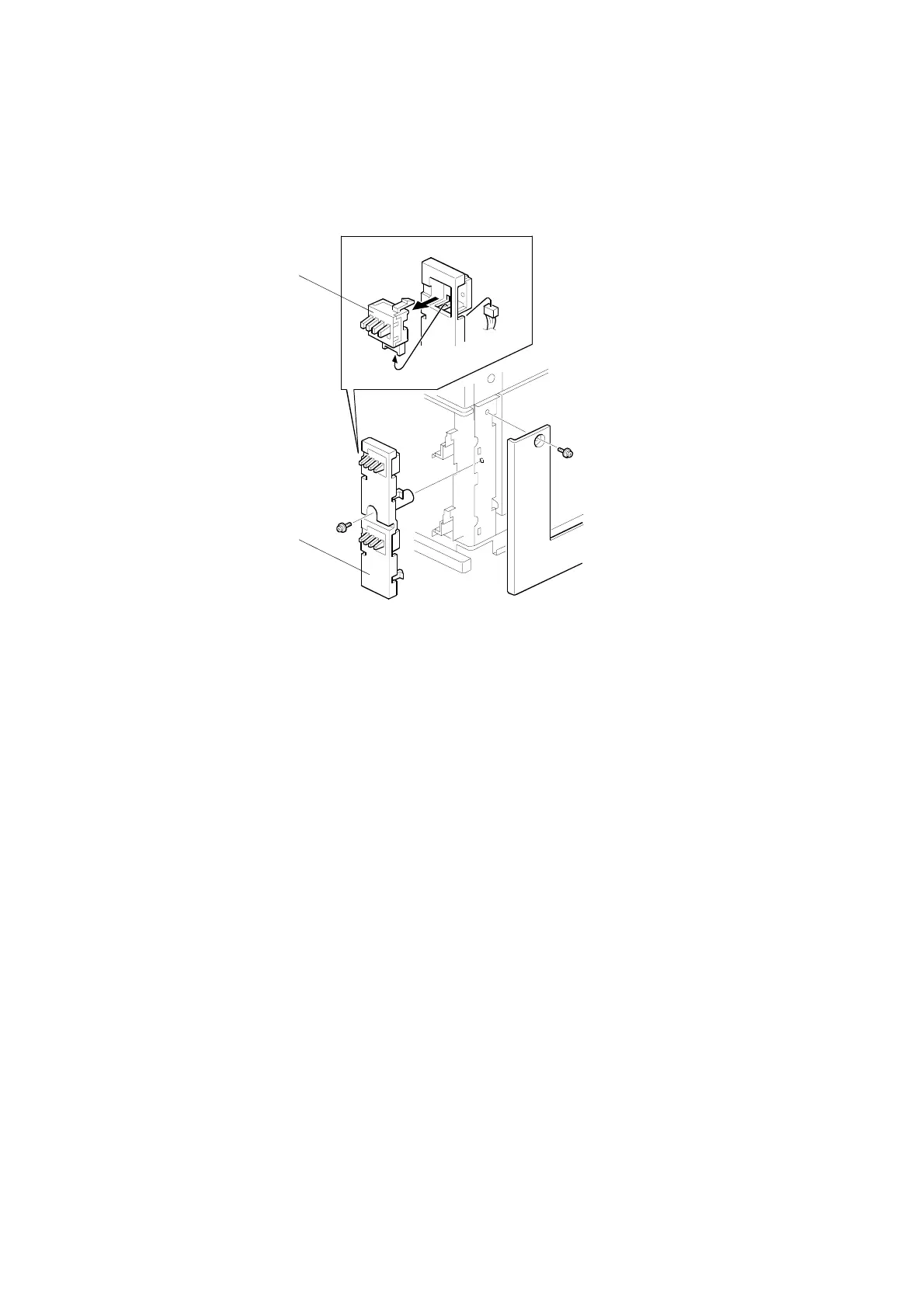

B384R108.WMF

[B]

[A]
