LIFT MOTOR REPLACEMENT
B384 9-16 SM
3.7 LIFT MOTOR REPLACEMENT
1. Pull out the paper tray.
2. [A] Rear cover (! x 5)
3. [B] 2P connector
4. [C] Spring
5. [D] Lift motor unit (! x 3)
6. [E] Lift motor (! x 3)

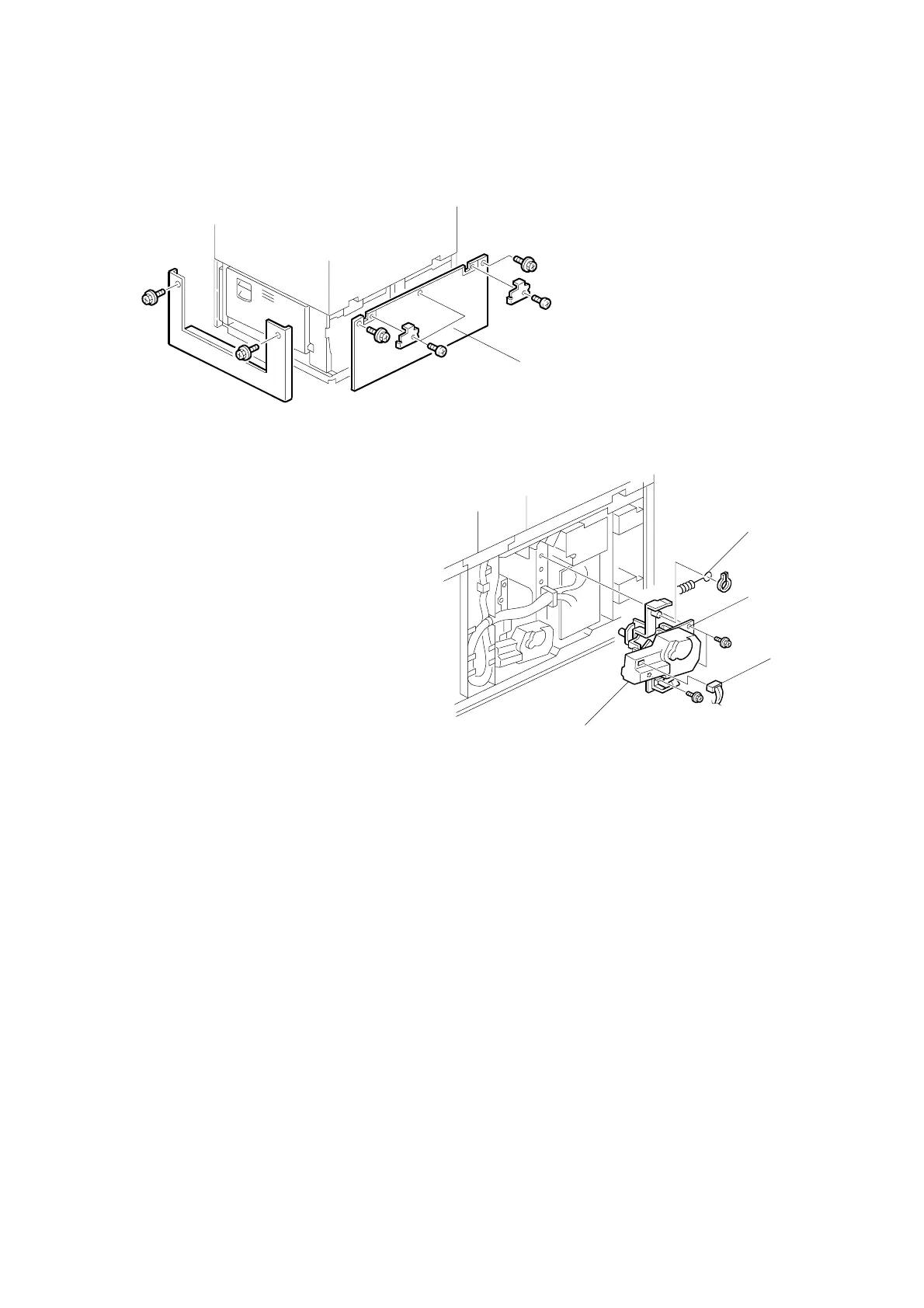

B384R101.WMF
B384R104.WMF
[A]
[B]
[D]
[C]
[E]
