3.8.4 EXIT SENSOR
Non-duplex Models
1. Open the right door.
2. Front right cover (☛ 3.3.10)
3. Guide [A] (! x 2)
4. Exit sensor [B] (" x 1)
Duplex Models
1. Open the right door.
2. Front right cover (☛ 3.3.10)
3. Lower guide [C] (! x 2)
4. Upper guide [D] (! x 2)
5. Exit sensor [E] (" x 1)

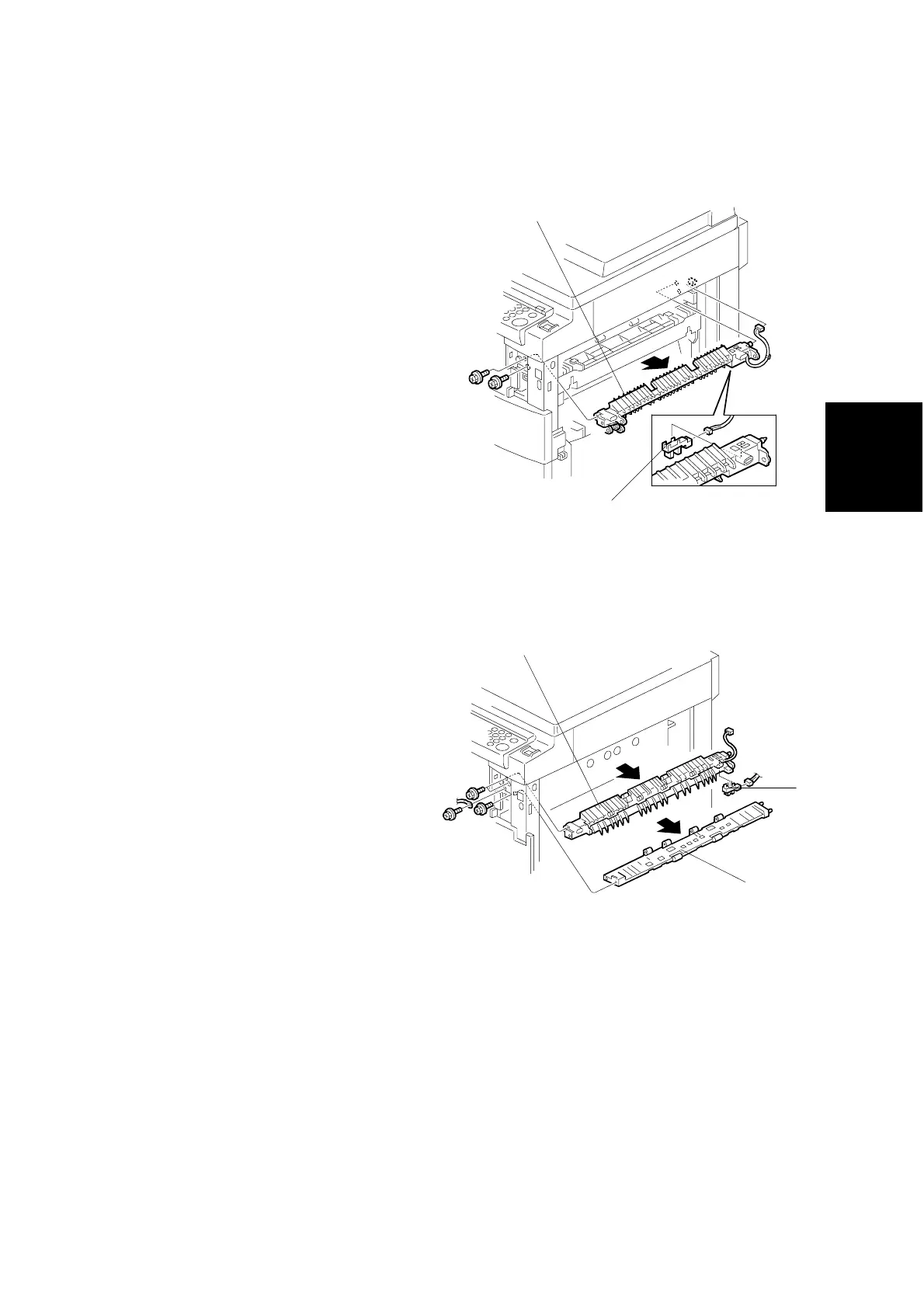

B039R601.WMF
B039R945.WMF
[B]
[A]
[E]
[C]
[D]
