4.Replacement and Adjustment
106

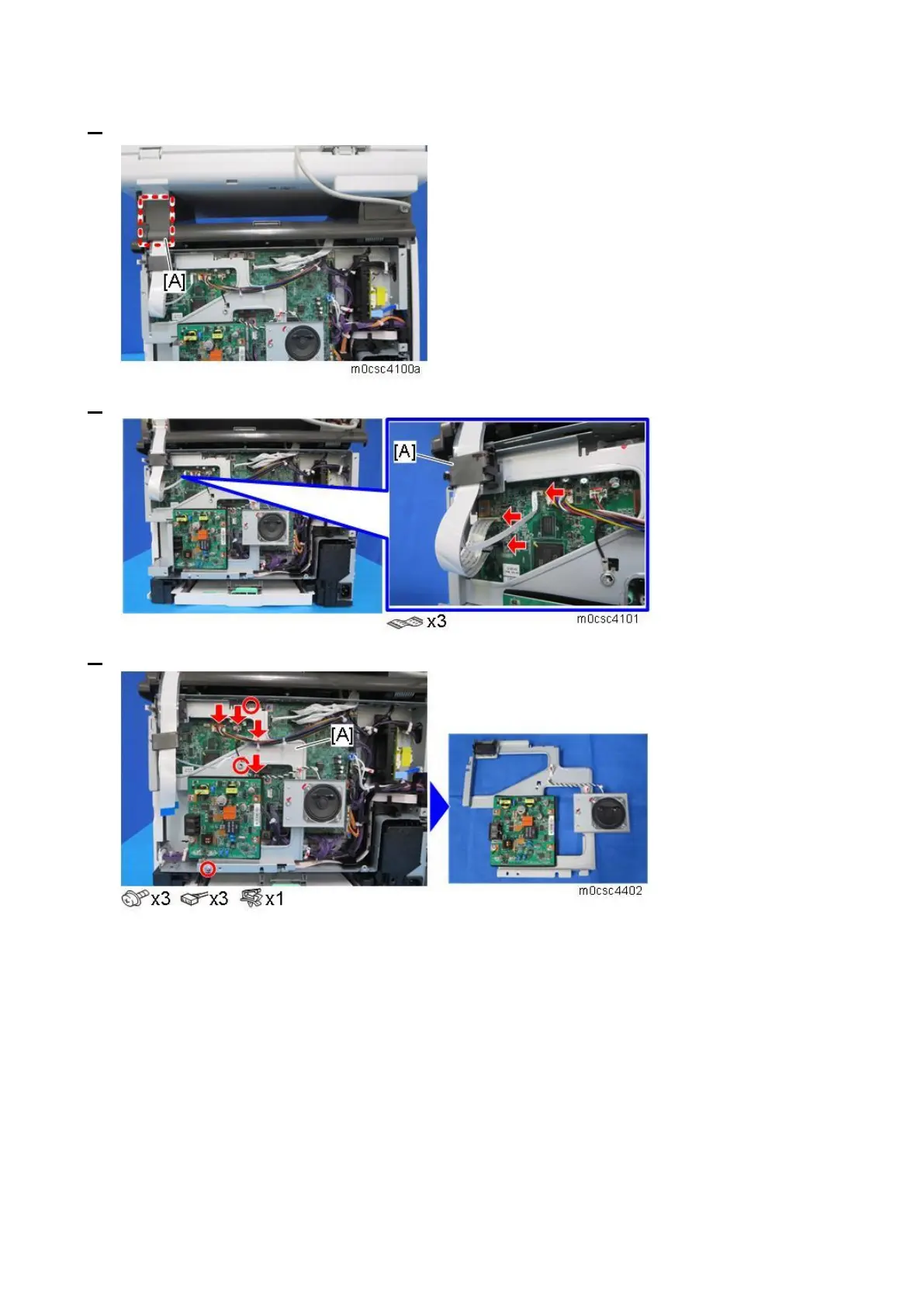

4. On the MF model only, remove the left stand cover [A].
5. On the MF model only, disconnect the three FFCs and pull out from the ferrite core [A].
6. On the MF model only, remove the FCU assembly [A].
