4.Replacement and Adjustment
115

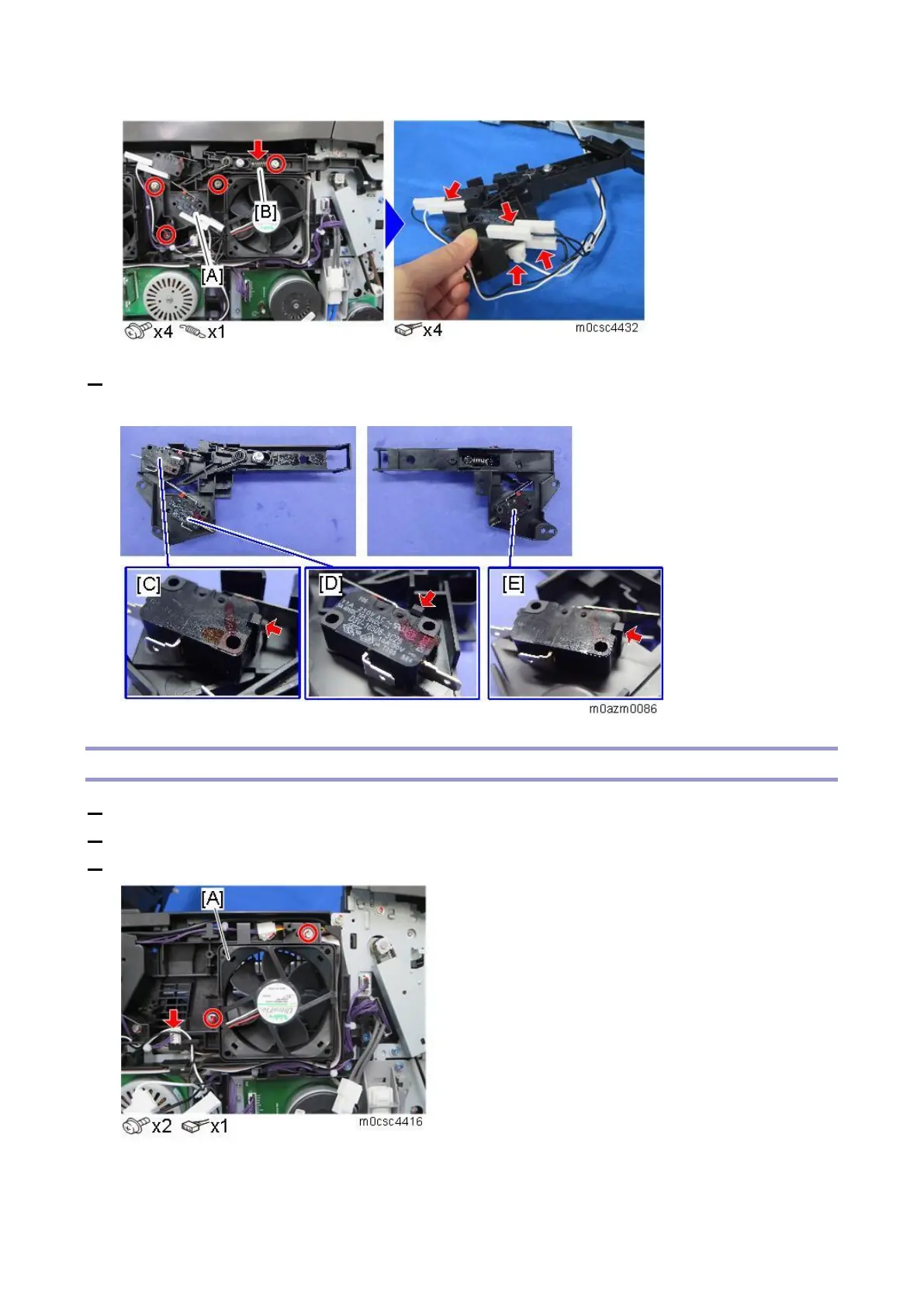

3. Remove the interlock switch 2 (SW2) [C] and interlock switch 3 (SW3) [D] at the outside of the
base, and then remove the interlock switch 1 (SW1) [E] at the inside of the base.
Fusing Fan (FAN2)
1. Remove the left cover. (Left Cover)
2. Remove the interlock switch base. (Interlock Switches (SW1/SW2/SW3))
3. Remove the fusing fan base [A].
