7.Detailed Descriptions
264

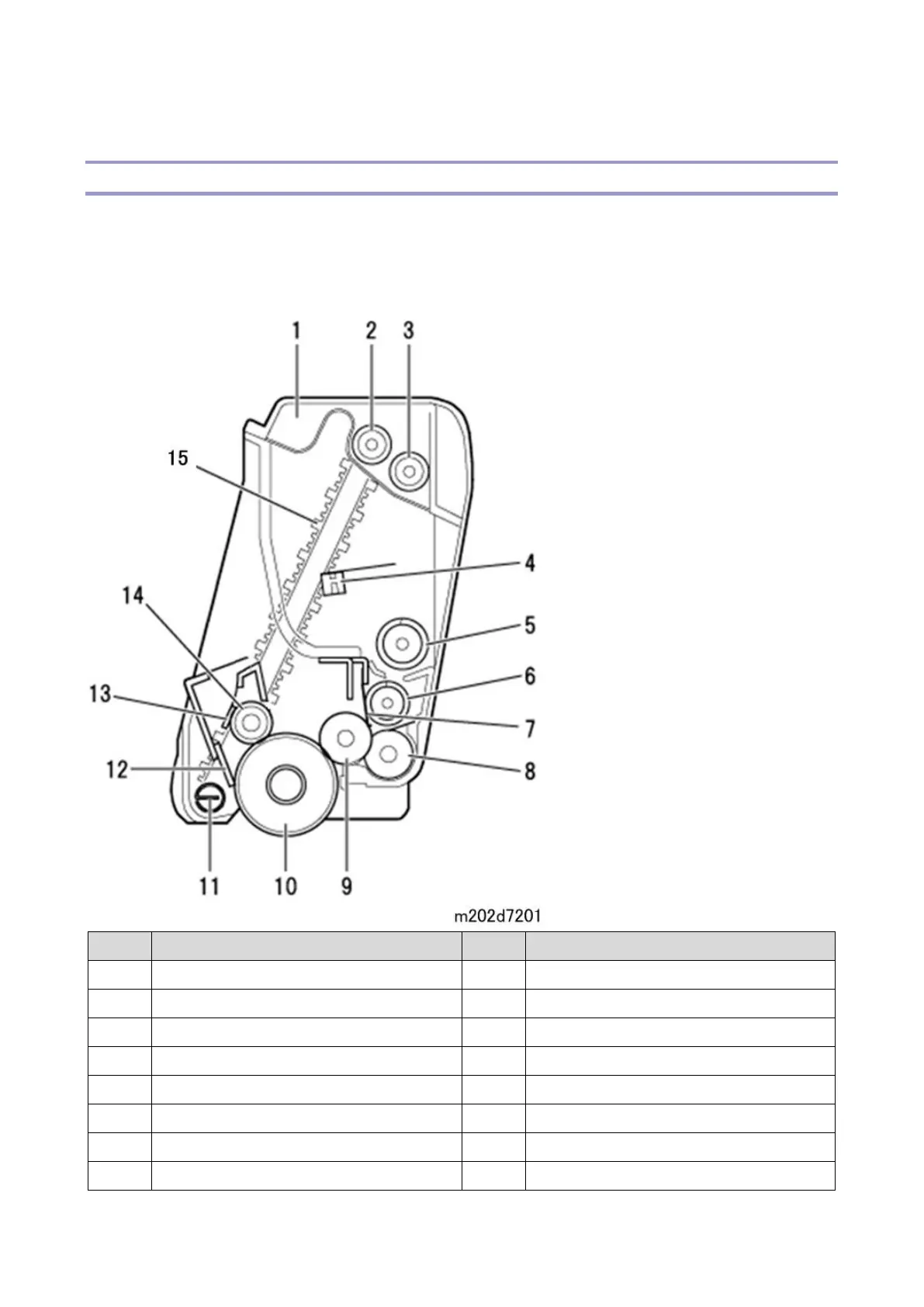

AIO Cartridge
Overview
This machine uses the AIO (All In One) system. Each AIO consists of the waste toner tank, print
cartridge part, development unit part, and OPC part. This gives the user easy replacement procedures
and helps to make the engine module more compact. The waste toner bottle is smaller than other full-
color printers because the waste toner from the OPC is collected in the waste toner tank of each AIO.
No.
Part name
No.
Part name
1
Waste toner container
9
Development roller
2
Transport belt shaft
10
OPC drum
3
Waste toner collection coil
11
Waste toner collection coil
4
Toner agitator
12
OPC cleaning blade
5
Upper mixing roller
13
Charge roller cleaner
6
Lower mixing roller
14
Charge roller
7
Development blade
15
Waste toner transport belt
8
Toner supply roller
