4.Replacement and Adjustment
46

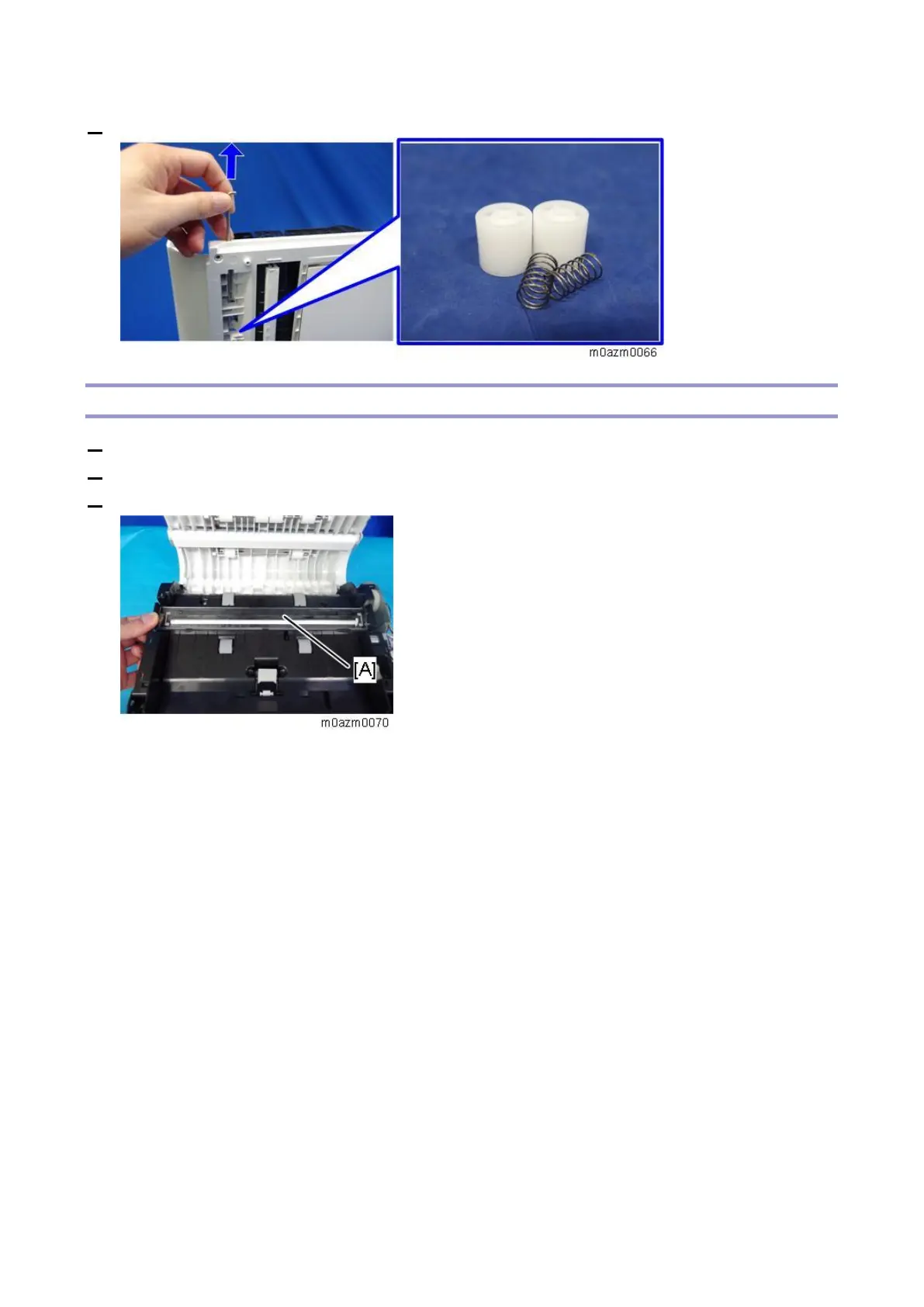

9. Open the ADF and then remove the springs and rollers.
Back CIS/Back ADF Exposure Glass
1. Remove the ADF front cover. (ADF Front Cover)
2. Remove the ADF rear cover. (ADF Rear Cover)
3. Open the ADF upper cover and then remove the back DF exposure glass [A].
To Remove the Back ADF Exposure Glass
1. Press the hooks [A] at the sides of the back ADF exposure glass outward, insert your fingertips
