Ricoh P C301W - Board Outline

7.Detailed Descriptions
286
MF Model

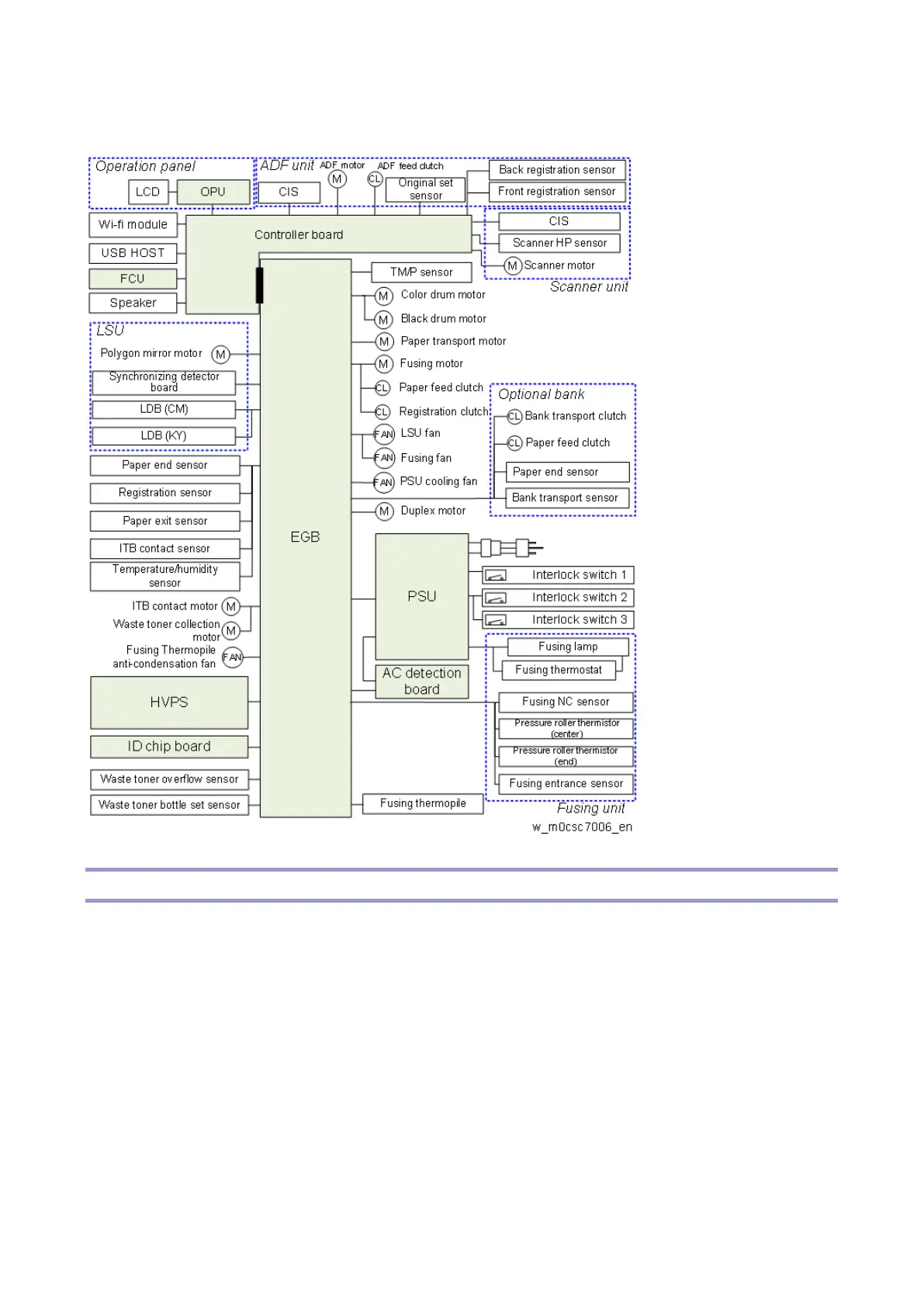

Board Outline
EGB (Engine Board)
The engine board controls the following functions:
• Engine sequence
• Controller interface
Controller Board
The controller board controls the following functions:
• LAN interface (10Base-T/100Base-T)
• USB2.0 interface
• Operation panel interface
