7.Detailed Descriptions
253
3. Duplex motor (M5)
4. Fusing motor (M4)
5. Paper transport motor (M3)
6. Registration clutch (CL2)
7. Paper feed clutch (CL1)
8. ITB contact motor (M6)
9. Waste toner collection motor (M7)
Electrical Component

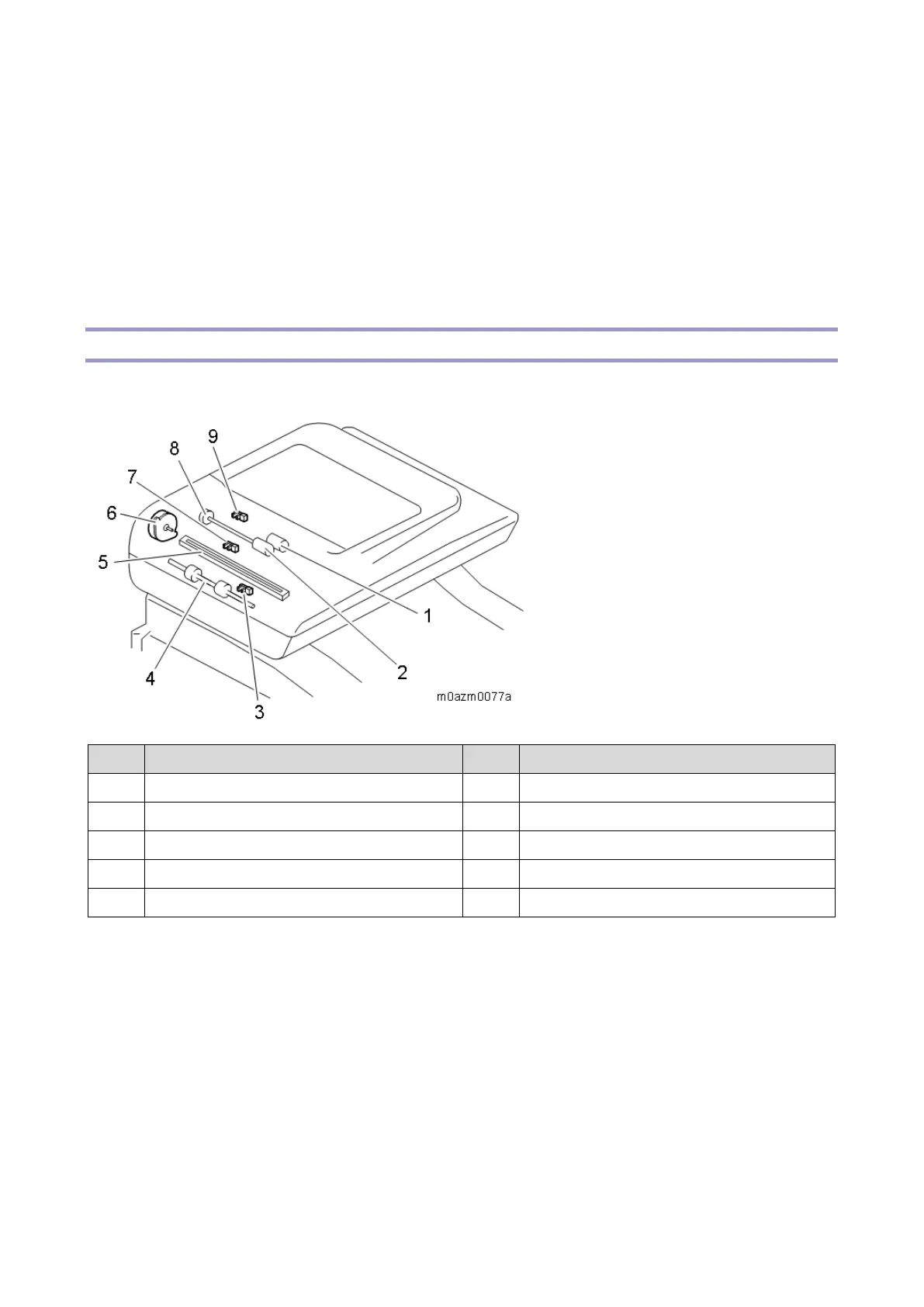

ADF Unit (Only MF Model)
No.
Name
No.
Name
1
ADF pick-up roller
6
ADF motor (M8)
2
ADF feed roller
7
Back registration sensor (S13)
3
Front registration sensor (S12)
8
ADF feed clutch (CL3)
4
ADF transport roller
9
Original set sensor (S11)
5
Back CIS
