Ricoh P C301W - Machine Overview; Component Layout

7.Detailed Descriptions
251
Machine Overview

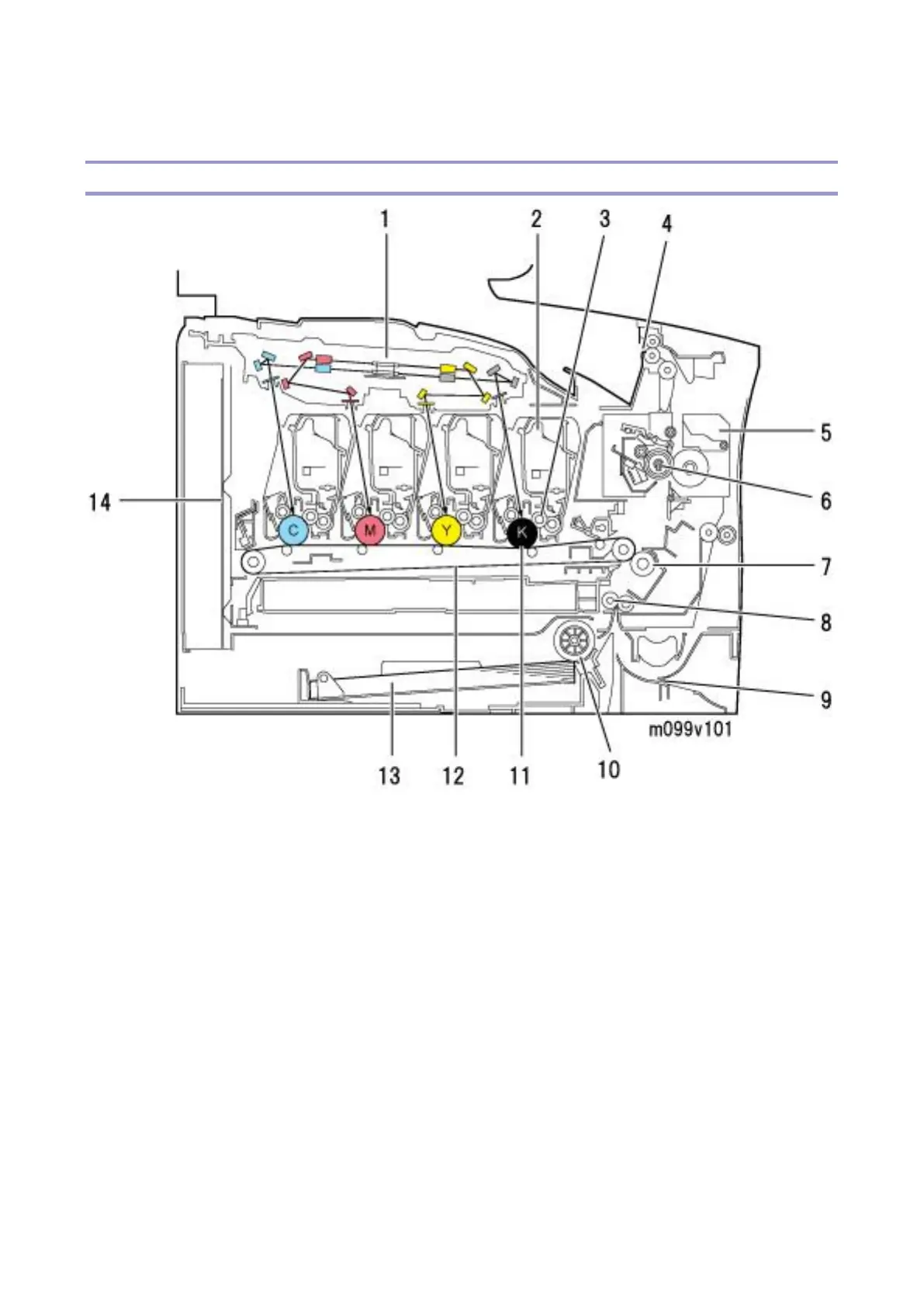

Component Layout
1. Laser unit
2. Print cartridge (AIO)
3. Development roller (AIO)
4. Paper exit
5. Fusing unit
6. Fusing lamp
7. Paper transfer roller
8. Registration roller
9. Bypass tray
10. Paper feed roller
11. OPC (AIO)
12. ITB (Image transfer belt) unit
13. Paper tray (Tray 1)
14. EGB (Engine board)/Controller board
