Ricoh P C301W - ITB Contact Sensor (S6); TM;P Sensor (S8) Unit

4.Replacement and Adjustment
67

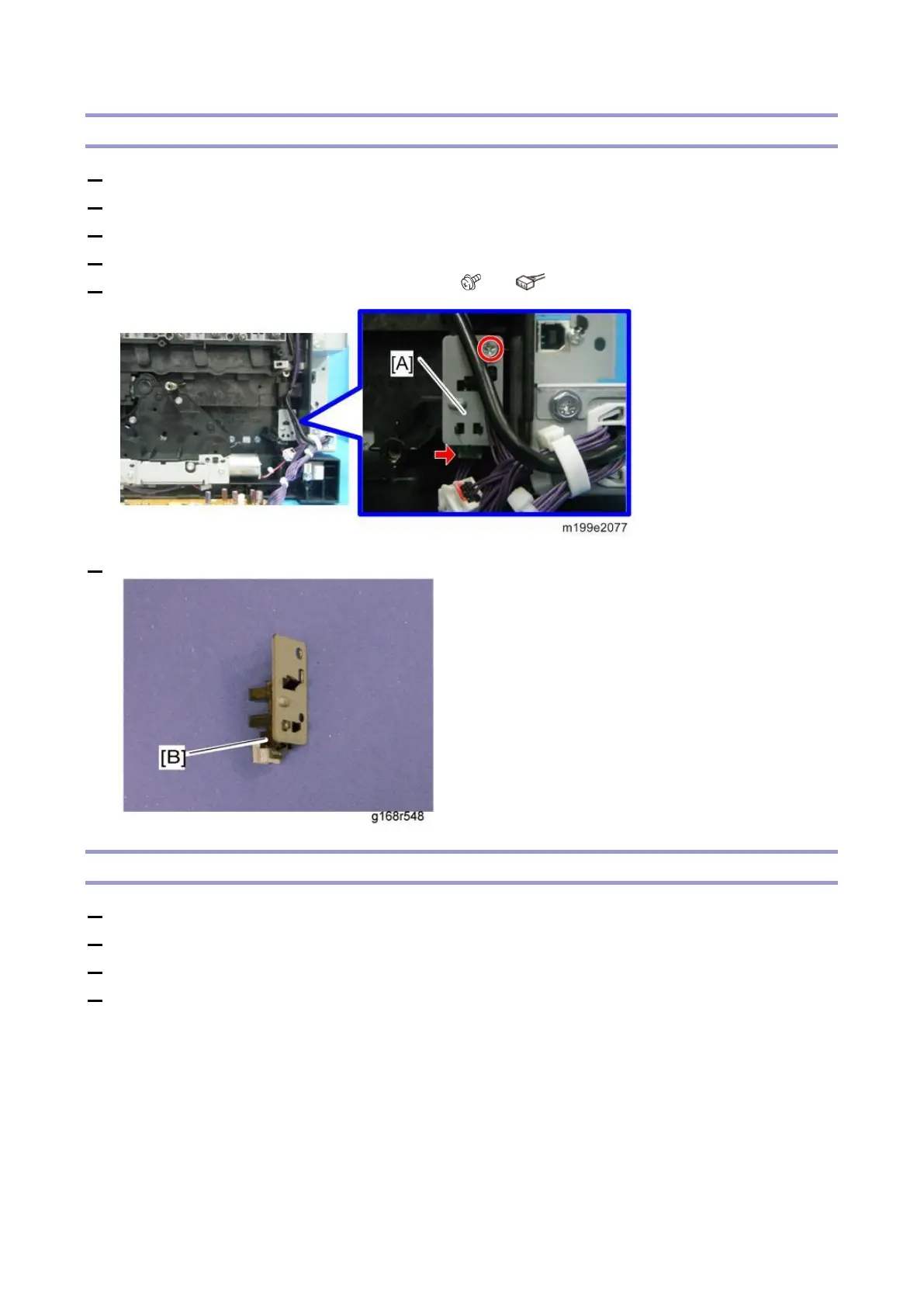

ITB Contact Sensor (S6)
1. Remove the rear cover. (Rear Cover)
2. Remove the operation panel. (Operation Panel)
3. Remove the right cover. (Right Cover)
4. Remove the HVPS. (HVPS (High Voltage Power Supply) (PCB3))
5. Remove the ITB contact sensor assembly [A]. ( × 1, × 1)
6. Release the hooks to remove the ITB contact sensor (S6) [B].
TM/P Sensor (S8) Unit
1. Remove all AIO cartridges. (AIO Cartridge)
2. Pull out the image transfer belt unit a little. (Image Transfer Belt Unit)
3. Remove the rear cover. (Rear Cover)
4. Remove the controller box cover [A].
