4.Replacement and
Adjustment
31

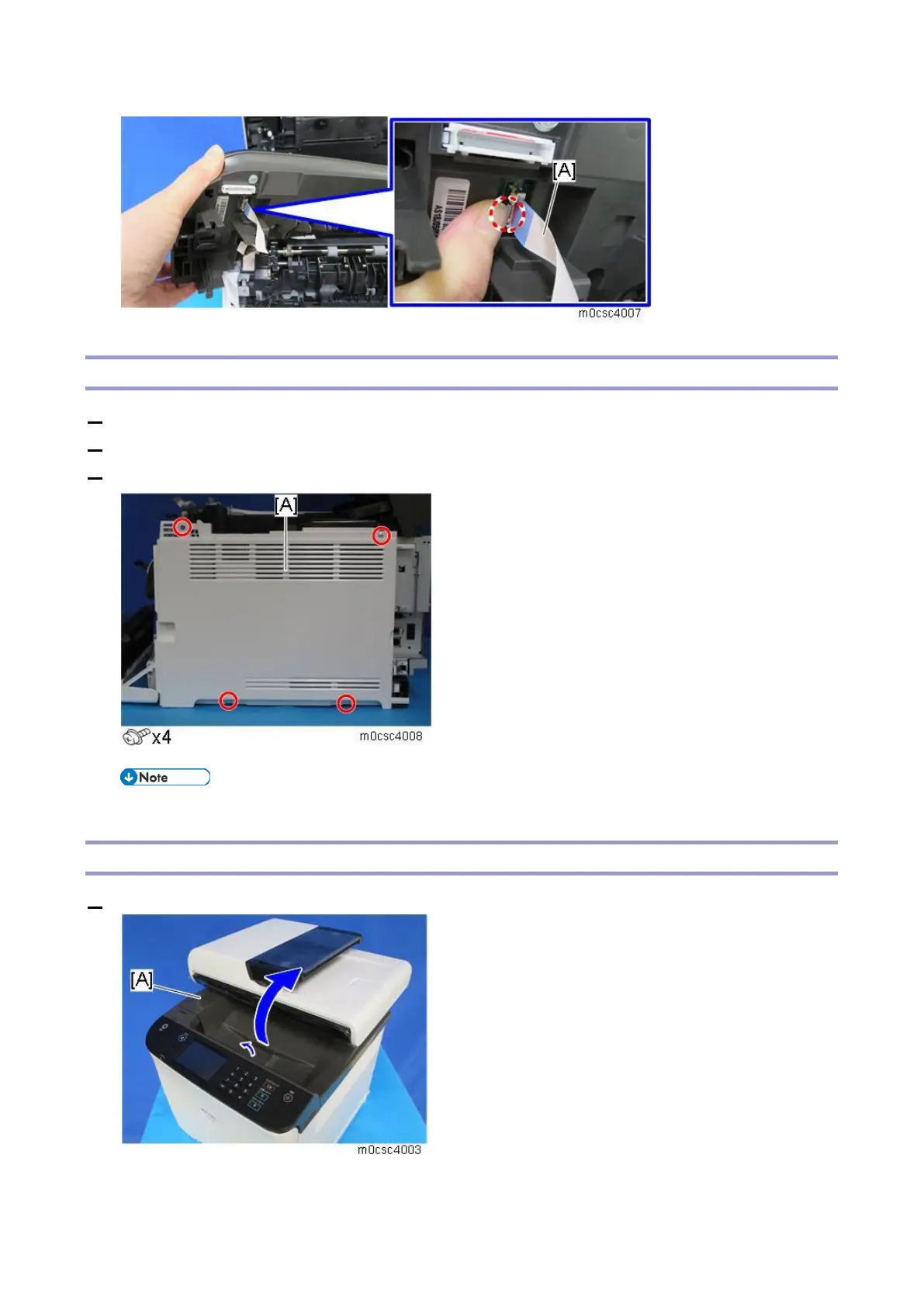

Right Cover
1.
Remove the rear cover
. (
Rear Cover
)
2.
Remove the operation panel. (
Operation Panel
)
3.
Remove the right cover [A].
T
op front screw: M3 x 8, others: M4 x 10
Left Cover
1.
Open the top cover [A].
42
44
