Ricoh P C301W - Image Transfer; Waste Toner Bottle; Image Transfer Belt Unit

4.Replacement and Adjustment
62
Image Transfer
Waste Toner Bottle
1. Remove all the AIO cartridges. (AIO Cartridge)
2. Remove the paper transfer unit. (Paper Transfer Unit)

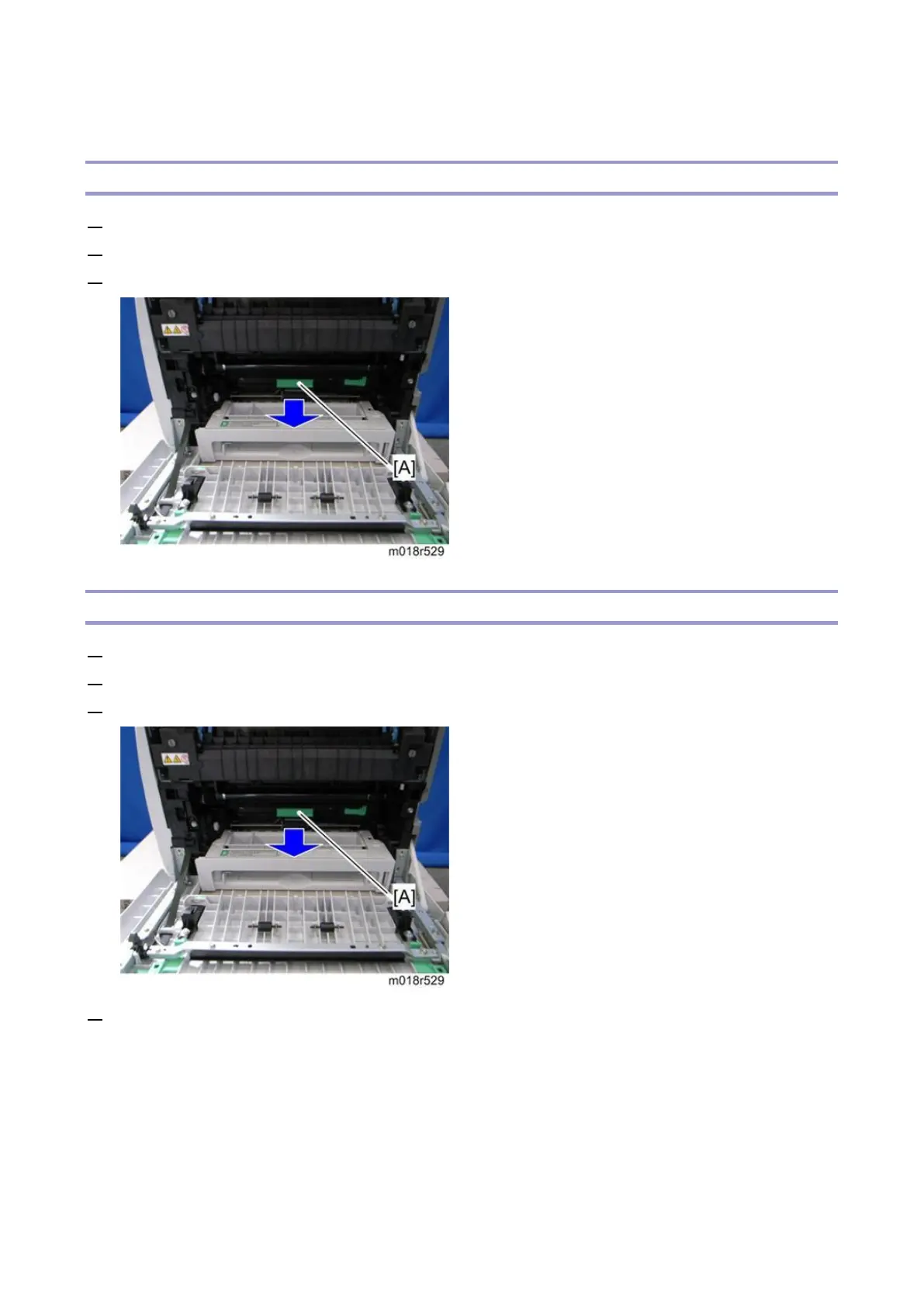

3. Pull out the waste toner bottle [A].
Image Transfer Belt Unit
1. Remove all the AIO cartridges (AIO Cartridge).
2. Transfer unit (Paper Transfer Unit)
3. Pull out the waste toner bottle [A].
4. Release the hook [B] under the guide plate.
