7.Detailed Descriptions
263
MUSIC (Mirror Unit Skew and Interval Correction)

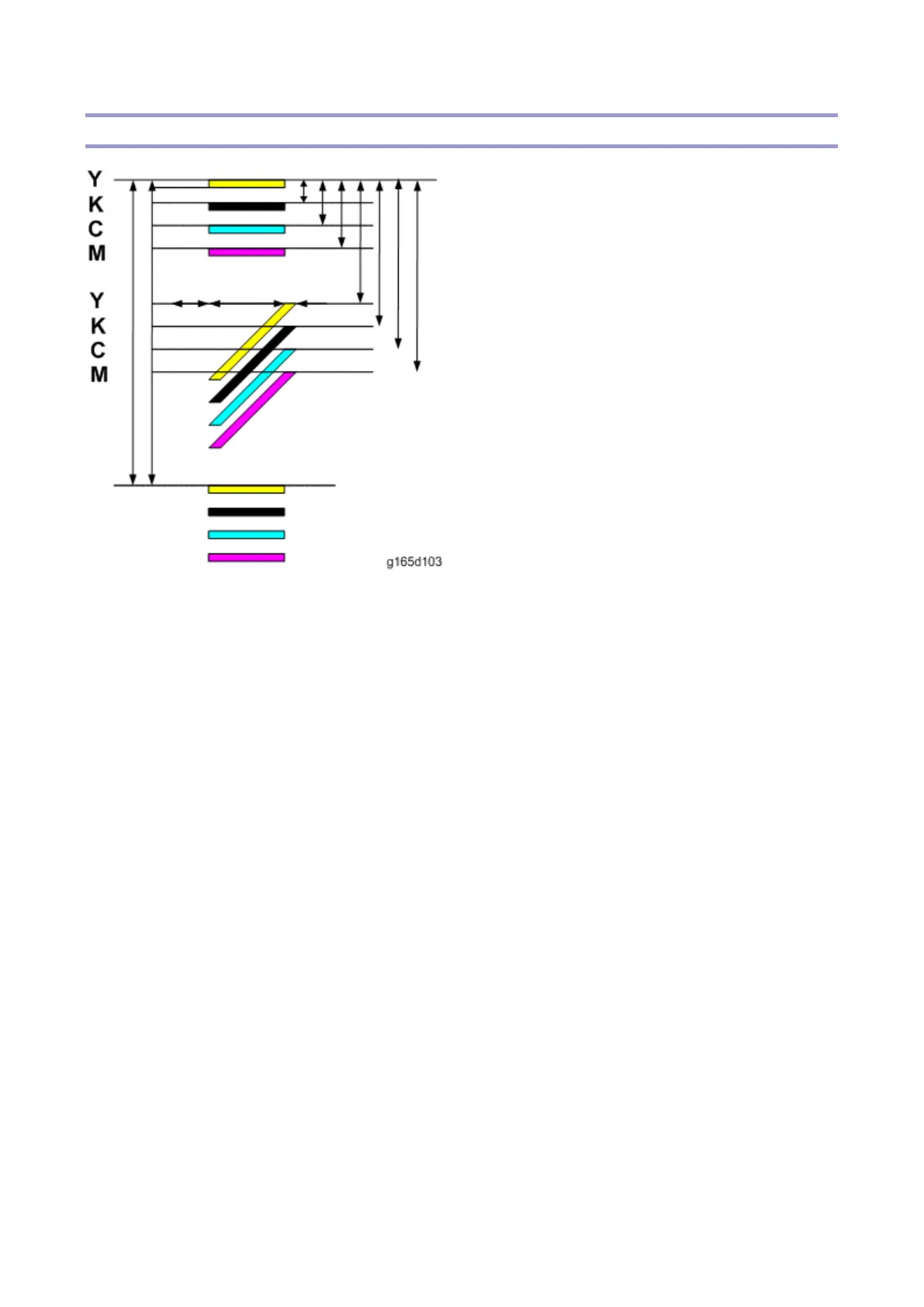

During MUSIC, the line patterns above are made 16 times for fine adjustment or 8 times for the rough
adjustment on the transfer belt. The spaces between the lines (YY, KK, CC, MM, KY, KC, KM) are
measured by the front, center, and rear TM/P sensors. The controller reads the average of the spaces,
and adjusts these items:
• Sub scan line position for YCM
• Main scan line position for KYCM
• Magnification ratio for KYCM
• Phase control
The ITB cleaning unit cleans the image transfer belt after the patterns are measured.
The execution timing for MUSIC follows the sequence of the process control.
