4.Replacement and Adjustment
34

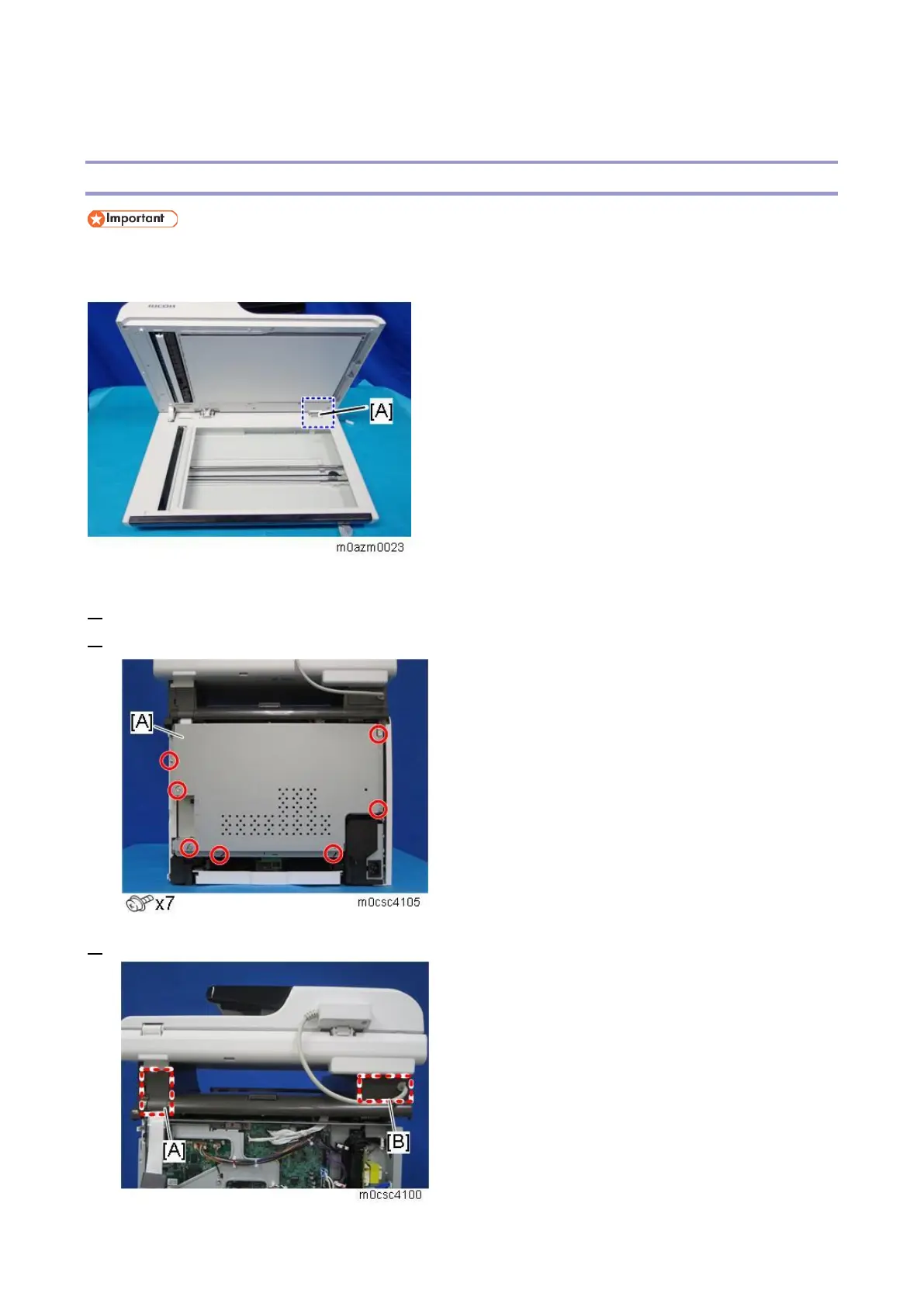

ADF/Scanner Unit (MF Model Only)
ADF/Scanner Assembly
The ADF unit and scanner unit are connected by an FFC [A], so they cannot be separated. Replace the
ADF unit and scanner unit together as the ADF/Scanner Assembly.
1. Remove the rear cover. (Rear Cover)
2. Remove the controller box cover [A].
3. Remove the left stand cover [A] and right stand cover [B].
To Next Page
