Ricoh P C301W - ADF Front Cover

4.Replacement and Adjustment
40

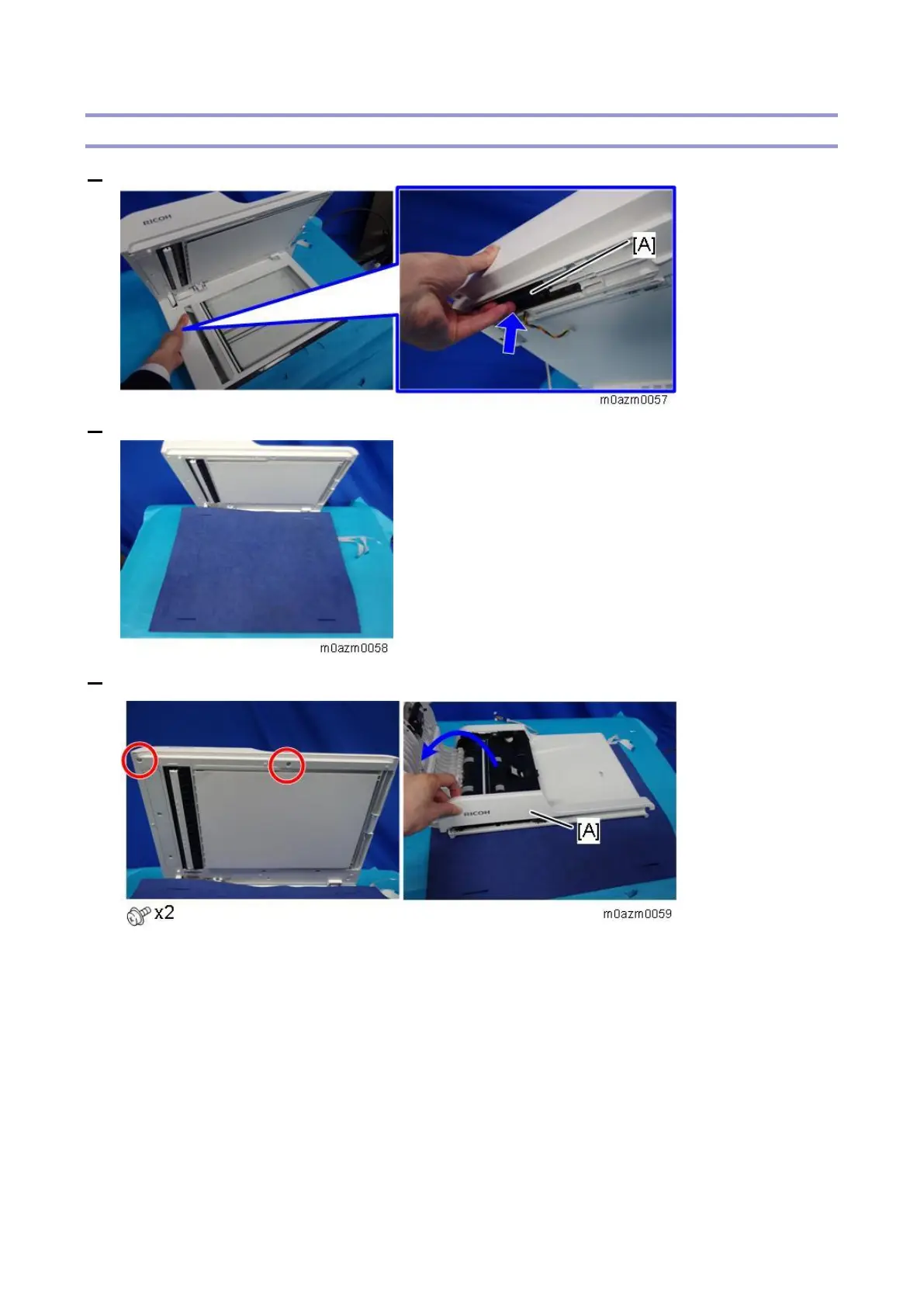

ADF Front Cover
1. While pressing the ADF release bar [A] on the back of the scanner unit, open the ADF.
2. Cover the scanner exposure glass with a mat or cloth to prevent it from being damaged.
3. Open the ADF cover, and then remove the ADF front cover [A].
