Ricoh P C301W - Image Transfer; Overview; Mechanism

7.Detailed Descriptions
272
Image Transfer
Overview

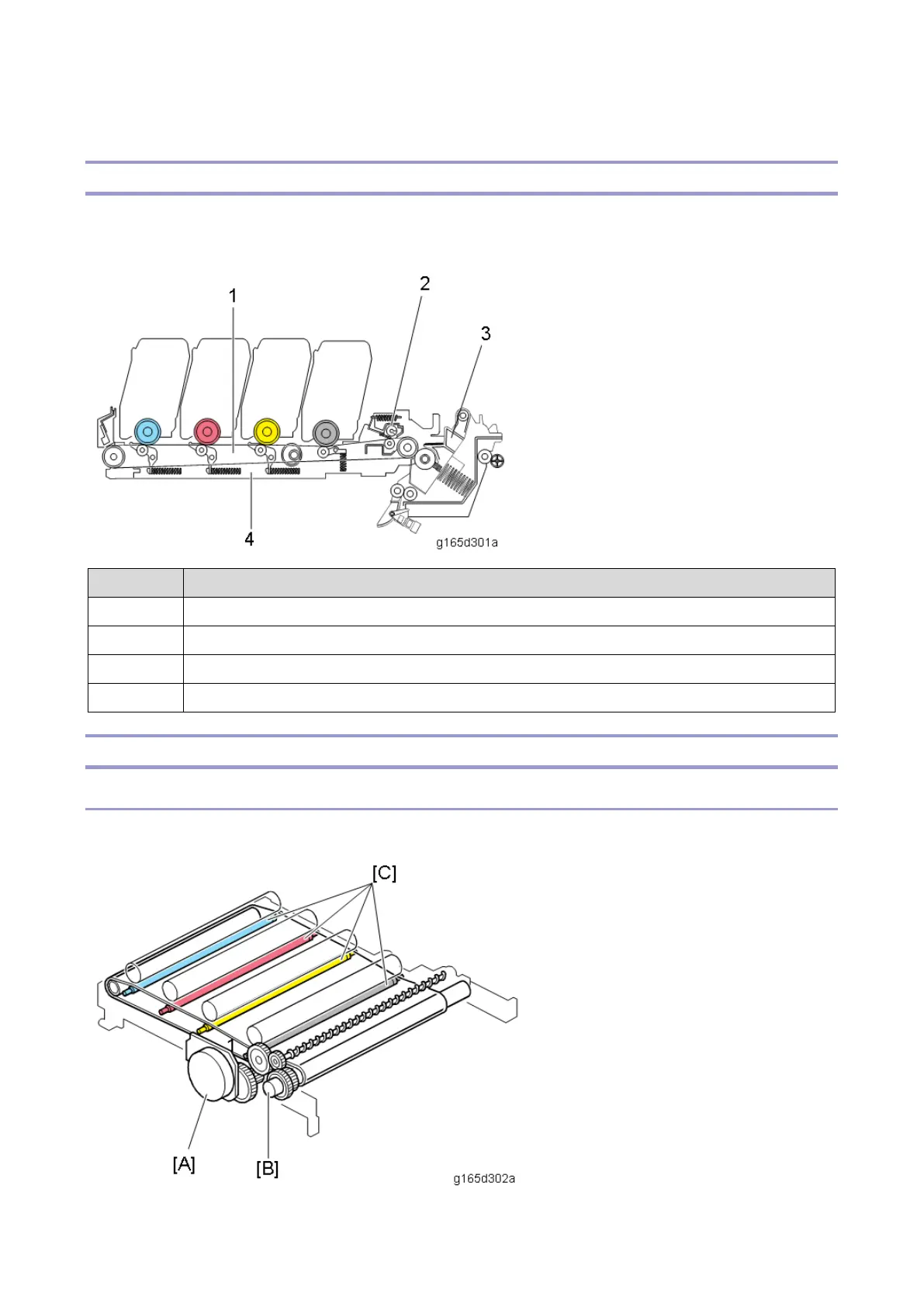

The transfer unit is composed of four components of the image transfer belt unit, the ITB cleaning unit,
the paper transfer unit, and the waste toner bottle.
No.
Part name
1
Image transfer belt unit
2
ITB (image transfer belt) cleaning unit
3
Paper transfer unit
4
Waste toner bottle
Mechanism
Image Transfer Belt Unit
Drive and Transfer Belt Roller Bias
