4.Replacement and Adjustment
119

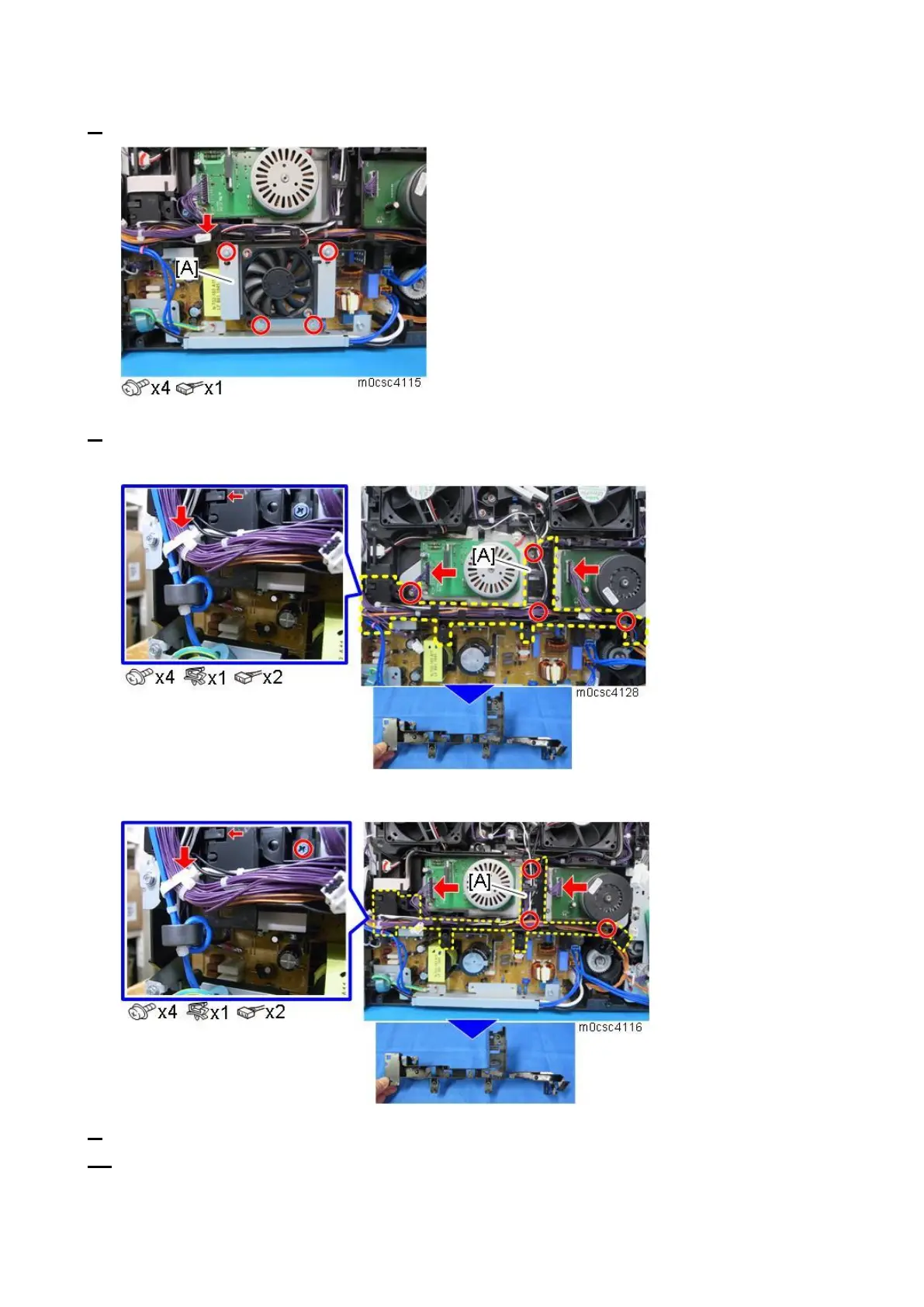

7. Remove the PSU cooling fan assembly [A].
8. Release all harnesses and hook on the harness guide to remove the lower harness guide [A].
Printer model:
MF model:
9. Remove the interlock switch base. (Interlock Switches (SW1/SW2/SW3))
10. Release all harnesses on the harness guide to remove the upper harness guide [A].
Printer model:
