Ricoh P C301W - Page 82

4.Replacement and Adjustment
70

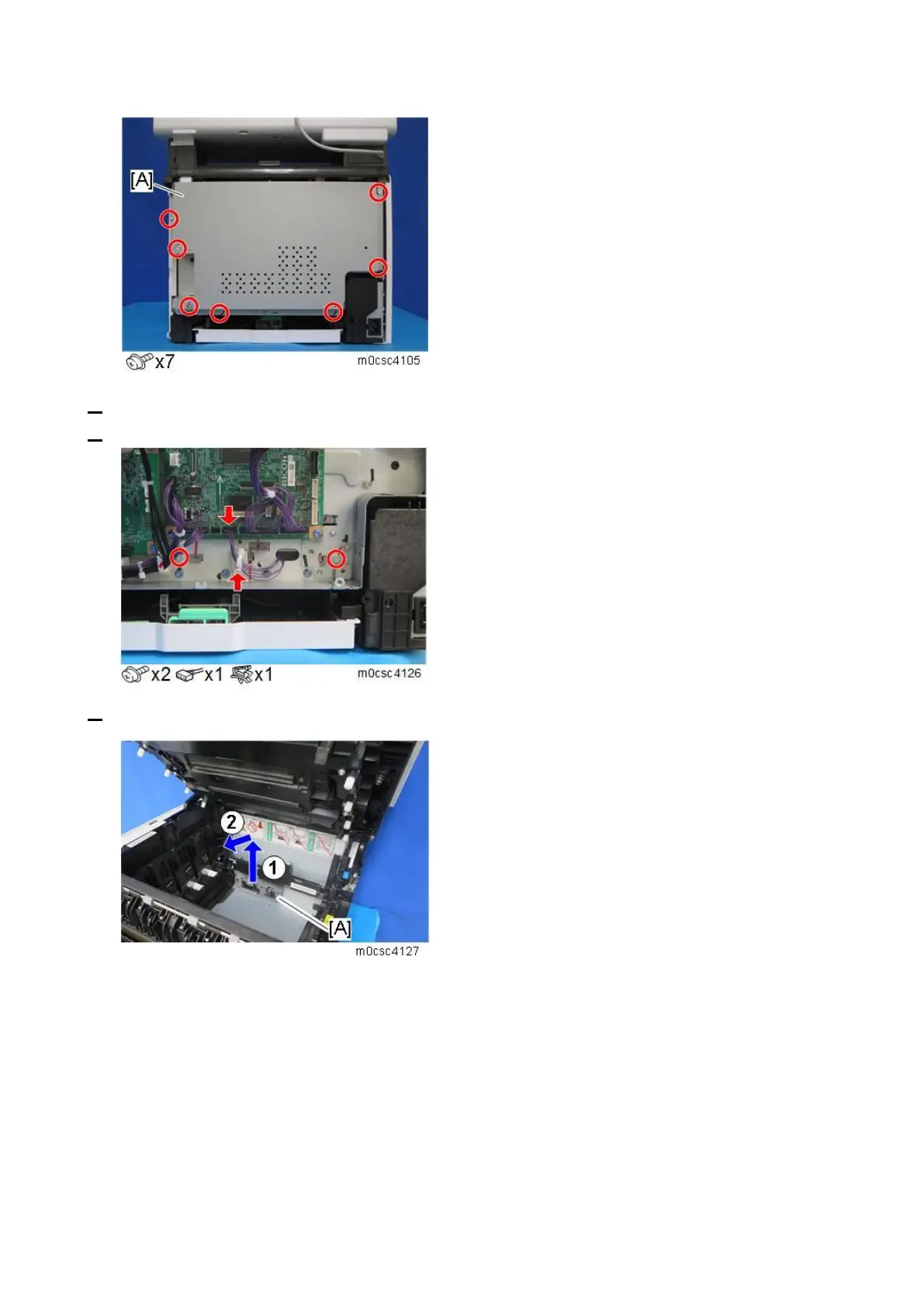

5. Remove the AC detection board with the harness guide. (AC Detection Board (PCB5))
6. Disconnect CN315 on the EGB and remove the two screws fixing the waste toner sensor base.
7. Remove the waste toner sensor base [A].
