Input/output (I/O) modules
5-84
Analogue output modules

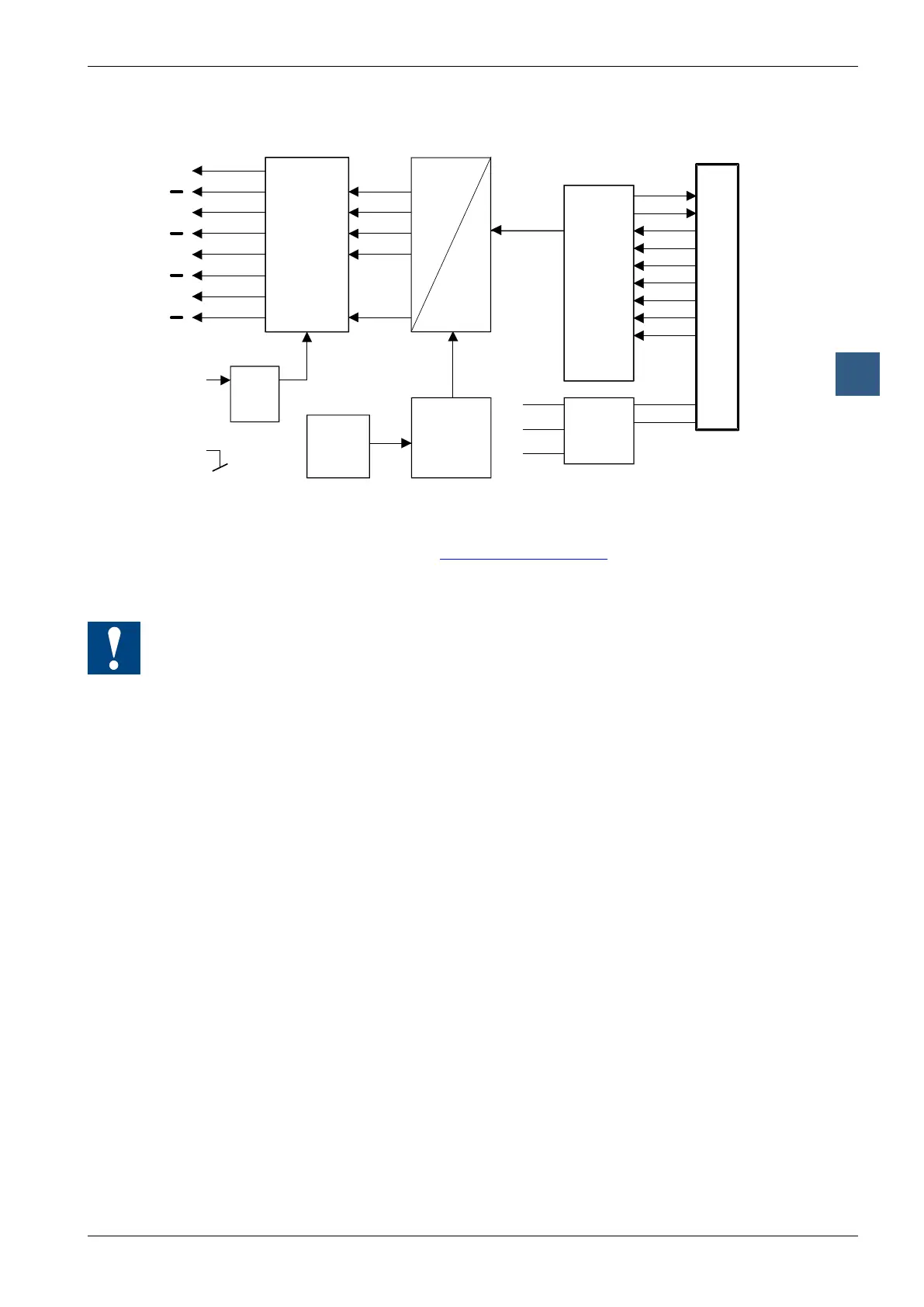

Block diagram
A0
A1
A2
A3
Output converter
A
D
Data
I/O Bus
PCD Bus
+5V
GND
/IOOUIT
IODIN
/IOWRITE
IODOUT
I/MS0
IOA0
IOA1
IOA2
IOA3
+15V
-15V
-5V
Filter
Ref.
voltage
2.500V
Unipolar/
Bipolar
switch
DC/DC
U
ext
GND
U1
U2
U3
U4
COM
Programming
Classic: Programming examples for the PCD2.W6x0 can be found in a separate
manual and on the TCS Support site (www.sbc-support.com + getting started).
xx7: the rmware writes the values according to the conguration (I/O Builder)
Watchdog: This module cannot be used on the base address 240 (or 496 for the
PCD2.M17x), because it would interact with the watchdog, and would cause a
malfunction.
For details, please refer to the “Watchdog” section, which describes the correct use of
the watchdog in conjunction with PCD2 components.
