Servotronix CDHD2S - Page 104

Drive Setup
—104
—

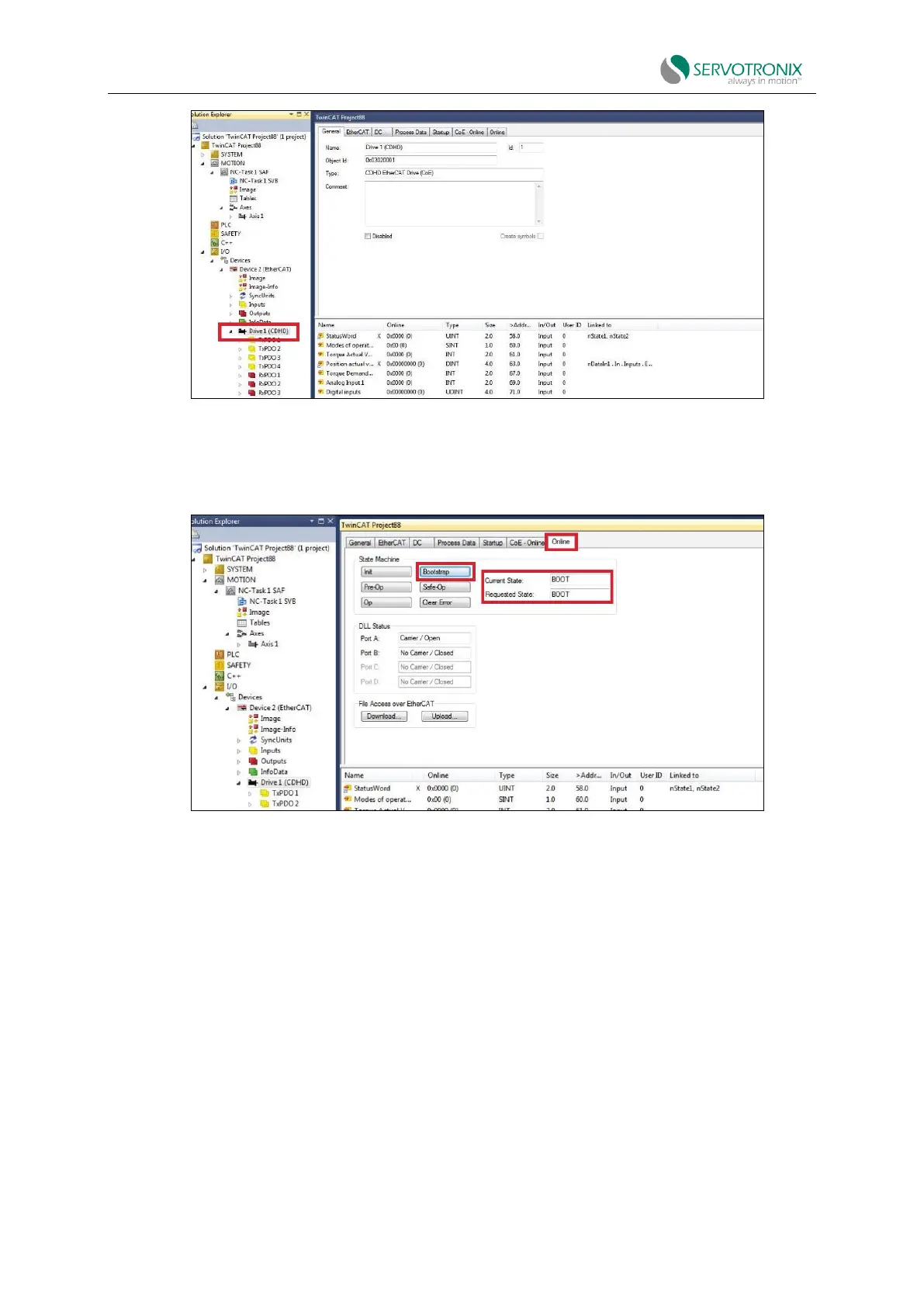

Figure 4-46
4. Go to the "Online" tab. Click "Bootstrap".
Wait for the "Current State" to change to BOOT.
Figure 4-47
5. Click “Download".
6. The File Manager dialog box will open.
Browse and select the CDHD2S firmware file (extension *.i00).
Click "Open".
