Servotronix CDHD2S - Page 141

Application Setup
—141
—

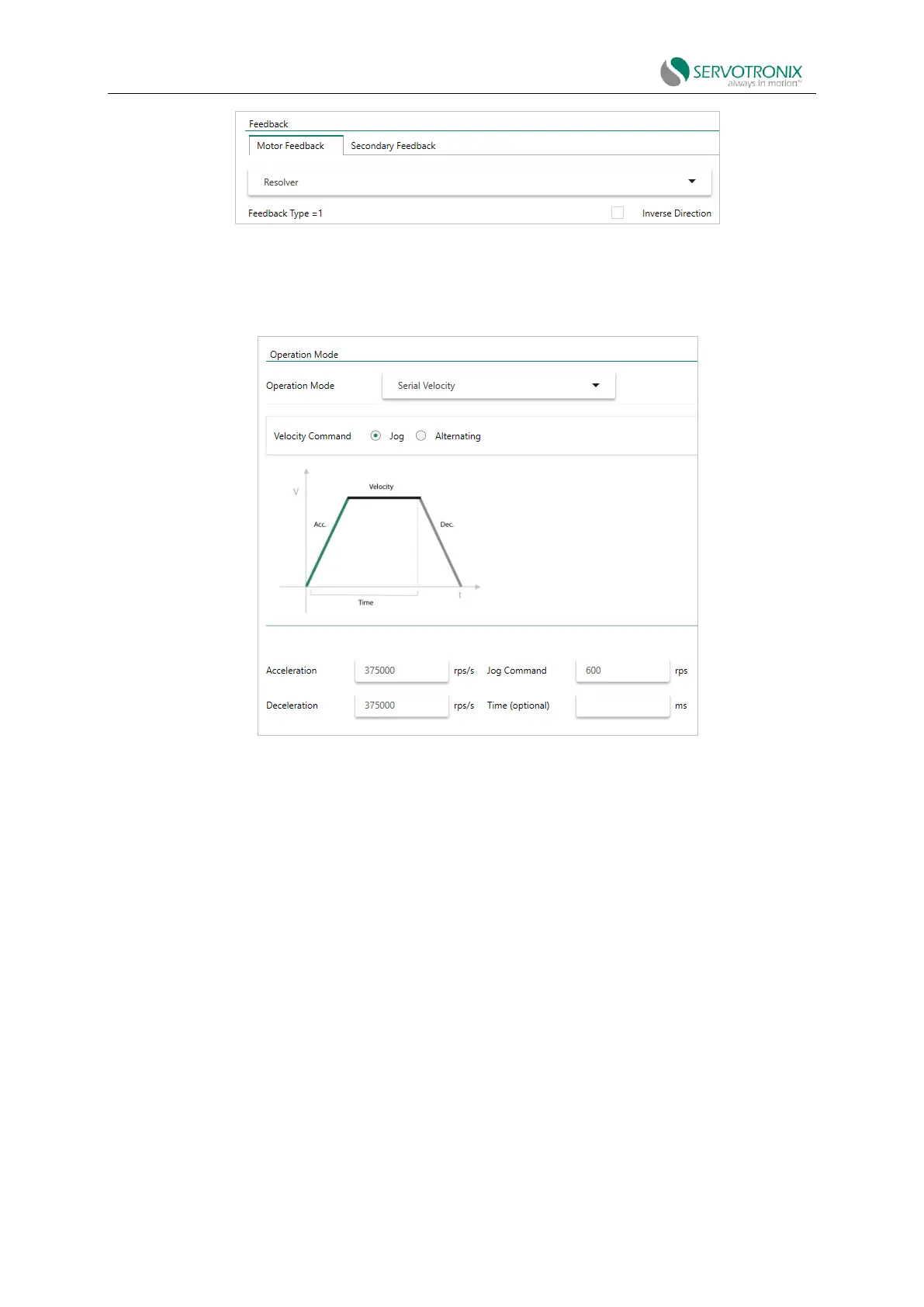

Figure 6-18
2. In the Motion screen, set parameters such as:
◼ Select "Operation Mode > Serial Velocity".
◼ Set the velocity to 600rpm.
Figure 6-19
3. In the Feedback screen, make the following settings:
