Tuning
—237
—

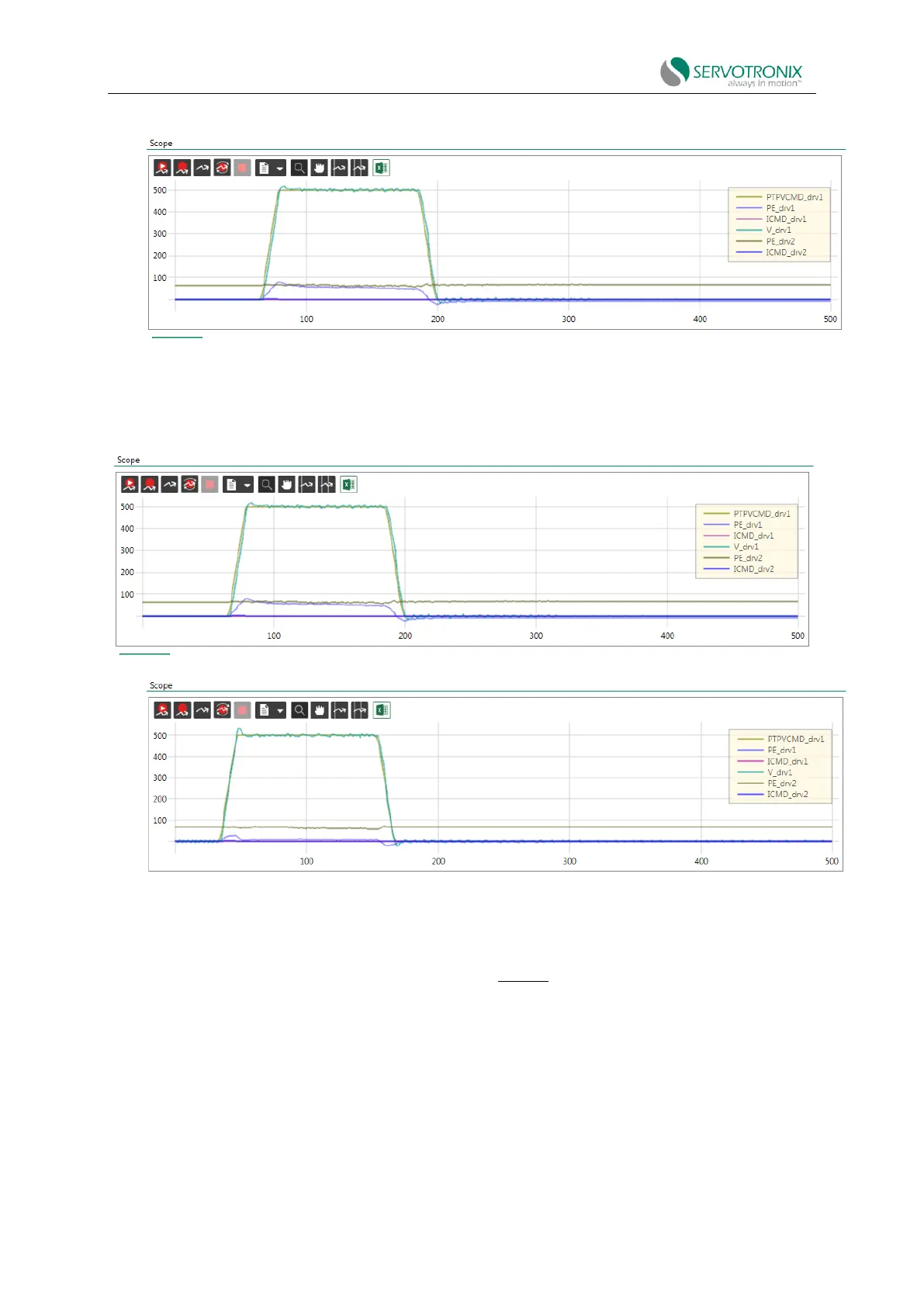

Figure 8-46 KNLD=50
6. Gradually increase the KNLP (HD proportional gain) value until the position error
decreases.
Figure 8-47 KNLD=20
Figure 8-48 KNLD=50
7. Increase the KNLI (HD integral gain) value to reduce the static error.
The maximum value of KNLI should be less than
2
KNLP
.
