Chapter 6 Operating Instructions
CLV 480 Bar Code Scanner
6-32 © SICK AG · Division Auto Ident · Germany · All rights reserved 8 010 080/O824/10-02-2005
Operation
The inputs, outputs and direction of data transfer which is to be monitored can be selected.
The display sequence of the signals in the plot diagram can be changed. Up to 15 signals
can be displayed one under the other at the same time. The contents of the data output or
data reception of the host interface is displayed separately without protocol characters in
two output fields. The configured signal selection/sequence remains until CLV-Setup is
ended so that the monitor can be called up again without needing to be reconfigured.
Configuring and calling up I/O monitor for display
1. In the symbol bar, click or select CLV 480, I/O MONITORING in the menu bar.
The SIGNAL CHOICE dialog box is then displayed (Fig. 6-10).
2. Select the desired input, output or data transfer direction for each selection (entry) on
the left side in one of the drop-down lists.
3. Click the ADD button.
The previously selected entry appears at the end of the list in the SIGNALS TO PLOT field
to the right.
4. Repeat for other entries. A signal cannot be selected twice.
5. If necessary, delete undesired inputs, outputs or a data transfer direction from the list.
Select the relevant entry and click the REMOVE button. Several entries can be chosen
selectively by holding down the [CTRL] key and selecting with the left mouse button. A
block selection is done by holding down the [SHIFT] key and selecting with the left
mouse button.
6. If the sequence in the list is to be changed, select the desired entry and move it to the
preferred location using the "up arrow" and "down arrow" buttons. Several entries can
be moved selectively or as a block at the same time here as well.
7. After configuration is complete, click START MONITORING.
CLV-Setup begins with the display of the switching statuses/data output in the I/O
M
ONITORING dialog box as soon as data is output from the CLV. An example is shown in
Fig. 6-11.
8. To cancel the display, click CLOSE in the I/O MONITORING dialog box and exit the SIGNAL
C
HOICE dialog box by clicking CLOSE.

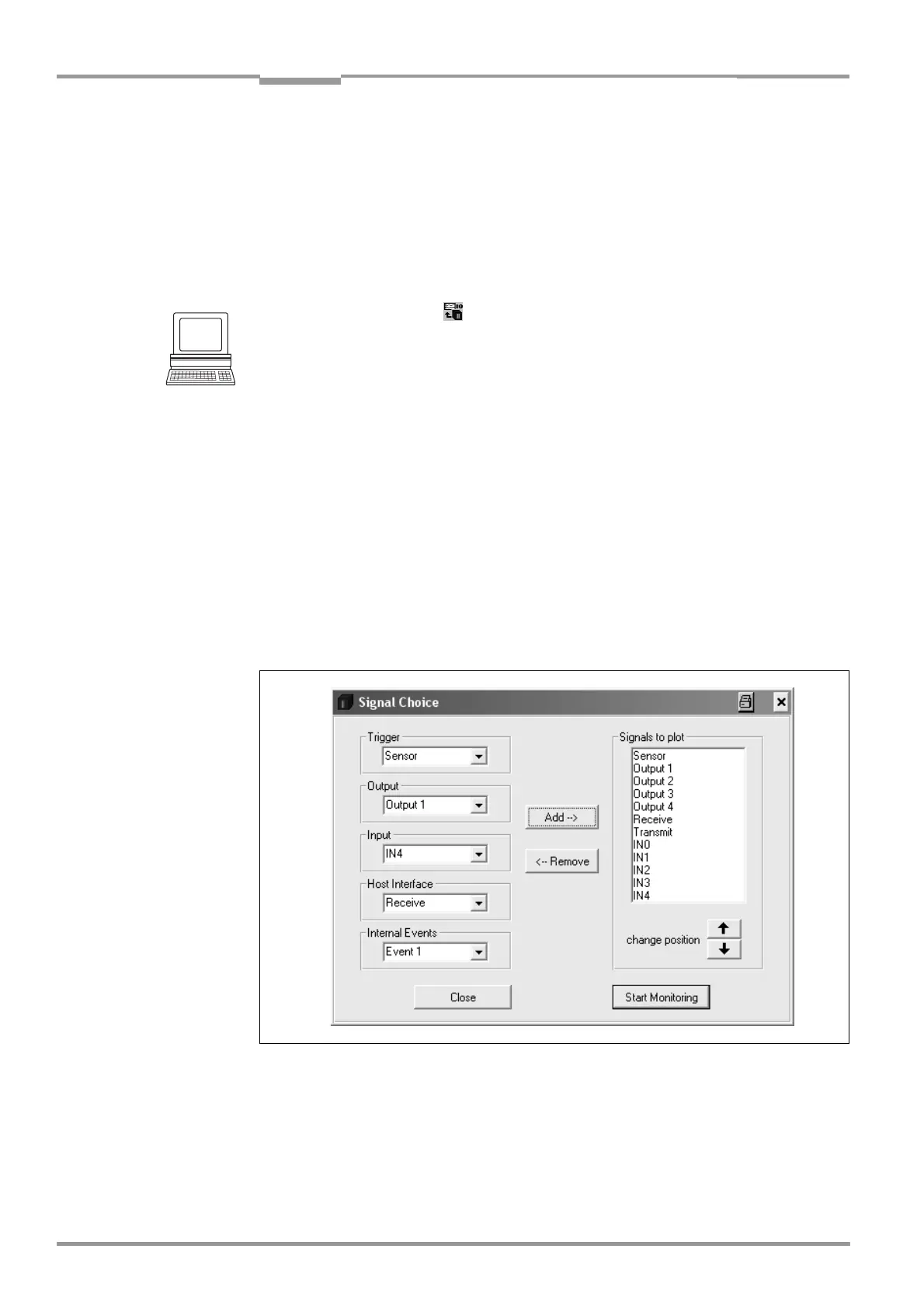

Fig. 6-10: CLV-Setup: Selection of the signals to be displayed in I/O Monitoring
