Operating Instructions Chapter 10
CLV 480 Bar Code Scanner
8 010 080/O824/10-02-2005 © SICK AG · Division Auto Ident · Germany · All rights reserved 10-57
Appendix

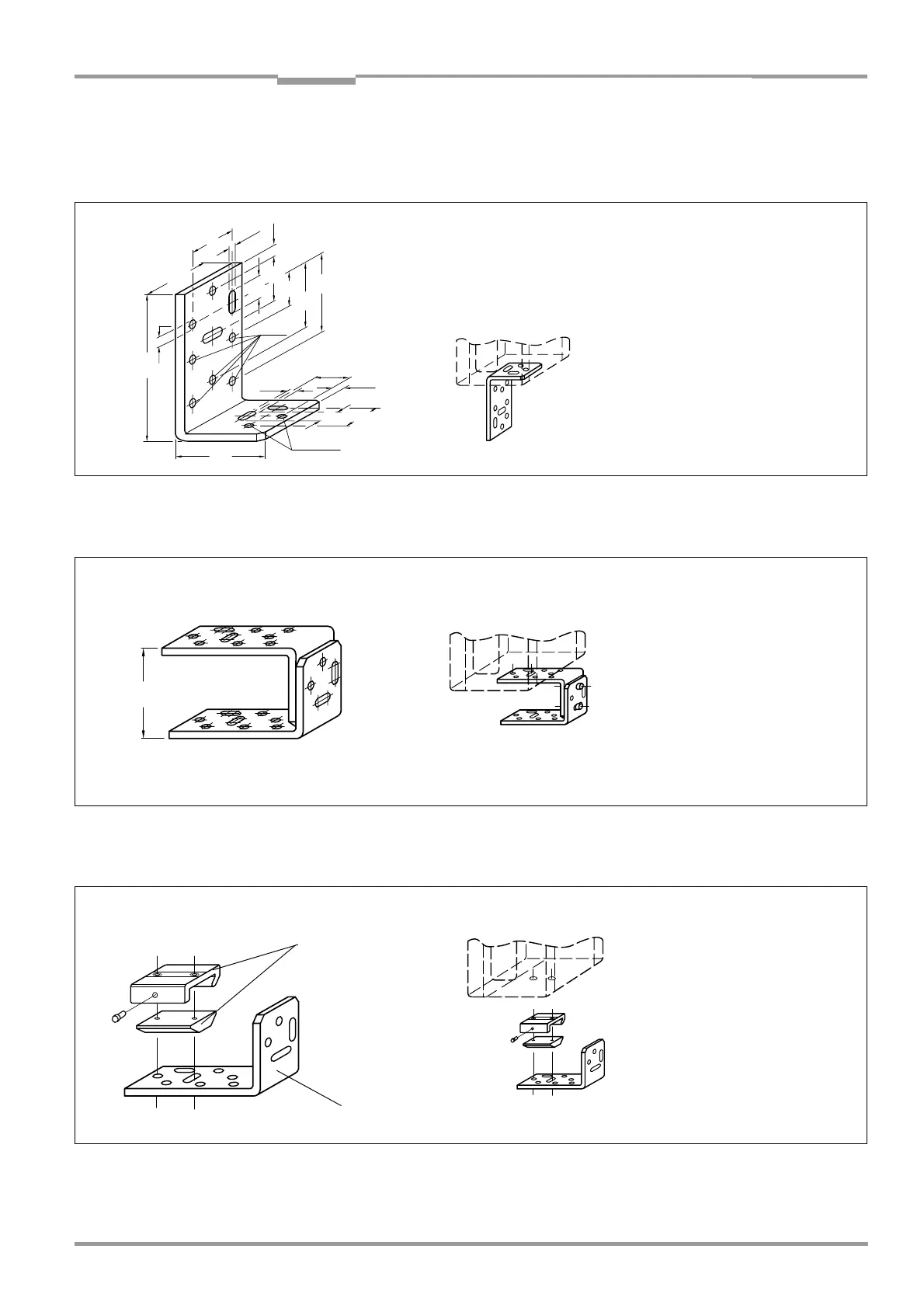

10.13 Dimensioned drawings of the accessories
10.13.1 Angle bracket, single no. 2 013 824
10.13.2 Articulated bracket No. 2 018 435
10.13.3 Quick clamping device No. 2 016 110
Fig. 10-36: Dimensions of the angle bracket, single No. 2 013 824
30
(1.18)
6.5
(.26)
45
(1.77)
30
(1.18)
7
(.27)
15
(.59)
30
(1.18)
ø 6.5 (.26)
ø 6.5 (.26)
6.5
(.26)
6.5
(.26)
56
(2.20)
15
(.59)
30
(1.18)
7.5
(.29)
97.5
(3.84)
25
(.98)
50
(1.97)
45
(1.77)
Enclosed to securing the CLV:
2 x cylinder head screws M6 x 10 mm (0.39 in),
self-locking
All dimensions in mm (in)
Fig. 10-37: Dimensions of the articulated bracket No. 2 018 435
68
(2.68)
Enclosed to securing
the CLV:
2 x cylinder head screws
M6 x 10 mm (0.39 in),
self-locking
All dimensions in mm (in)
Fig. 10-38: Front view of quick clamping device No. 2 016 110 with angle braket No. 2 0130824
Enclosed parts:
– 2 x hexagon socket head screws
M6 x 16 mm (0.63 in)
– 2 x flat-head screws M6 x 12 mm
(0.47 in)
–2 x washer A 6.4
– 1 x threaded pin M8 x 16 mm
(0.63 in)
No. 2 016 110
No. 2 013 824
