Operating Instructions Chapter 5
CLV 480 Bar Code Scanner
8 010 080/O824/10-02-2005 © SICK AG · Division Auto Ident · Germany · All rights reserved 5-3
Electrical installation
5.2.3 Connections/cables for the AMV/S 60 Connection Module
The AMV/S 60 Connection Module is suitable for connecting the CLV to peripherals (distri-
bution function) and the power supply. The module can be used to establish a connection
to the host (point-to-point) or integrate the device in a SICK network or daisy-chain configu
-
ration (pass-through or master/slave configuration). The module is available in several vari-
ants (see Table 5-1, Page 5-1).
Fig. 5-1 shows the connection principle of the AMV/S 60 for one CLV.
Connecting the CLV to the AMV/S
Two cables no. 2 020 302 are required to connect the CLV to the AMV/S. Alternatively, the
device can be connected via the external parameter memory no. 2 020 307.
See Chapter 5.2.5 Connections/cables for the external parameter memory (connection to
AMV/S or BMV 10/BMS 20), Page 5-5.
a) CLV without heater:
Connection modules: AMV/S 60 and AMV 30-071.
The cables no. 2 020 302 can be extended to 10 m (32.8 ft) (terminal interface: RS 232!).
b) CLV with heater:
Connection modules: AMV 100 and AMV 200.
The cables no. 2 020 302 must not be extended!
If longer cables are required, the entire power supply system (Pin 1/Pin 5) must be
connected with a wire cross-section of at least 0.75 mm
2
(approx. 20 AWG) with a maximum
length of 10 m (32.8 ft).
Recommendation Use the cable no. 2 021 298 (with two connector covers, length 3 m (9.84 ft)).

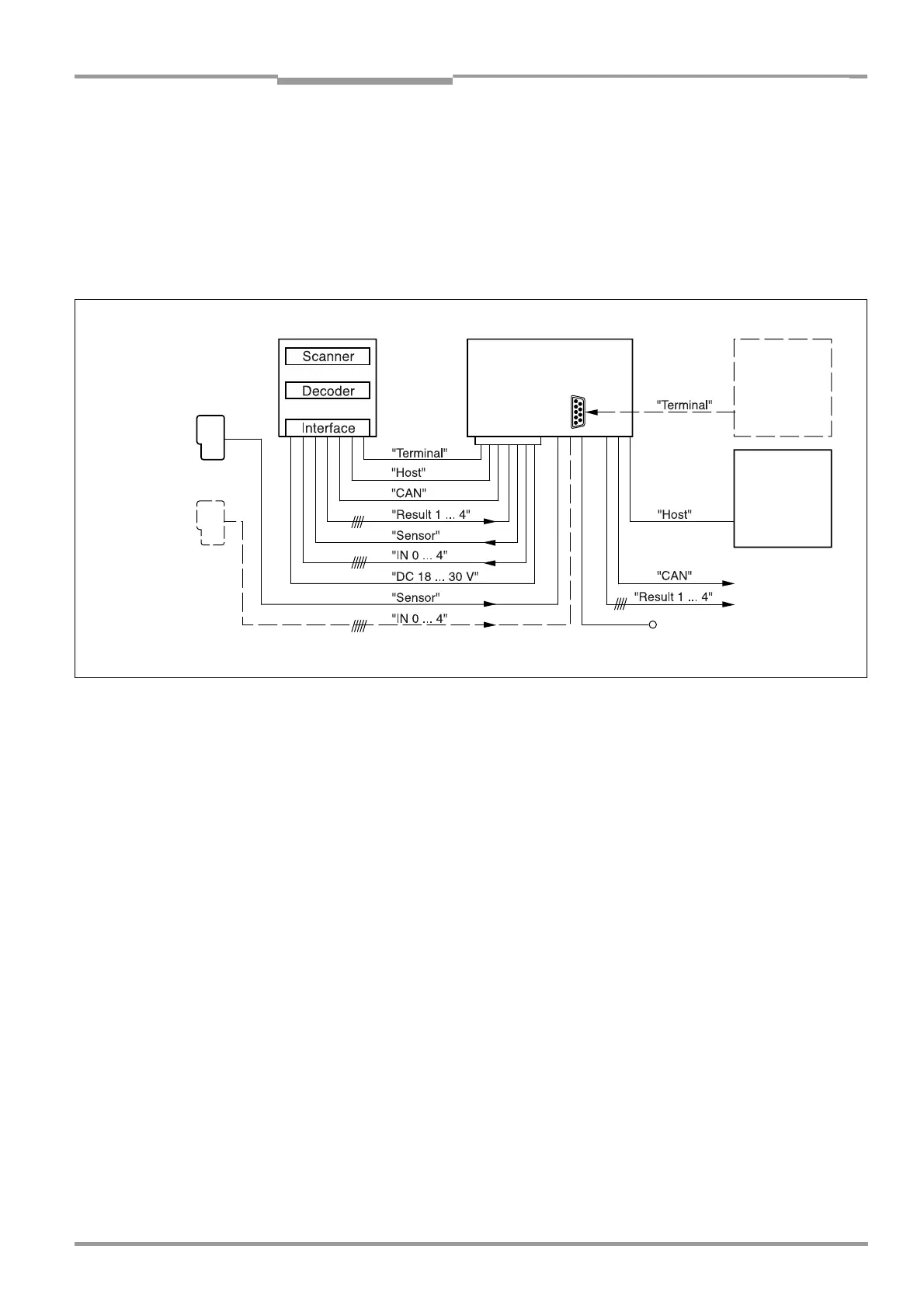

Fig. 5-1: Block diagram: Connection of the CLV to the AMV/S 60 connection module
Photoelectric
switch
Reading pulse
Photoelectric
switch
Focal position
Trigger One-Shot
Conveyor increment
End of reading interval
CLV 480
AMV/AMS 60
connection module
HOST/PLC
PLC
18 to 30 V DC (AMV 60-011)
230 V AC 50 Hz (AMS 60-013)
115 V AC 50 to 60 Hz (AMS 60-012)
– – Cable if required (if necessary)
PC
CAN bus
