Appendix
Start with copy internal -> external
When it starts, the CLV loads the internal parameter set to its RAM. It then copies the para-
meter set to the external memory and resets the start option to START WITH EXTERNAL PARA-
METERS.
The two "Device Ready" and "Read Result" LEDs blink alternately for approx. 10 s. The "De-
vice Ready" LED then lights up constantly.
The data is not lost when the device is switched off since it is stored permanently in the CLV
and is identical to the internal parameter set.
10.3.4 Switching on the device for the first time
Since the external parameter memory is empty (e. g. on delivery) after the CLV has started,
the CLV immediately copies its current parameter set to the external parameter memory.
Then the "Device Ready“ LED lights up. The CLV is ready for operation.
If an external parameter memory containing a corresponding parameter set is connected to
the CLV, the "Device Ready" LED blinks for 10 s when the device starts up correctly and
then lights up constantly
.
10.3.5 Adjusting the parameter set in the external parameter memory after it has
been downloaded to the CLV
If the CLV is started with the START WITH EXTERNAL PARAMETERS option with an external para-
meter memory and if the parameter set is downloaded from CLV-Setup to the CLV with the
permanent storage option, CLV-Setup asks you whether the new parameter set is also to
be copied to the external parameter memory (
Fig. 10-24). This function prevents the CLV
from reloading the old parameter set the next time it starts.
¾ Adjust the parameter set in the external parameter memory as described in
Chapter 6.4.1 Configuring the CLV via the user interface of CLV-Setup, Page 6-5.

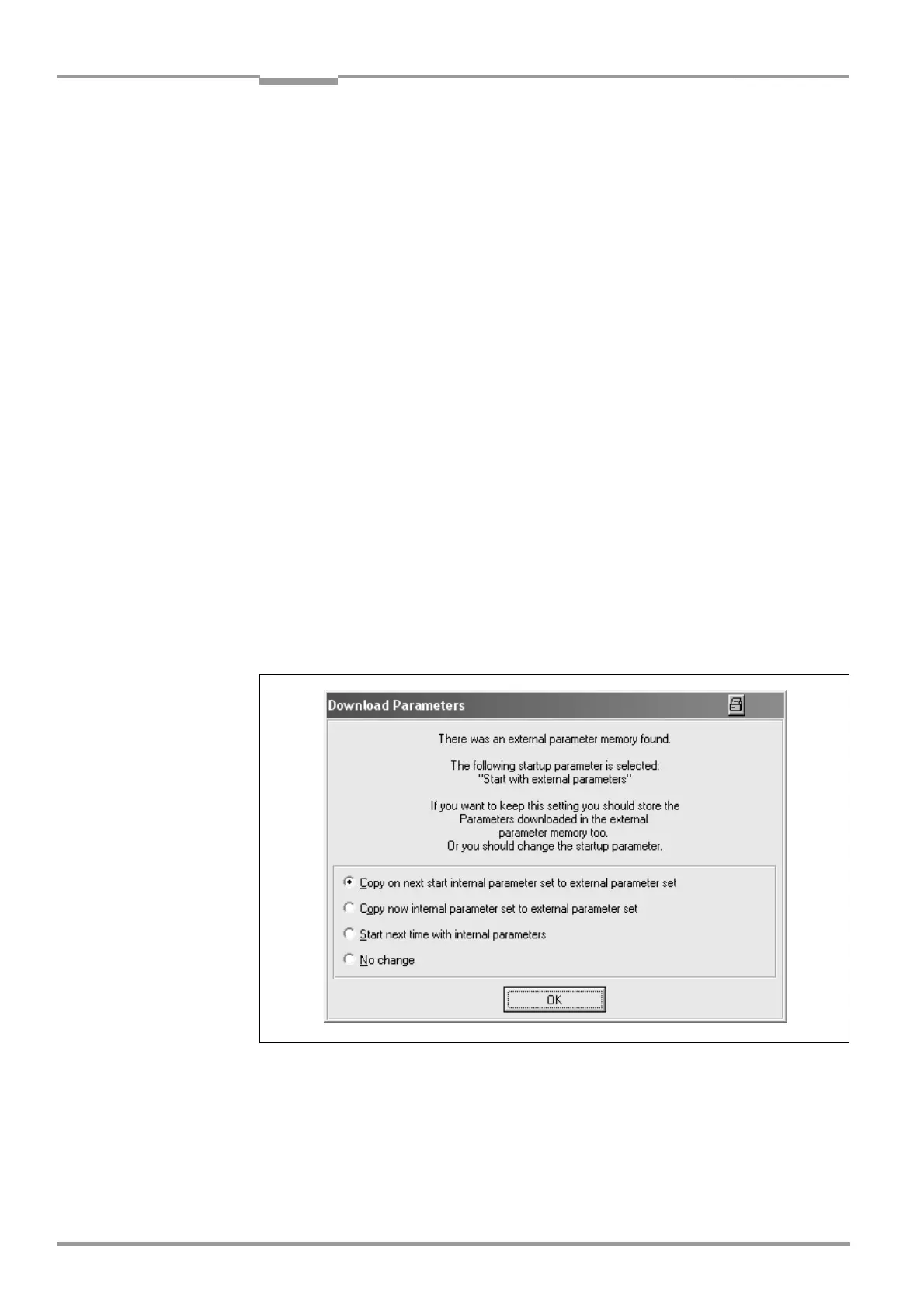

Fig. 10-24: CLV-Setup: dialog box for adjusting the external parameter memory
