Product description
3.1.5 Design

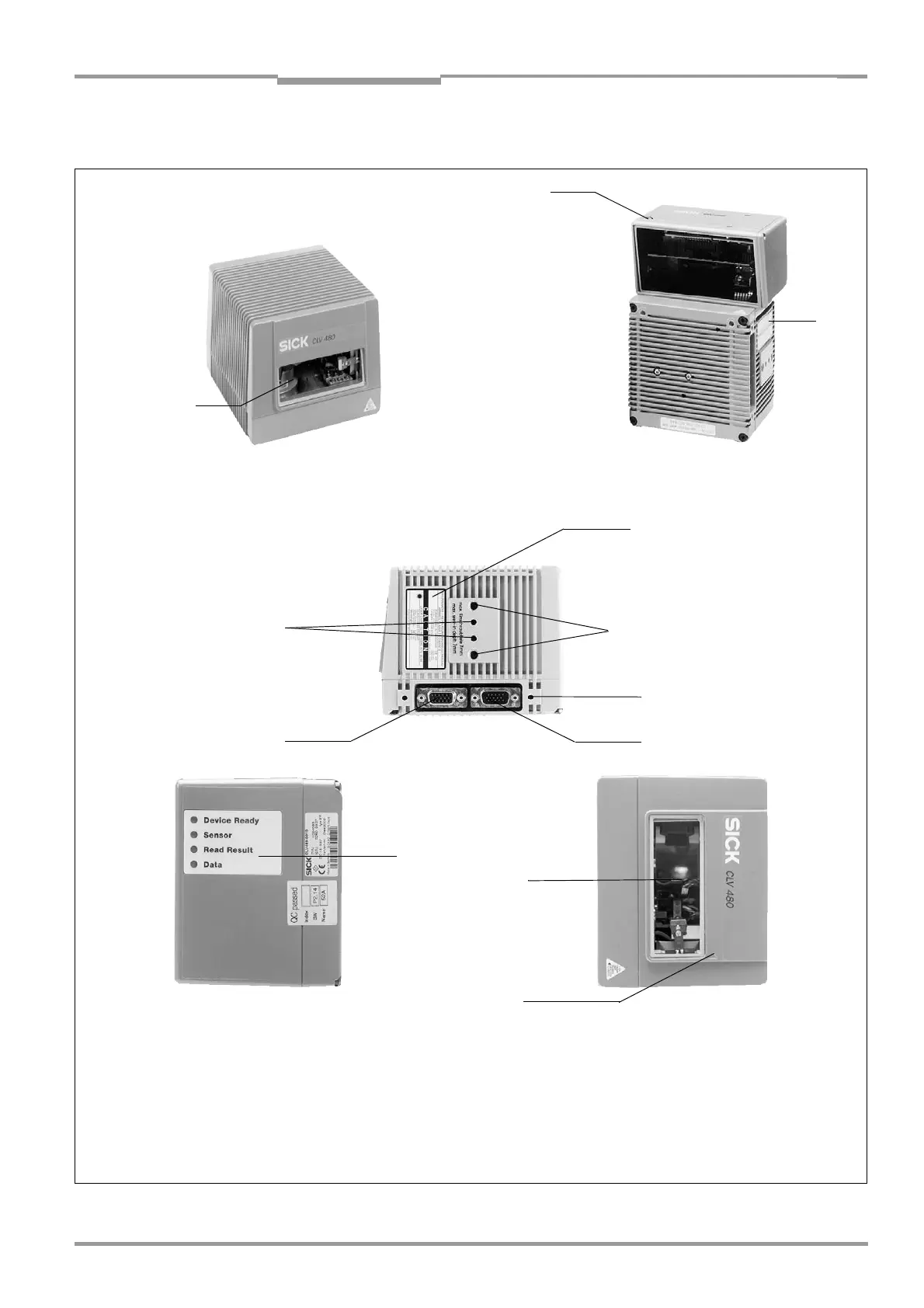

Fig. 3-1: Design of the CLV 480
Line scanner
(front-end reading window)
Legend
➊ Drilled hole, Ø 3.6 mm (0.14 in),
6 mm (0.24 in) deep
➋ Laser warning labels
➌ Blind hole thread M6, 7 mm (0.28 in)
deep,
for securing the device
➍ Blind hole thread M4,
10 mm (0.39 in) deep, for the
connector cover
➎ "Host/Term" connector
15-pin D Sub HD plug
➏ "I/O" connector,
15-pin D Sub HD socket
➐ LEDs (status indicators)
➑ Reading window
➒ Mark for count direction of the code
position (deflection direction of the
laser beam)
➊
➋
➋
➋
➌
➍
➏
➐
➎
Line scanner with oscillating mirror
(side reading window)
➋
➑
➒
