SICK CLV 480 - Line Scanner with Oscillating Mirror (WithoutWith Heater); Fig. 9-2: Dimensions of the CLV 480: Line Scanner with Oscillating Mirror, Side Reading Window

Chapter 9 Operating Instructions
CLV 480 Bar Code Scanner
9-4 © SICK AG · Division Auto Ident · Germany · All rights reserved 8 010 080/O824/10-02-2005
Technical data
9.5.2 Line scanner with oscillating mirror (without/with heater)

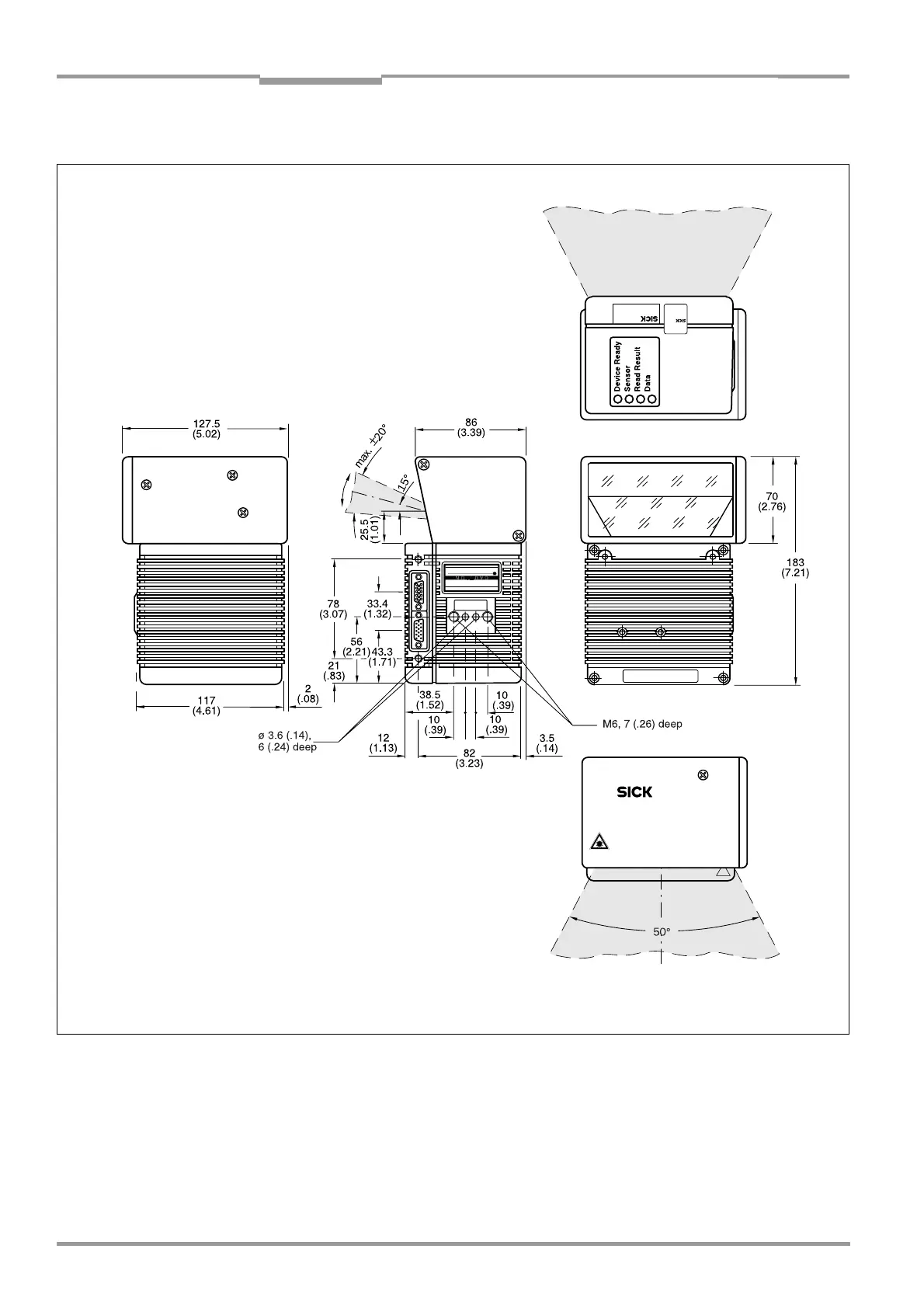

Fig. 9-2: Dimensions of the CLV 480: line scanner with oscillating mirror, side reading window
All dimensions in mm (in)
CLV 480-1010
CLV 480-1011
