Operating Instructions Chapter 9
CLV 480 Bar Code Scanner
8 010 080/O824/10-02-2005 © SICK AG · Division Auto Ident · Germany · All rights reserved 9-3
Technical data
9.4 Data sheet CLV 480-1011 bar code scanner
Technical data as CLV 480-1010 with the following exceptions:
9.5 Dimensioned drawings – CLV
9.5.1 Line scanner (standard device) without /with heater
Type CLV 480-1011
Design line scanner with oscillating mirror and heater
Switching on function/temperature graph see Chapter 10.4 Optional heating, Page 10-26
Power-on delay 35 to 40 min (at 24 V DC and min. ambient operating temperature –35 °C (–31°F))
Operating voltage 24 V DC +20 %/–10 % pursuant to ICE 364-4-41
Power consumption typically 75 W, max 90 W
Required cross-section
min. 0.5 mm
2
(20 AWG), for power supply
Weight approx. 2.2 kg (approx. 4.84 lb)
Ambient operating/storage temperature –35 to +35 °C/–20 to +70 °C (–31 to +95 °F/–4 to +158 °F)
Table 9-4: Technical specifications of the CLV 480-1011

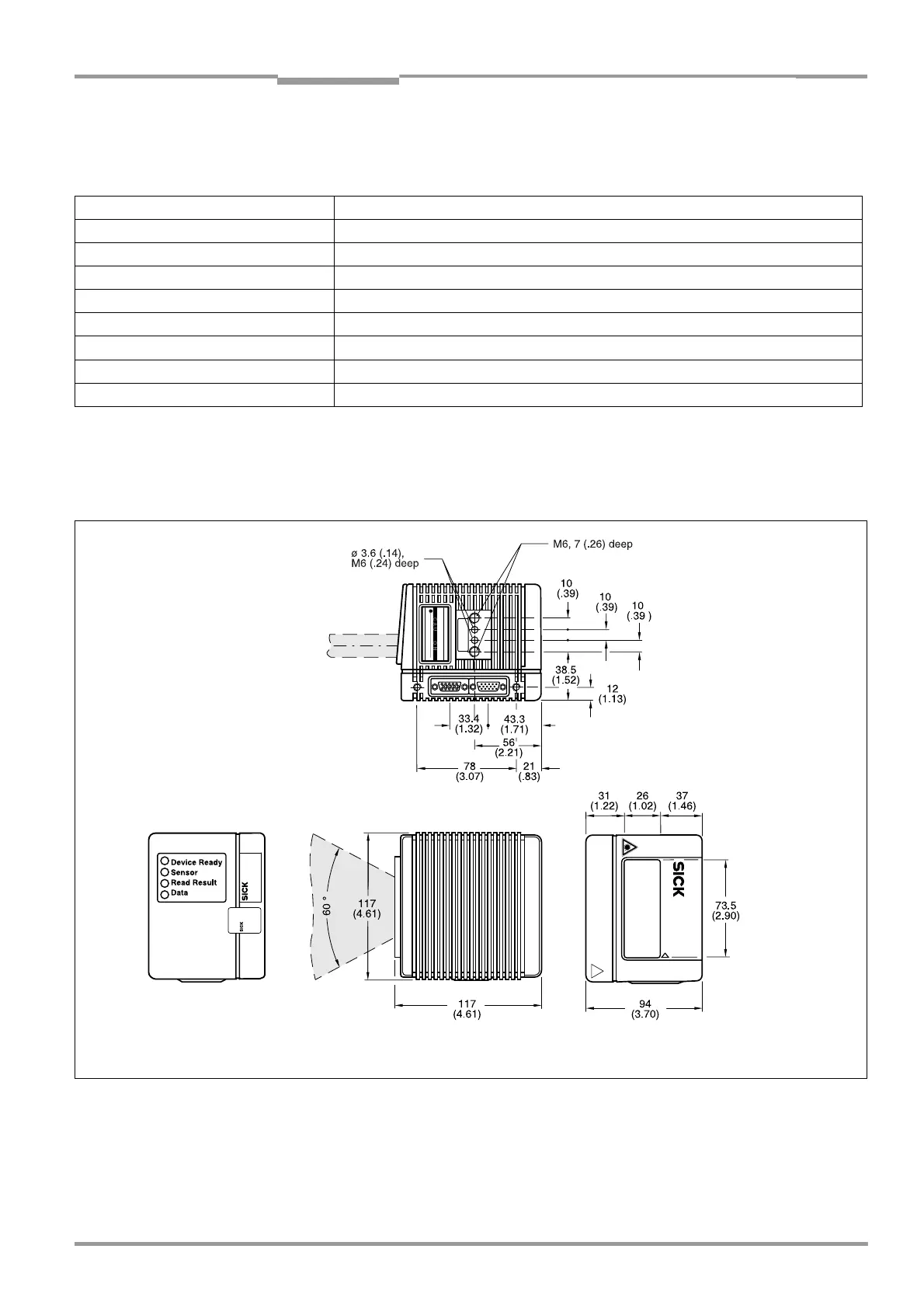

Fig. 9-1: Dimensions of the CLV 480 line scanner, front reading window
All dimensions in mm (in)
CLV 480-0010
CLV 480-0011
