6.5.12 Executing CLV functions interactively
CLV-Setup enables a number of CLV functions to be executed interactively. CLV-Setup
prompts the user to carry out specific actions and provides information on the progress of
the function being executed.
The following functions are available:
• Percentage evaluation
• Show CP-limits
• Adjustment mode
• Copy parameter memory
• Analyze scanner network
• Activate factory defaults in the device
¾ Choose CLV 480, DEVICE FUNCTIONS and the desired function
– or –
press the [F2] key.
The EXECUTE DEVICE FUNCTIONS dialog box is then displayed.
Choose the desired function in the EXECUTE menu in the menu.
CLV-Setup starts the function and, where appropriate, prompts the user to carry out the
necessary actions.

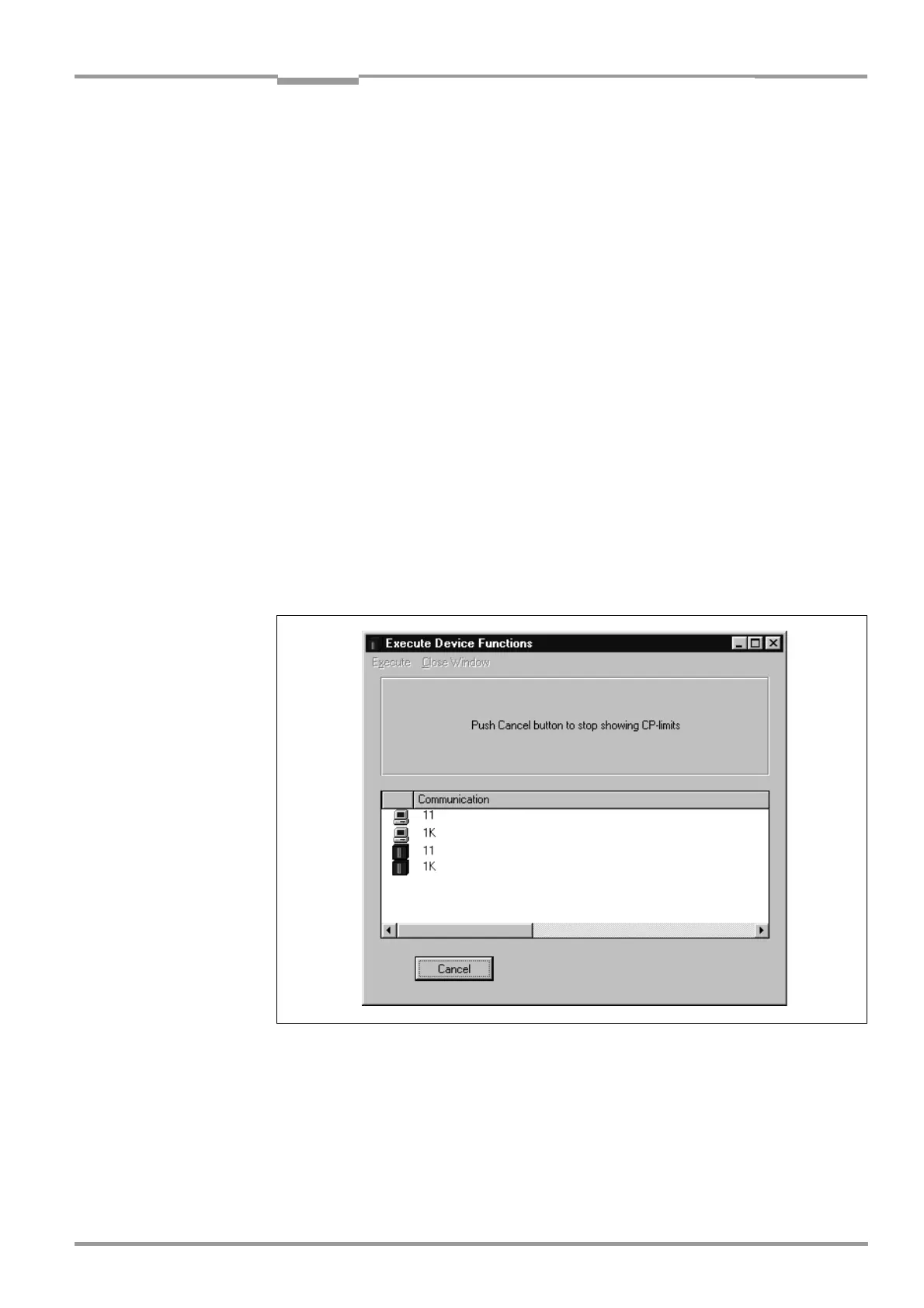

Fig. 6-15 shows an example of the dialog box that appears after Show CP-limits has been
started.
Fig. 6-15: CLV-Setup: Dialog box for executing Show limits
