Chapter 10 Operating Instructions
CLV 480 Bar Code Scanner
10-34 © SICK AG · Division Auto Ident · Germany · All rights reserved 8 010 080/O824/10-02-2005
Appendix
10.6.4 User interface
The graphical user interface (GUI) of the CLV-Setup is largely self explanatory. The online
CLV-Setup Help function provides a description of how to use the program under H
ELP TO
CLV-S
ETUP in the help navigation tree. The GUI is shown in Fig. 10-27.
The program window of the GUI comprises the following elements:
Title bar that displays the program name, current configuration file, and its status, e. g.
No File
Menu bar with pull-down menus
Toolbar with buttons for triggering various functions
Drop-down list (top right) for selecting the device type
Frame for displaying the navigation tree of the tabs (on left-hand side)
Frame for displaying the tabs for CLV 480 (Reading Configuration, Device Configuration,
etc.) (on right-hand side). The numbers of displayed tabs depends on the selected
items in the navigation tree on the left side. The parameters on the tabs are grouped
according to their function. Some of these parameters open further dialog boxes.
Status bar (bottom) with two display fields for the communication between CLV-Setup
and the CLV, the PC’s interface parameter display, error display field (system errors),
device specification field and status display for the connection to the CLV.

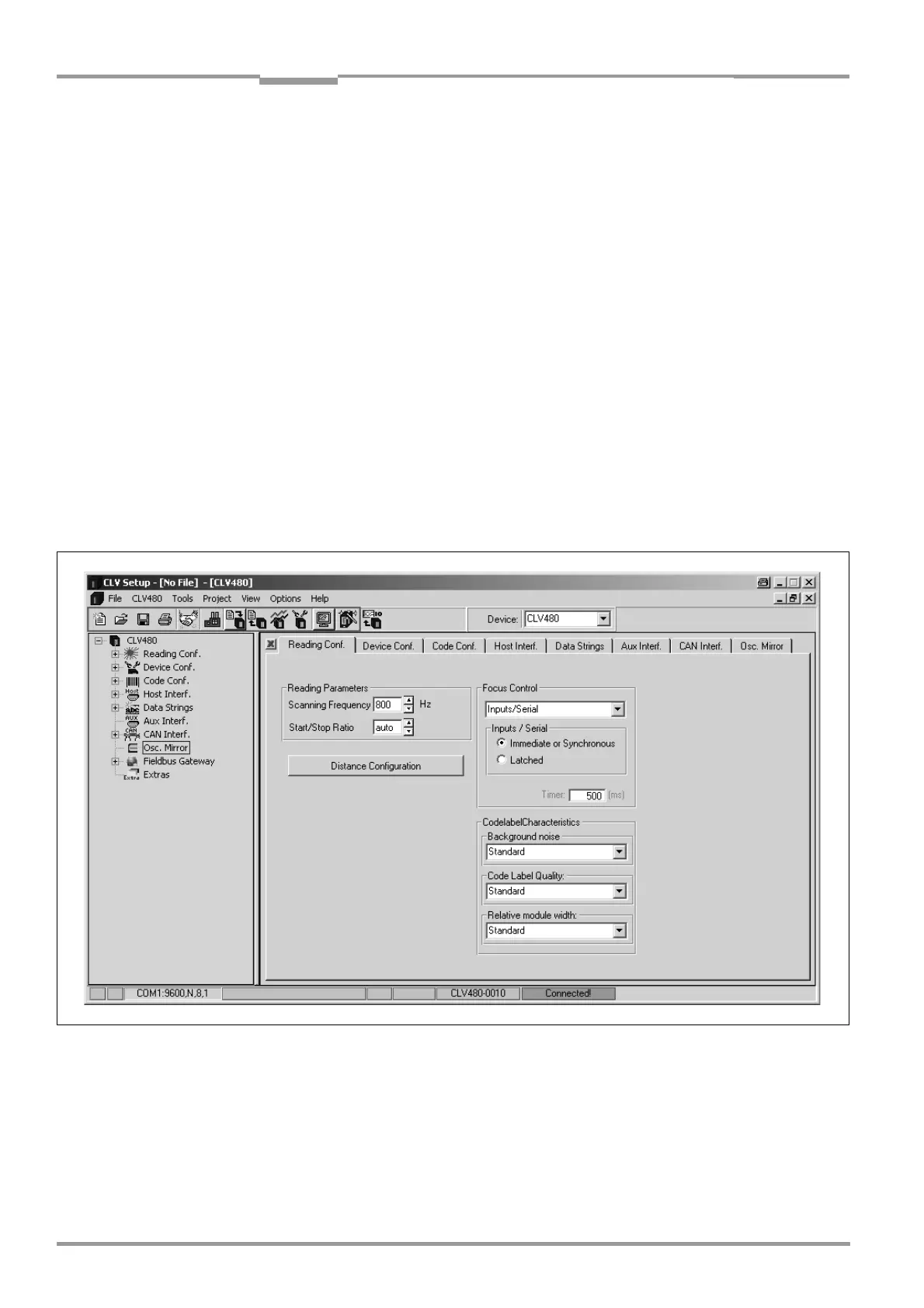

Fig. 10-27: User interface of the "CLV-Setup" software
