SICK CLV 480 - Reading Performance Data of Line Scanner with Oscillating Mirror

Operating Instructions Chapter 10
CLV 480 Bar Code Scanner
8 010 080/O824/10-02-2005 © SICK AG · Division Auto Ident · Germany · All rights reserved 10-13
Appendix
10.2.4 Reading performance data of line scanner with oscillating mirror

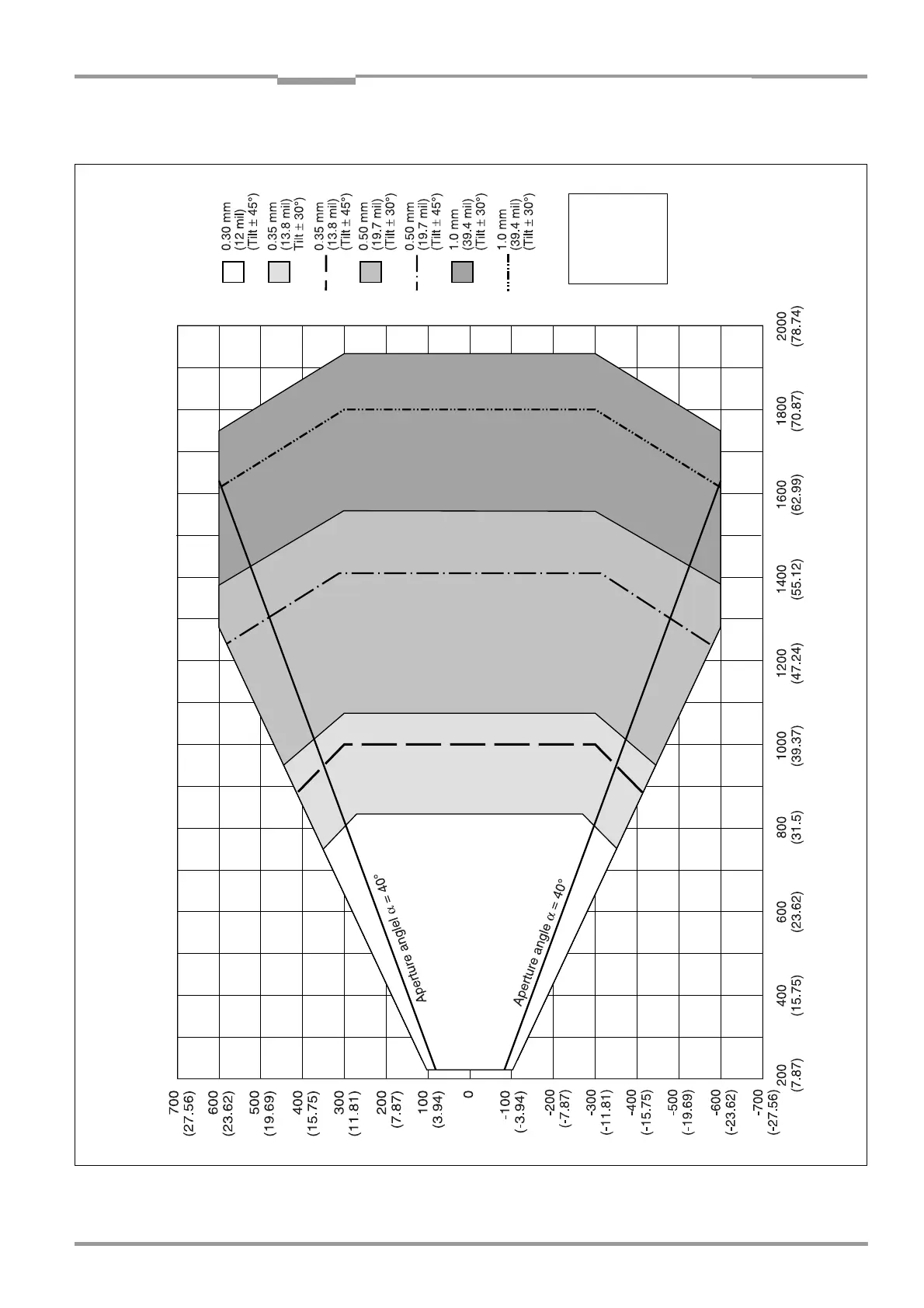

Fig. 10-12: CLV 480-1010/-1011 (line scanner with oscillating mirror): Reading field height as a function of the reading distance and
resolution
Line scanner with oscillating mirror (side reading window): CLV 480-1010/-1011
Reading conditions: see Table 10-1, Page 10-1
Reading field height
Reading distance
Resolution:
All dimensions in mm (in)
