Chapter 10 Operating Instructions
CLV 480 Bar Code Scanner
10-14 © SICK AG · Division Auto Ident · Germany · All rights reserved 8 010 080/O824/10-02-2005
Appendix

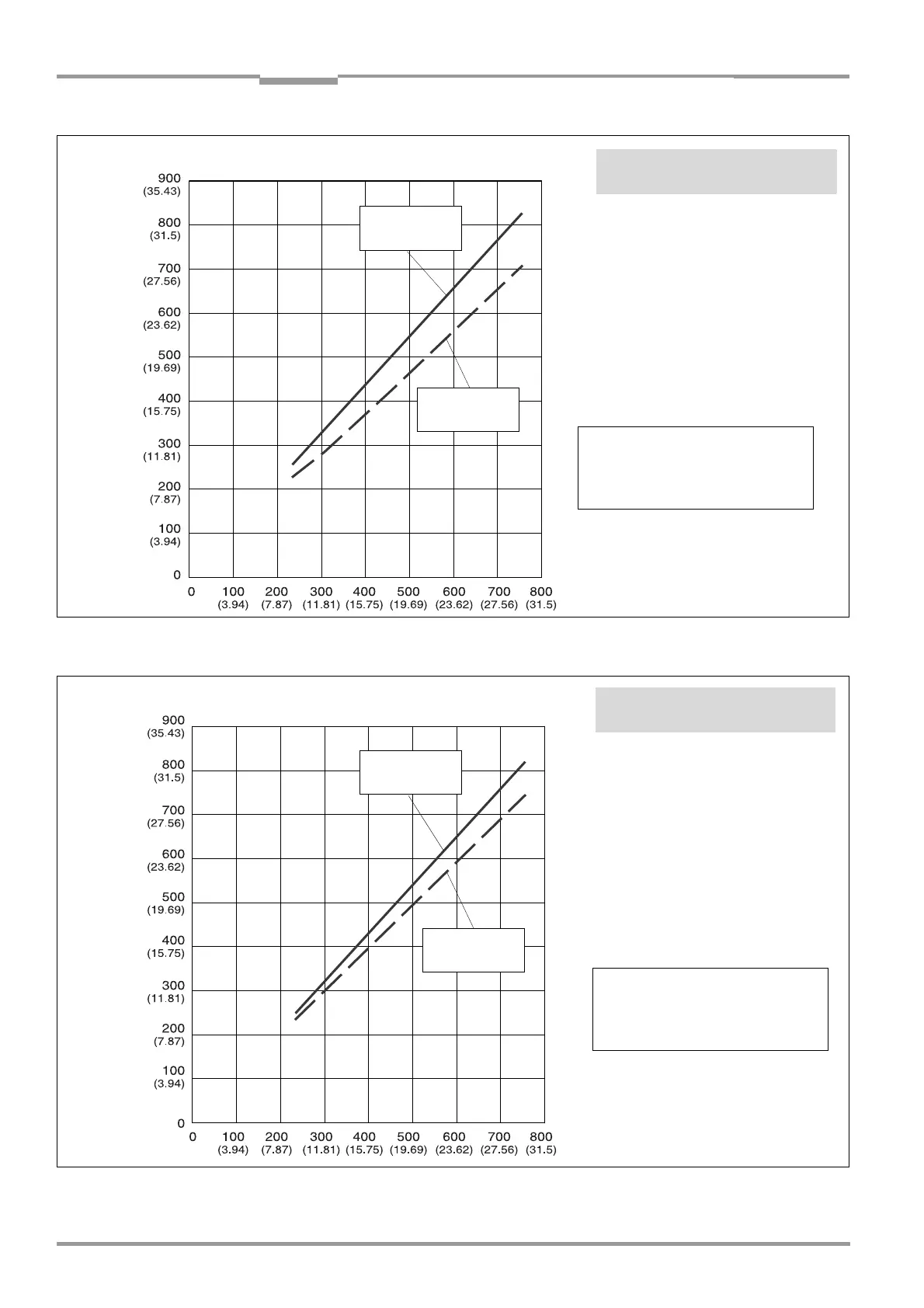

Fig. 10-13: CLV 480-1010/-1011 (line scanner with oscillating mirror): Min. and Max. radial reading distance as a function of the focus
position at a resolution of 0.30 mm (12 mil) and an aperture angle of 40°
Fig. 10-14: CLV 480-1010/-1011 (line scanner with oscillating mirror): Min. and Max. radial reading distance as a function of the focus
position at a resolution of 0.30 mm (12 mil) and an aperture angle of 50°
max. reading
distance
Line scanner with oscillating mirror (side reading window): CLV 480-1010/-1011
Radial
reading
distance
Reading conditions:
Scanning frequency 1,000 Hz
Tilt ±45°
See also Table 10-1, Page 10-1
Focus position
min. reading
distance
Resolution: 0.30 mm (12 mil)
Aperture angle: 40°
All dimensions in mm (in)
max. reading
distance
Line scanner with oscillating mirror (side reading window): CLV 480-1010
/
-1011
Focus position
min. reading
distance
Radial
reading
distance
Reading conditions:
Scanning frequency 1,000 Hz
Tilt ±45°
See also Table 10-1, Page 10-1
Resolution: 0.30 mm (12 mil)
Aperture angle: 50°
All dimensions in mm (in)
