Operating Instructions Chapter 10
CLV 480 Bar Code Scanner
8 010 080/O824/10-02-2005 © SICK AG · Division Auto Ident · Germany · All rights reserved 10-15
Appendix

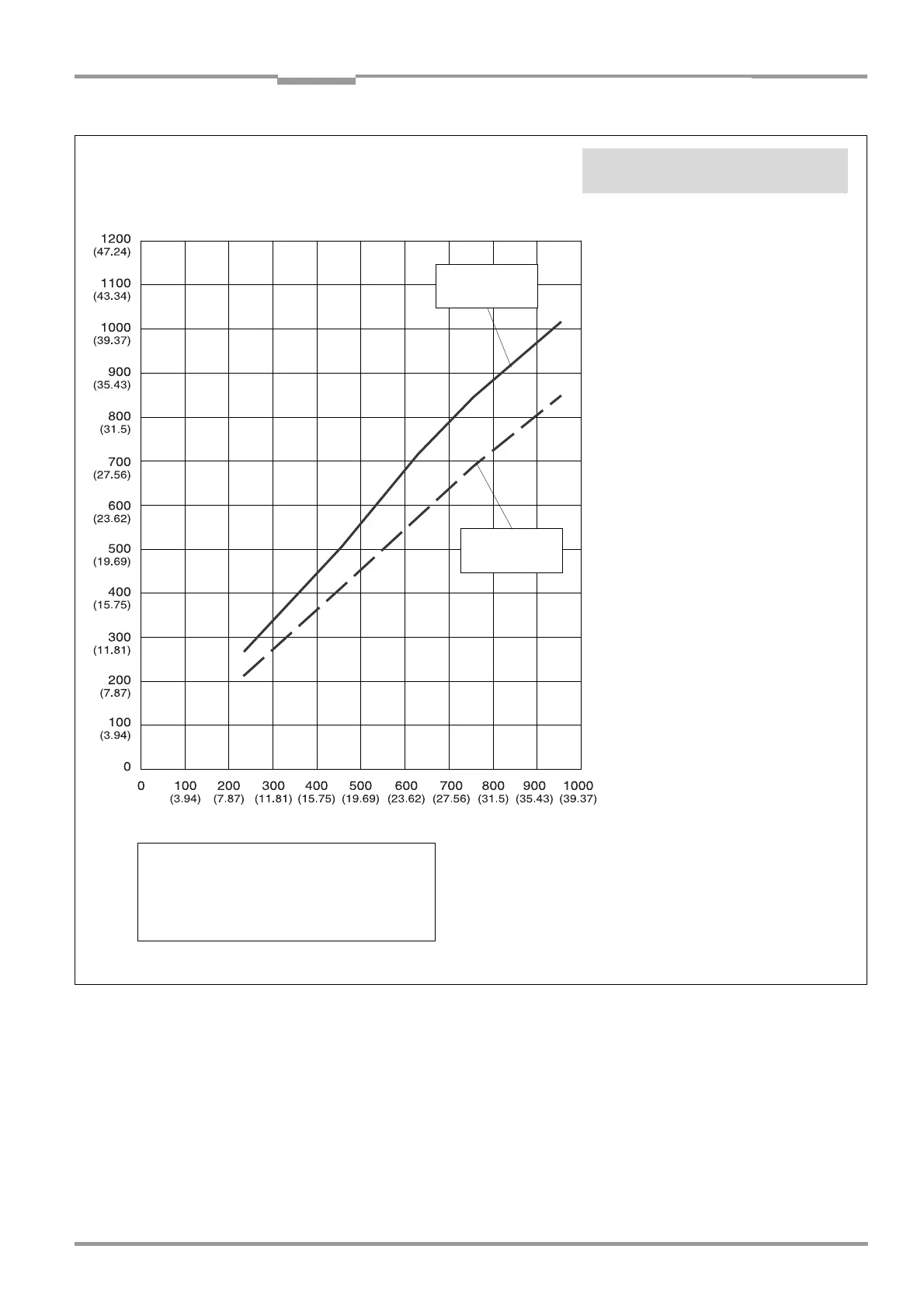

Fig. 10-15: CLV 480-1010/-1011 (line scanner with oscillating mirror): Min. and Max. radial reading distance as a function of the focus
position at a resolution of 0.35 mm (13.8 mil) and an aperture angle of 40°
Line scanner with oscillating mirror (side reading window):
CLV 480-1010/-1011
Radial reading distance
Focus position
min. reading
distance
max. reading
distance
Reading conditions:
Scanning frequency 1,000 Hz
Tilt ±45° up to focus position 890 mm (35 in)
Tilt ±30° up to focus position 960 mm (37.8 in)
See also Table 10-1, Page 10-1
Resolution: 0.35 mm (13.8 mil)
Aperture angle: 40°
All dimensions in mm (in)
