Chapter 6 Operating Instructions
CLV 480 Bar Code Scanner
6-38 © SICK AG · Division Auto Ident · Germany · All rights reserved 8 010 080/O824/10-02-2005
Operation
Note If a large amount of data is being read in at high speed and with a high transmission rate,
the host interface’s data trafficing may no longer be completely displayed on the terminal
interface (display "..."). This is due to the slower transmission rate of the terminal interface
(9
600 bd).
In the default setting, the CLV sends the following in the data output string of the host inter-
face:
• for Good Read: Data contents of one bar code
• for No Read: The string "NOREAD"
The "Header", "Code Info/Separator", "Splitter" und "Terminator" blocks are blank.
Tip
The structure of the data output string of the host interface can be configured via the DATA
S
TRINGS tab.
• Up to 10 elements, consisting of constants (letters, digits, control characters) and/or
reading diagnosis data, can be entered in the "Header", "Code Info/Separator",
"Splitter" und "Terminator" blocks.
• Up to 5 elements, consisting of constants (letters, digits, control characters) can be
entered in the "Splitter" blocks.
• The position of the "Code Info/Separator" block can be choosen before or after the
code.
1. Choose the DATA STRINGS tab.
2. Click the HEADER field.
The EDIT PARAMETER: TFH dialog box is then displayed.
3. Click the desired constants or placeholders for the reading diagnosis data.
The selected elements appear in the text box at the top of the dialog box in the
sequence in which they were selected.
4. Confirm the entries made by clicking OK.
5. Repeat this procedure for the "Code-Info/Separator", "Splitter" und "Terminator"
blocks
.

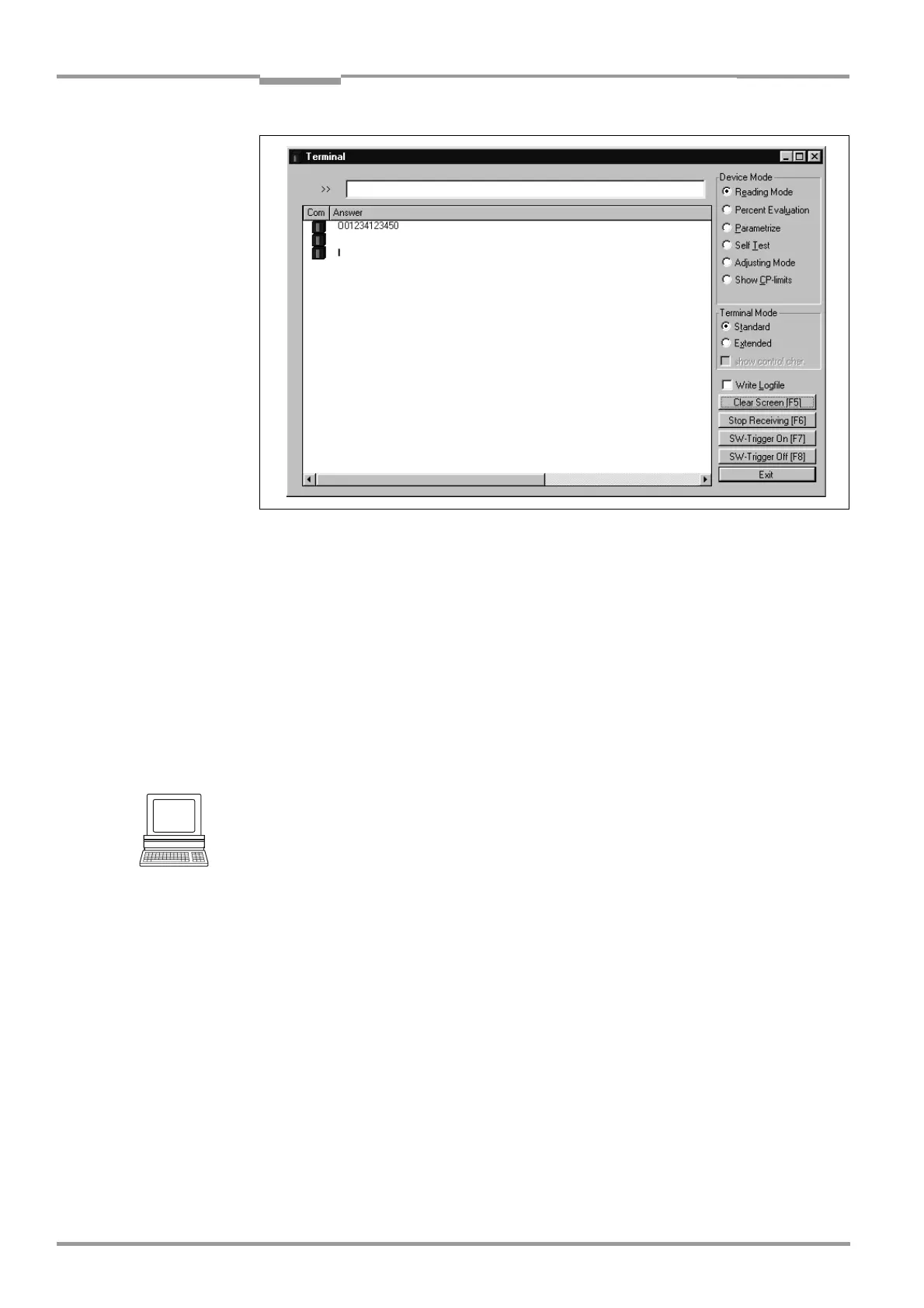

Fig. 6-13: CLV-Setup: Displaying the reading result of the host interface in the Terminal Emulator
with direction identifier at the beginning (in this case: O = Output)
