Operating Instructions Chapter 5
CLV 480 Bar Code Scanner
8 010 080/O824/10-02-2005 © SICK AG · Division Auto Ident · Germany · All rights reserved 5-17
Electrical installation
3. Switch on the PC and power supply to the SICK Connection Module.
4. Set the communication parameters (see Chapter 10.6.3 Starting CLV-Setup,
Page 10-32).
Tip
In the default configuration, the terminal interface outputs the reading result in reading
diagnosis mode.
You can change the operating mode to MONITOR HOST INTERFACE, to MONITOR HOST INTERFACE 2,
A
UXILIARY INPUT or EXTERNAL DATA STRING INPUT on the AUXILARY INTERFACE tab in the "CLV-
Setup" program.
5.5.7 Connecting the "Sensor" switching input
If a reading procedure is to be triggered on the CLV by an external sensor, the reading pulse
sensor must be connected to the "Sensor" switching input. This trigger type is selected in
the default setting of the CLV.
Fig. 5-4 shows the connections for the "Sensor" switching in-
put. Table 5-17 contains the characteristic data for this input.
¾ Connect the reading pulse sensor as shown in Fig. 5-4.
Tip
You can change the switching mode (polarity, debouncing, response for first pulse after po-
wer-up) of the "SENSOR" switching input on the DEVICE CONFIGURATION tab in the "CLV-Setup"
program.
¾ Click the READING TRIGGER PARAMETERS button.
Enter the values in the dialog box displayed. Download all changes to CLV.

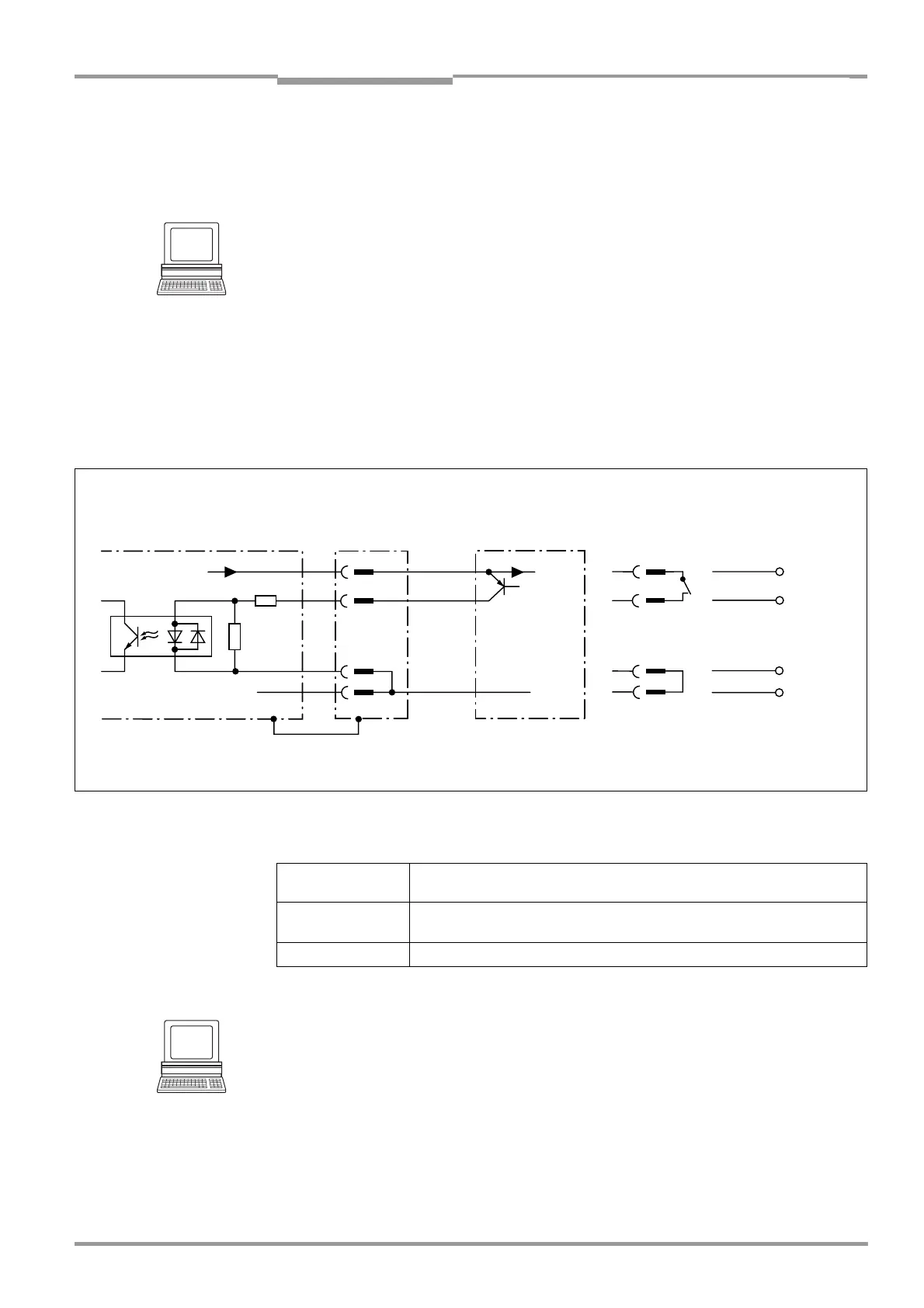

Fig. 5-4: Connections of the "Sensor" switching input
Sensor
IN GND
GND
GND
GND
OUT
2k6
1
3
9
5
SENSOR
V
S
/ 24 V
(IN) GND
GND
1
3
9
5
V
S
V
S
V
S
V
S
CLV
V
S
= +18 to +30 V DC for CLV without heater, 24 V DC +20 % /–10 % for CLV with heater
AMV 60-011/
AMS 60-012, -013
Terminal assignment
Switch
PNP sensor
T. 27
T. 19
T. 20
T. 36
Switching mode Current at the input starts the reading interval on the CLV.
(default: active high, debouncing: max. 30 ms (standard))
Properties – optodecoupled, non-interchangeable
– can be connected to PNP output on a sensor
Electrical values
Low: –30 V ≤ V
I
≤ +2 V High: +7 V ≤ V
I
≤ +13 V
Table 5-17: Characteristic data of the "Sensor" switching input
