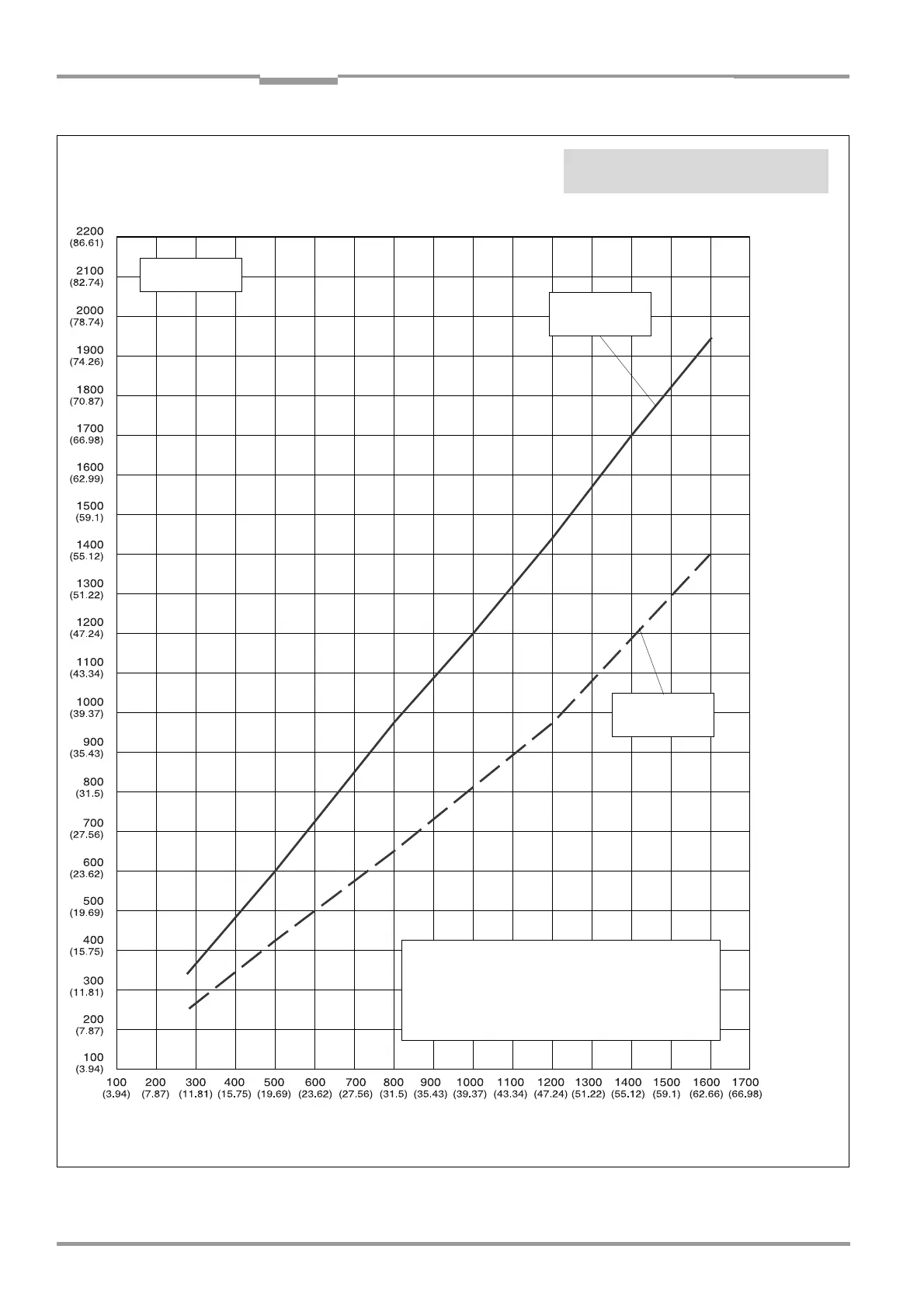

Fig. 10-11: CLV 480-0010/-0011 (line scanner): Min. and Max. radial reading distance as a function of the focus position at a
resolution of 1.00 mm (39.4 mil) and an aperture angle of 60°
Line scanner (front reading window): CLV 480-0010/-0011
Radial reading distance
Focus position
max. reading
distance
min. reading
distance
Reading conditions:
Scanning frequency 1,000 Hz
Tilt ±45° up to focus position 1,400 mm (55.1 in)
Tilt ±30° up to focus position 1,600 mm (70 in)
See also Table 10-1, Page 10-1
Typical values!
Resolution: 1.00 mm (39.4 mil)
Aperture angle: 60°
All dimensions in mm (in)
