Scanning range of the reference contour field
T
he effective scanning range of the reference contour field is the same as the protec‐
tive field range.
Scanning range of the contour detection field
T
he effective scanning range of the contour detection field is the same as the protective
field range.
Range for warning fields
F
or non-safety applications (warning fields), the safety laser scanner has a larger scan‐
ning range than the maximum protective field range. The requirements for size and
remission of objects to be detected are illustrated in the following graphs as a function
of the desired scanning range.
5 10 20 50 D [m]
d [mm]
1000
500
200
100
50
20
10
2
1

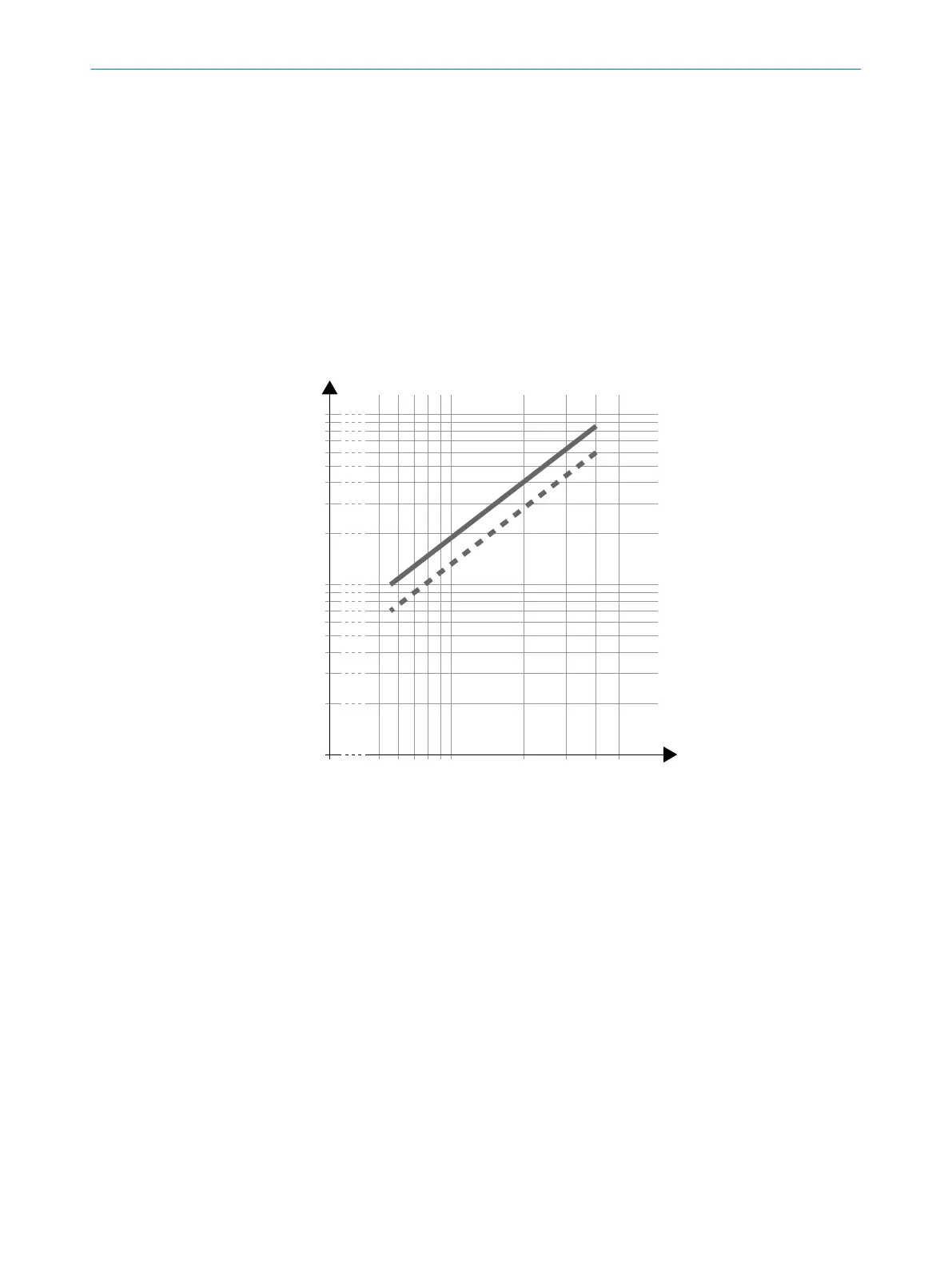

Figure 94: Scanning range and object size for warning fields (devices with a max. protective field
r
ange of 4.0 m and devices with max. protective field range of 5.5 m)
d Required minimum size of the object in mm
D Range in m
1
Scan cycle time = 30 ms
2
Scan cycle time = 40 ms
13 T
ECHNICAL DATA
174
O P E R A T I N G I N S T R U C T I O N S | microScan3 – PROFINET 8021219/1ELL/2022-01-21 | SICK
Subject to change without notice
