SICK microScan3

≥ 2°

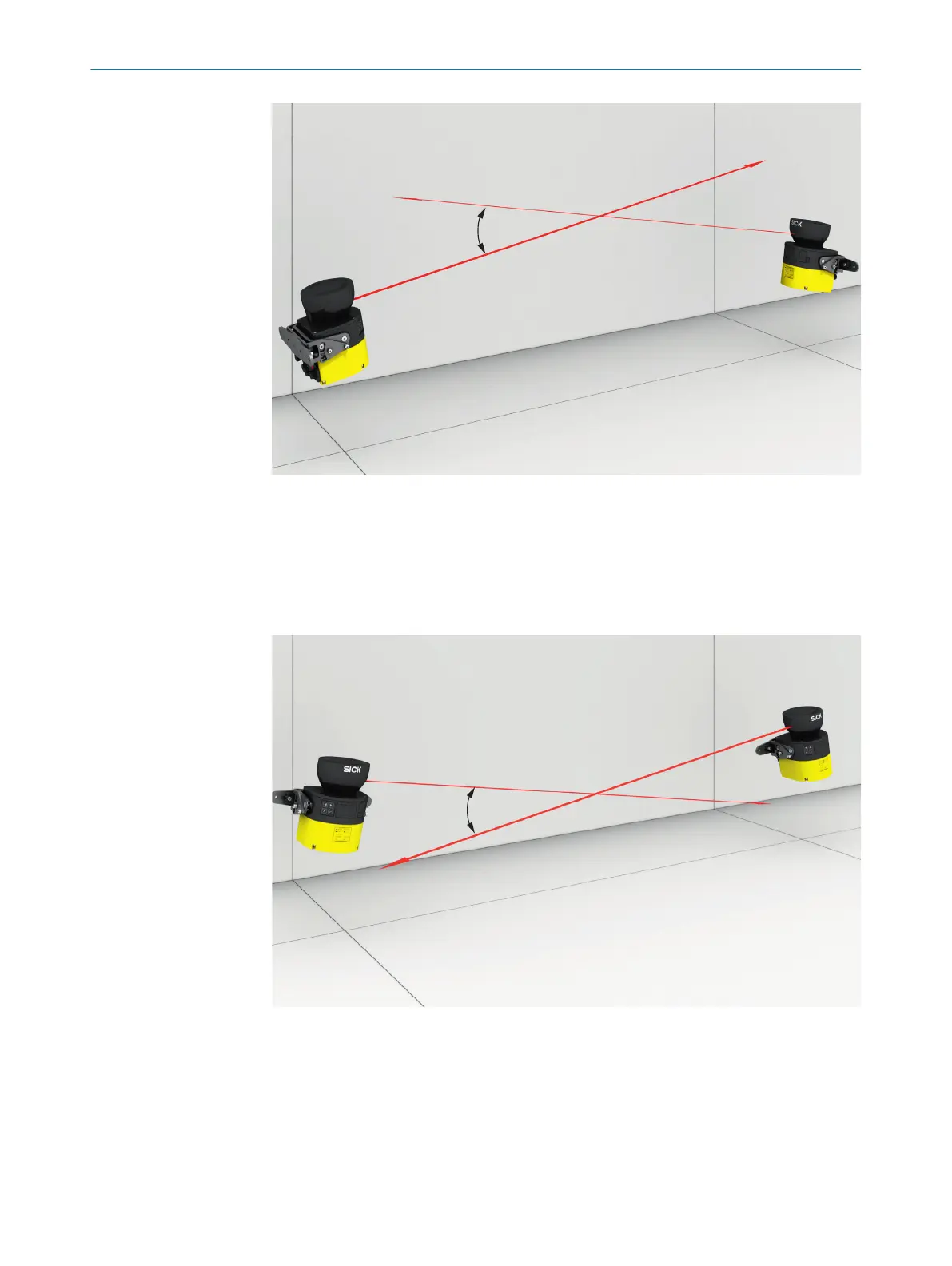

Figure 105: Mounting 2 safety laser scanners opposite one another
If you tilt neighboring safety laser scanners toward one another, the safety laser scan‐
ners can be tilted upward or downward.
In any event, ensure that the protective field is at the right height so that crawling
beneath and climbing over are prevented and so that the set resolution matches the
mounting height.
≥ 2°
Figure 106: Mounting 2 safety laser scanners next to one another
