The following mounting method has the advantage that both safety laser scanners can
be mount
ed at a similar height. Nonetheless, there is enough space between the scan
planes.
≥ 100 mm

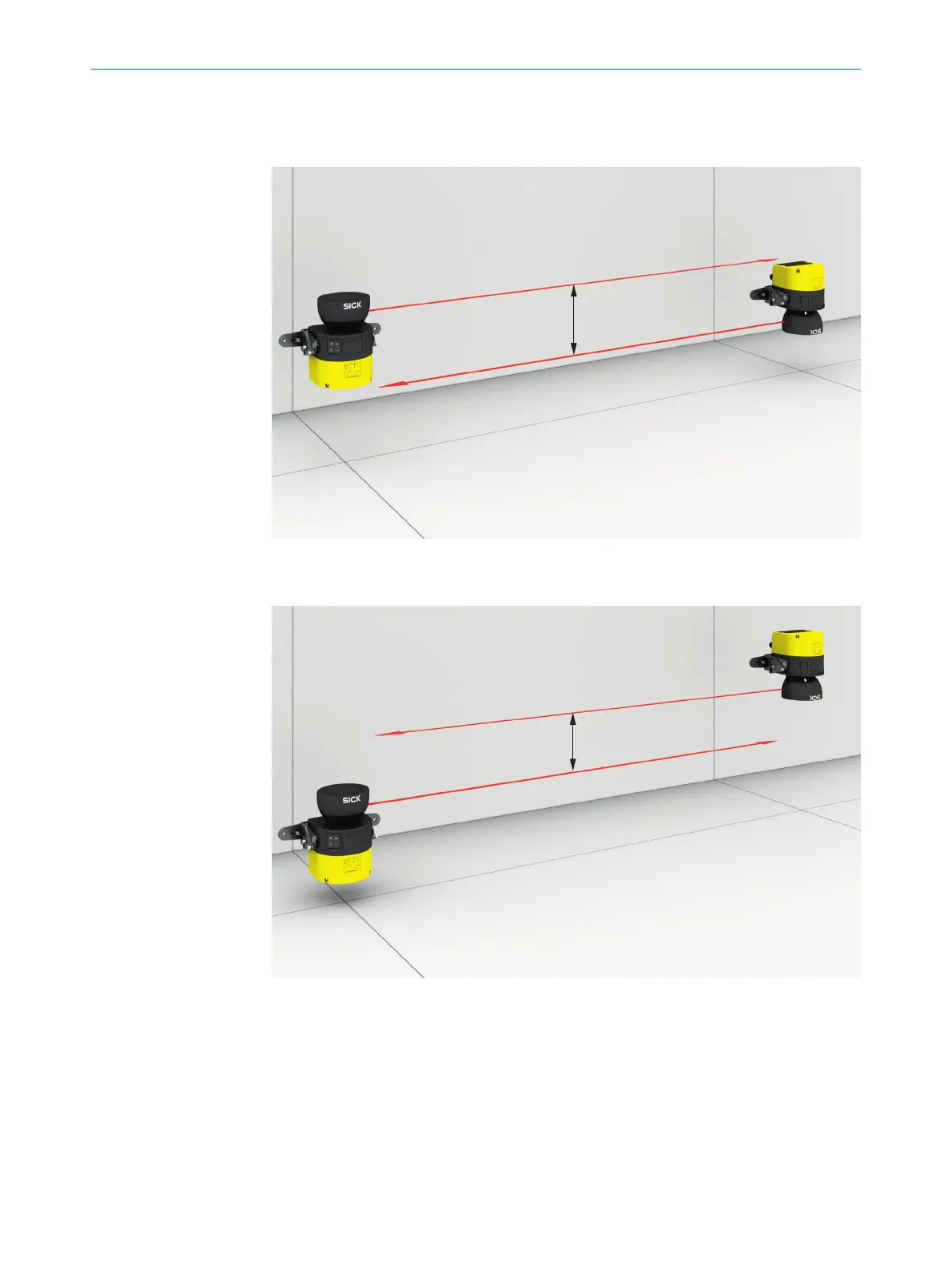

Figure 103: Mounting the upper safety laser scanner with the optics cover facing upward and
mounting the lower safety laser scanner with the optics cover facing downward
≥ 100 mm
Figure 104: Mounting the upper safety laser scanner with the optics cover facing downward and
mount
ing the lower safety laser scanner with the optics cover facing upward
Mount several safety laser scanners crosswise
If y
ou tilt opposite safety laser scanners with respect to one another, both safety laser
scanners must be tilted upward. (If mounted upside down, both safety laser scanners
must be tilted downward.)
In any event, ensure that the protective field is at the right height so that crawling
beneath and climbing over are prevented and so that the set resolution matches the
mounting height.
18 ANNE
X
202
O P E R A T I N G I N S T R U C T I O N S | microScan3 – PROFINET 8021219/1ELL/2022-01-21 | SICK
Subject to change without notice

SICK microScan3 Specifications

General

Scanning angle	275°
Power supply	24 V DC
Supply voltage	24 V DC ± 20%
Enclosure rating	IP65
Resolution	70 mm
Protective field range	5.5 m
Number of fields	128
Interface	Ethernet
Safety integrity level	SIL3
Performance level	PL e
Ambient temperature	+50°C
Scanning range	5.5 m
