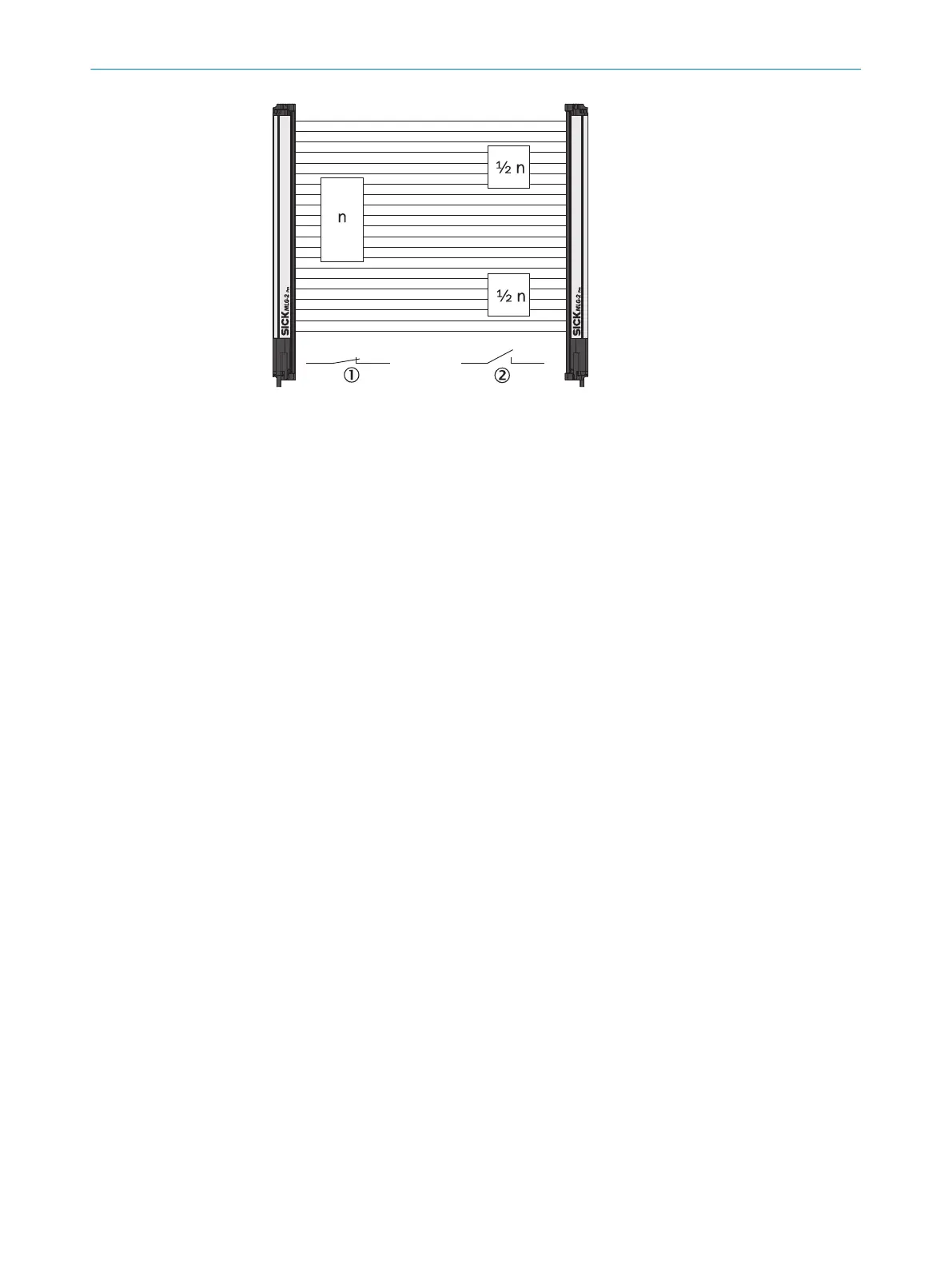

Figure 74: Object detection of consecutive objects
1
Criterion met
2
Criterion not met
The output becomes active when consecutive beams are covered. If this option is not
activated, the number of blocked beams can also be made up of several objects or
objects with gaps.
Zone selection
For additional information, see "“Zone measuring” function", page 85 .
Output settings
General options for switching outputs see "Advanced settings for the outputs",
page 84.
7.4.4 Hole detection/hole size
A switching output switches when an object with a hole of a particular size is present in
the detection area.
A corresponding setting is configured which requires a certain number of beams or a
certain number of consecutive beams to be made.
The number of beams is configured in the settings.
The measuring function can be used for hole detection, e.g., in a metal sheet, by con‐
figuring a number of made beams ≥.1.
b
Select one of the following settings for the hole detection and enter the number of
beams n:
CONFIGURATION WITH SOPAS ET 7
8017460.ZIK1/2017-02-13 | SICK O P E R A T I N G I N S T R U C T I O N S | MLG-2 Pro
73
Subject to change without notice
