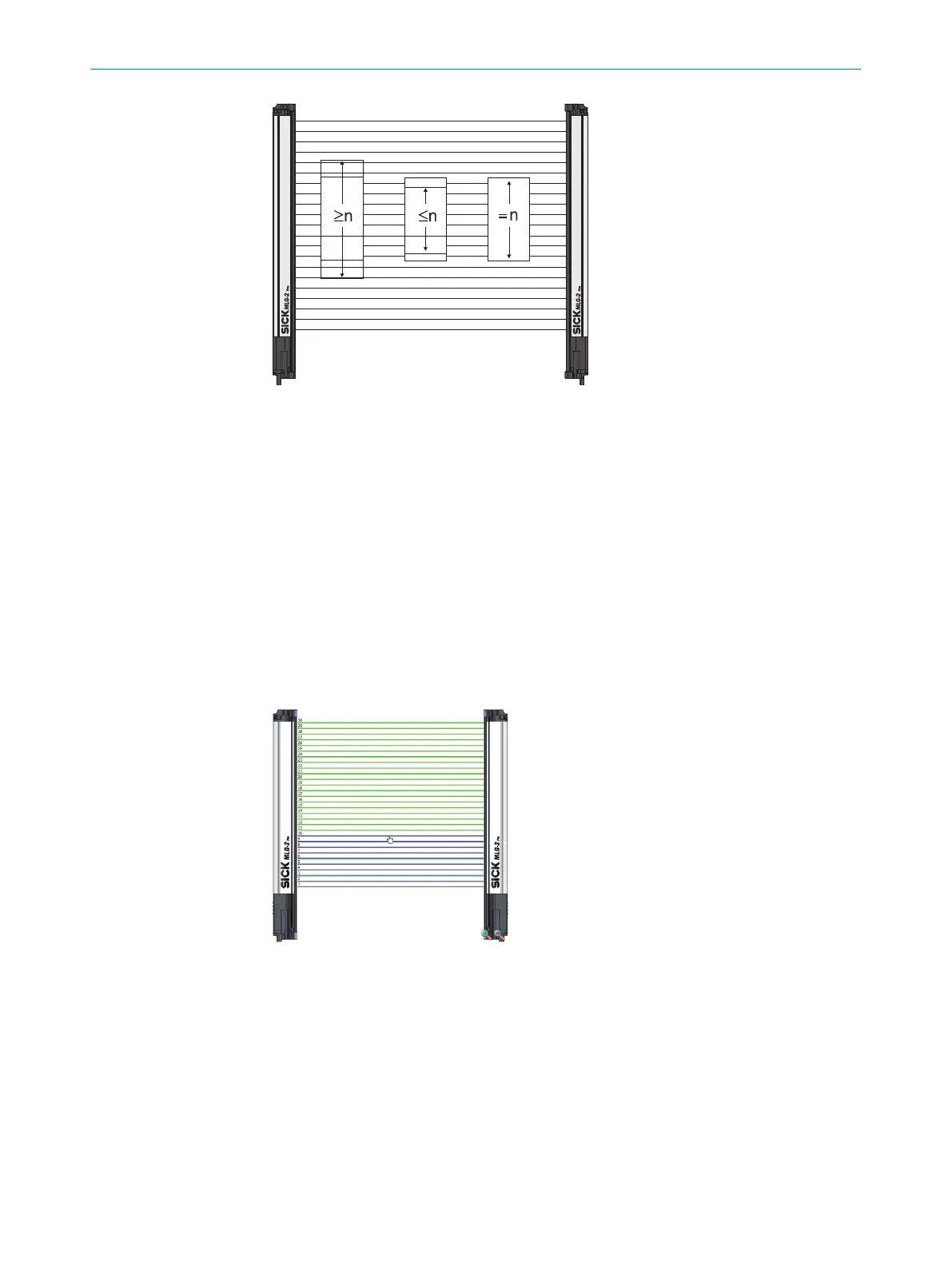

Figure 72: Object detection/object width
b
Select one of the following n settings for the object detection/object width and
enter the number of beams n:
•
≥n object is greater than or equal to n beams::
The output becomes active if the configured number of beams or more were cov‐
ered.
•
≤n object is less than or equal to n beams:
The output becomes active if the configured number of beams or less were cov‐
ered.
•
= n object is equal to n beams:
The output becomes active if precisely the configured number of beams were cov‐
ered.
The object size that has been set is shown in the Simulation area. It can be changed
using the mouse.
Figure 73: Setting the object size with the mouse
Only take into account consecutive beams:
